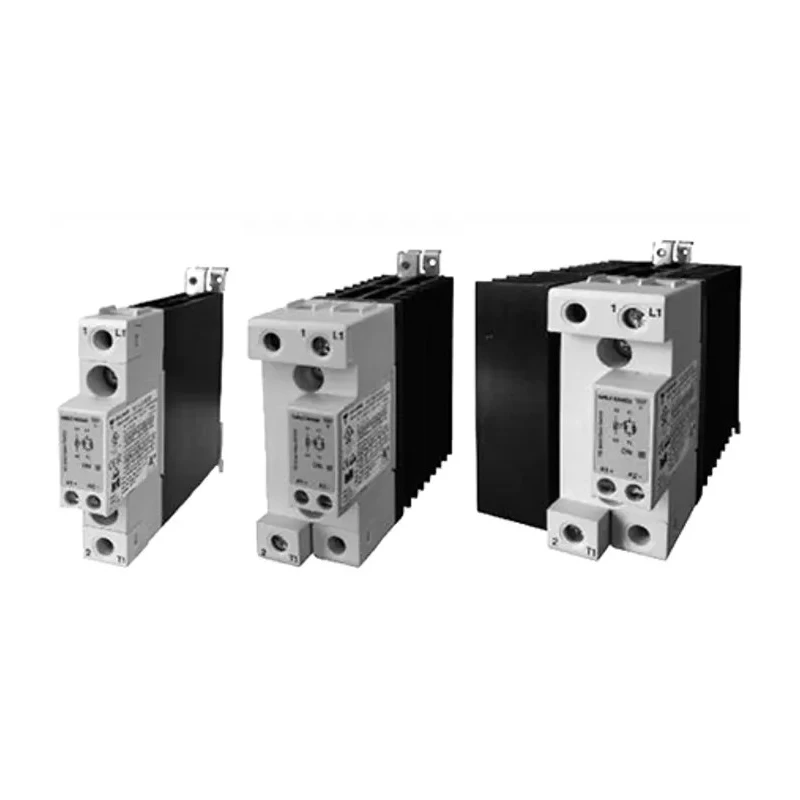

Carlo Gavazzi RGC Series Solid State Relay 47 A Load, DIN Rail Mount, 600 V AC Load, 32V Control RGC1A60D40KGU

Carlo Gavazzi RGC1A60D40KGU Solid State Relay is engineered for reliable industrial automation applications requiring robust load switching capabilities up to 47 A. The DIN rail mount design facilitates simple panel integration and space efficiency with a narrow 17.5 mm width compared to traditional contactors.

This RGC series relay supports a maximum load voltage of 600 V AC and ensures precise control using a low voltage control range of 4 V to 32 V. Its zero cross switching function minimizes electrical noise disturbances during operation, improving system reliability.

Featuring screw terminals and an IP20 ingress protection rating, the relay offers secure electrical connections and adequate protection against solid objects in industrial environments. The integrated varistor provides voltage transient suppression, safeguarding sensitive components downstream.

The device is suitable for extreme environmental conditions with operational temperatures ranging from -40°C to 80°C and a short circuit current rating of 100 kA, ensuring fault tolerance in demanding applications.

Its compliance with a broad set of international industry standards including EAC, RoHS, CE, cULus, EE, VDE, UL, and UKCA underscores its quality and safety. The compact form factor with dimensions of 125 mm height, 110 mm length, and 70 mm width allows for maximized panel use while maintaining performance.

This solid state relay is ideal for industrial automation, electrical control panels, HVAC systems, manufacturing lines, and other commercial or industrial equipment requiring solid state switching for AC loads.

The solid state relay supports up to 600 V AC maximum load voltage. The relay operates with control voltage ranging from 4V minimum to 32V maximum. Zero cross switching function reduces electrical noise during switching.

Built to IP20 rating for protection against solid object intrusion. Equipped with screw terminals for secure electrical connections. The device features varistor output type for transient voltage protection. Designed to operate within temperature range from -40°C to 80°C.

Compact dimensions of 125mm height, 110mm length, and 70mm width maximise panel space. Short circuit current rating is 100 kA ensuring high fault tolerance. Complies with EAC, RoHS, CE, cULus, EE, VDE, UL, and UKCA safety standards.
