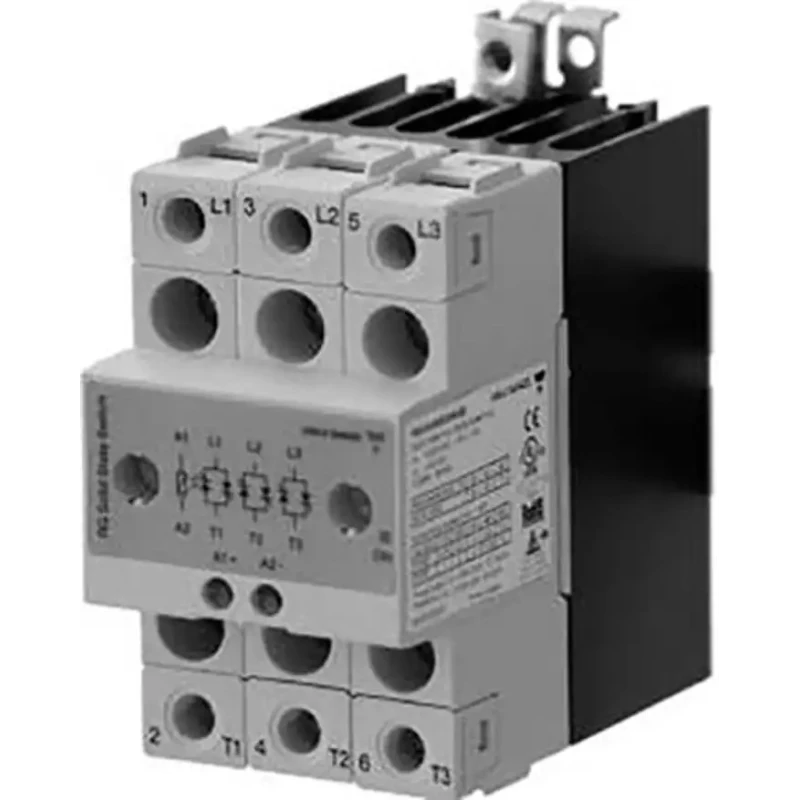

Carlo Gavazzi RGC Series Solid State Relay, 20 A Load, DIN Rail Mount, 660 V AC Load, 275 V AC Control RGC3A60A20KKE

Free Delivery in India | Lowest Global Shipping Charges

Carlo Gavazzi RGC Series Solid State Relay, 20 A Load, DIN Rail Mount, 660 V AC Load, 275 V AC Control RGC3A60A20KKE

Name: Carlo Gavazzi RGC Series Solid State Relay, 20 A Load, DIN Rail Mount, 660 V AC Load, 275 V AC Control RGC3A60A20KKE
Brand: Carlo Gavazzi
SKU: 258666
Price: 334.28 USD
Availability: InStock



Category Solid State Contactor Brand Carlo Gavazzi Condition New

Specifications

Country of Origin	India
Brand	Carlo Gavazzi
Height	110mm
Length	54mm
Model	RGC3A60A20KKE
IP Rating	IP20
Width	70mm
Mount Type	DIN Rail
Output type	Varistor
Series	RGC
Maximum Operating Temperature	80°C
Contact Configuration	3PST
Minimum Operating Temperature	-40°C
Terminal type	Screw
Switching Function	Zero Cross Switching
Maximum Load Current	20A
Standards/Approvals	UL, UKCA, RoHS, EE, EAC, cULus, CE, VDE
Maximum Load Voltage	660V ac
Minimum Load Voltage	42V ac
Minimum Control Voltage	20V ac
Maximum Control Voltage	275V ac
Off State Leakage Current	5mA
Short circuit current rating	100 kA

Key Features

Designed for panel space saving with a slim 17.5 mm width.
Equipped with integrated voltage transient protection using a varistor.
Features zero cross switching for reduced electrical noise and increased reliability.
Rated for short circuit current of up to 100 kA, ensuring robust protection.
IP20 rated ingress protection suitable for industrial environments.
Safe looping of cables possible with separate power and control terminals.
Operating temperature range from -40°C to 80°C for versatile industrial applications.
Contact configuration is 3-Pole Single Throw (3PST) with screw terminals.

Product Description

Carlo Gavazzi RGC3A60A20KKE Solid State Relay from the RGC series is designed for industrial and automation applications requiring reliable switching of AC loads up to 20 A. Featuring a compact design with DIN rail mounting, it maximizes panel space efficiency with only 17.5 mm width.

This relay supports a maximum load voltage of 660 V AC and control voltages up to 275 V AC, suitable for a broad range of control systems. Its zero cross switching mechanism minimizes electrical noise and enhances the longevity of connected equipment. Integrated voltage transient protection via a varistor safeguards the relay and the system from voltage spikes.

The device offers robust industrial performance with short circuit current rating at 100 kA and an ingress protection rating of IP20. Operating safely in temperature extremes from -40°C up to 80°C, it fits varied environmental conditions. The 3-Pole Single Throw (3PST) contact configuration with screw terminal connections ensures secure wiring and stable operation.

Compliance with internationally recognized standards including UL, UKCA, RoHS, EE, EAC, cULus, CE, and VDE provides assured quality and safety. The low off-state leakage current of 5 mA contributes to efficient energy use when the relay is inactive.

This Solid State Contactor is ideal for industrial automation, HVAC systems, electrical panels, manufacturing processes, and other heavy-duty AC load control applications. It supports safe cable looping through segregated power and control terminals, facilitating ease of installation and maintenance.

The package contains a Carlo Gavazzi RGC Series Solid State Relay model RGC3A60A20KKE with DIN rail mounting capability for quick assembly in control panels. Explore the Carlo Gavazzi category for more reliable solid state relays and contactors on EnvMart, tailored for advanced electrical and automation solutions.
