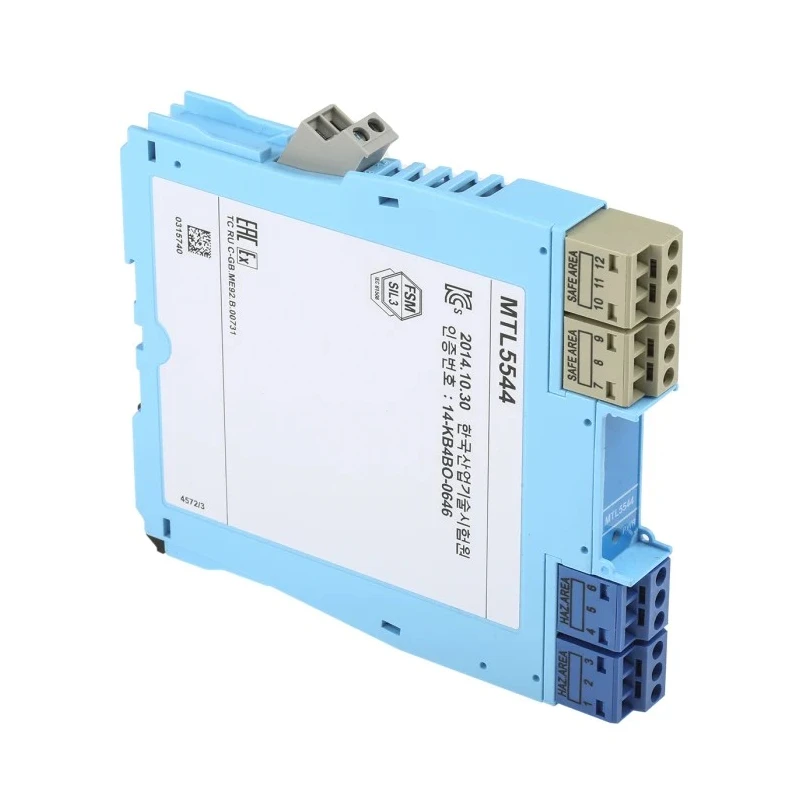

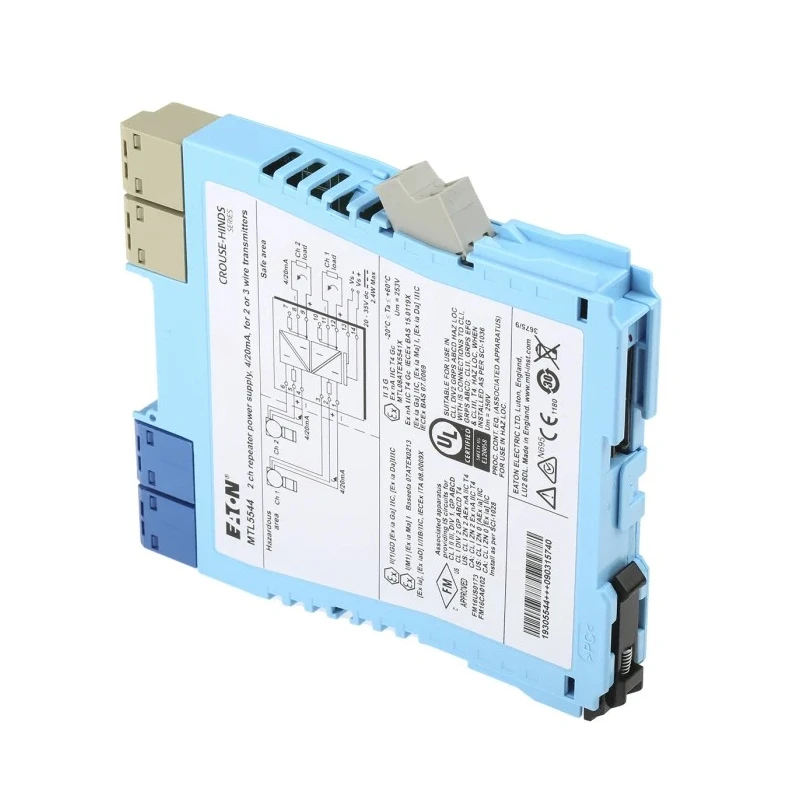

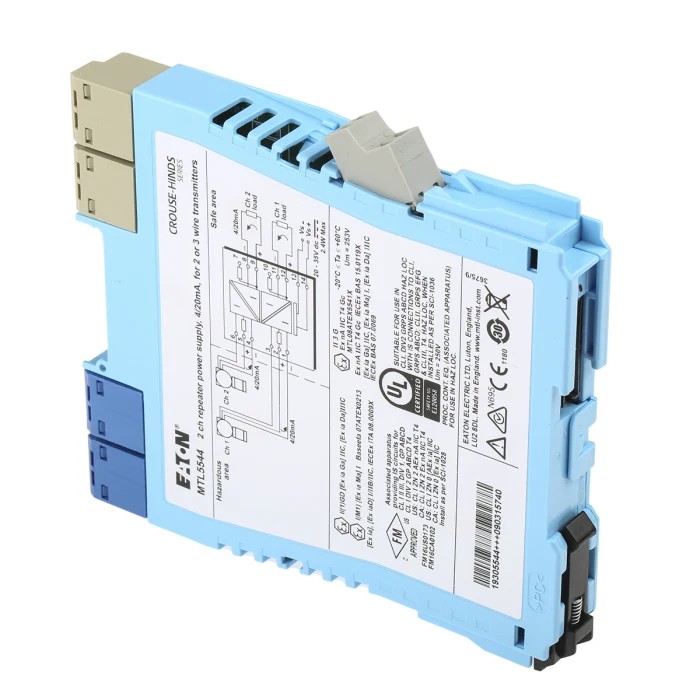

Eaton 2 Channel Zener Barrier Galvanic Barrier DIN Rail Mount ATEX Certified MTL5544
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Model | MTL5544 |
| IP Rating | IP54 |
| Mount Type | DIN Rail |
| Series | MTL5544 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 2 |
| Supply Voltage | 20, 35V dc |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | EN, ATEX, IEC |
| Barrier Type | Galvanic Barrier |
| Maximum Safety Current | 93mA |
| Maximum Safety Voltage | 28V |
| MTL 2 Channel Galvanic BarrierBrand | MTL |
| Eaton Zener Barrier, ATEXBrand | Eaton |
Key Features
- The barrier supports two independent channels for safe signal transmission.
- Certified to ATEX standards for hazardous environments.
- Compact DIN rail mounting for convenient installation.
- Screw type terminals ensure secure electrical connections.
- Supply voltage range includes 20V to 35V DC for versatile applications.
- IP54 rating offers protection against dust and water ingress.
- Maximum safety current rated at 93mA with 28V maximum safety voltage.
- Operating temperature range from -20°C to 60°C enables wide environmental use.
Product Description
Eaton MTL5544 2 Channel Zener Barrier galvanic barrier is engineered to provide safe energy transfer from hazardous to safe zones, suitable for intrinsic safety and control instrumentation systems.
This device supports two channels for signal loads, operating at 20 to 35 V DC supply voltage with low power dissipation of approximately 1.4 W. It includes rugged construction and DIN rail mounting, making it ideal for use in industrial process control, manufacturing, water treatment, and hazardous area instrumentation.
The unit features screw terminals for secure connections and an IP54 protection rating to guard against contaminants. It operates safely within temperatures of -20°C to 60°C and meets multiple standards including EN, ATEX, and IEC for hazardous area certification.
The MTL5544 supports HART communication protocols and incorporates three-port galvanic isolation for enhanced safety. Its compact 16 mm width facilitates high packing density in control panels. The design includes resistor, Zener diode, and fuse circuitry to limit current, manage voltage surges, and protect against short circuits.
The barrier supports two independent signal channels for flexible monitoring. ATEX and IECEx certifications endorse use in explosive atmospheres. DIN rail mounting simplifies installation and maintenance. Low power consumption improves system efficiency.
Backward compatibility with MTL5000 series enhances retrofit options. IP54 rating ensures dust and splash water protection. Screw terminals provide reliable and secure wiring connections. Operating temperature range suitable for diverse industrial environments.
Green LED indicator for clear operational status. Robust design ensures durability in demanding hazardous zones.
This Eaton MTL5544 barrier is ideal for industrial automation, process control, manufacturing, water and wastewater treatment, and other applications requiring intrinsic safety signal isolation.
Explore the range of Eaton signal conditioners, relays, and protective devices offered for hazardous area instrumentation and safety compliance on EnvMart.
Explore more products in our Signal Conditioners & Isolators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MTL5544 operates with a supply voltage range of 20V to 35V DC.
The maximum safety current for this unit is rated at 93mA, with a maximum safety voltage of 28V.
This model operates within a temperature range of -20°C to 60°C.
It provides safe energy transfer through three-port galvanic isolation and is certified for use in hazardous areas under ATEX and IECEx standards.
The unit is designed for DIN rail mounting, allowing for convenient installation in control panels.
The MTL5544 features screw type terminals for secure electrical connections.
This galvanic barrier has an IP54 rating, providing protection against dust and splash water.
It supports two independent channels for signal loads.
The unit meets multiple standards including EN, ATEX, and IEC for hazardous area certification.
It is ideal for industrial automation, process control, manufacturing, and water treatment applications requiring intrinsic safety.
Yes, the MTL5544 supports HART communication protocols for enhanced functionality in signal transmission.
The design includes resistor, Zener diode, and fuse circuitry to limit current and manage voltage surges, ensuring safety during operation.
