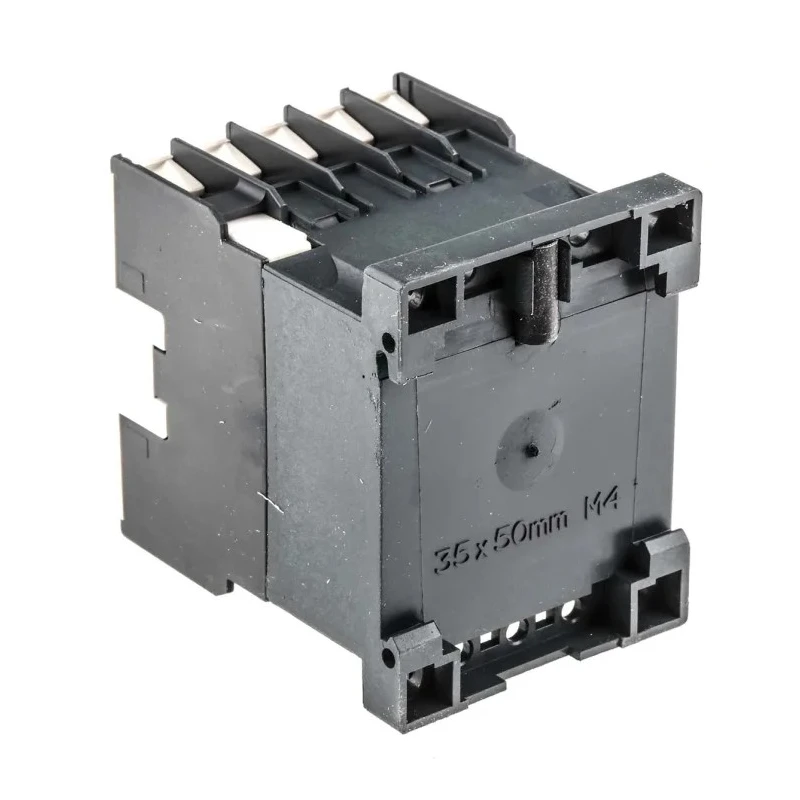

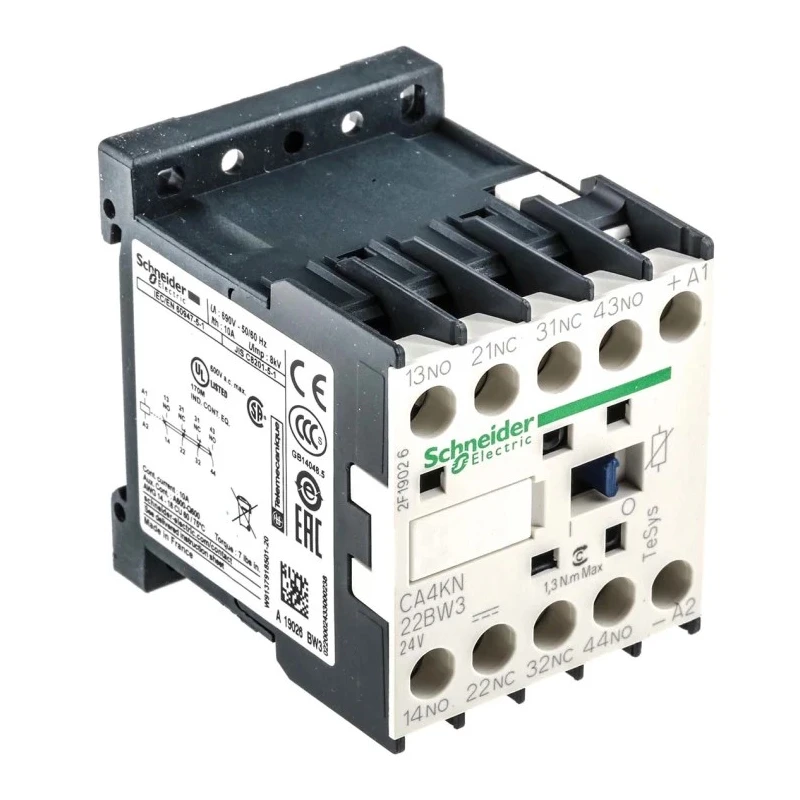

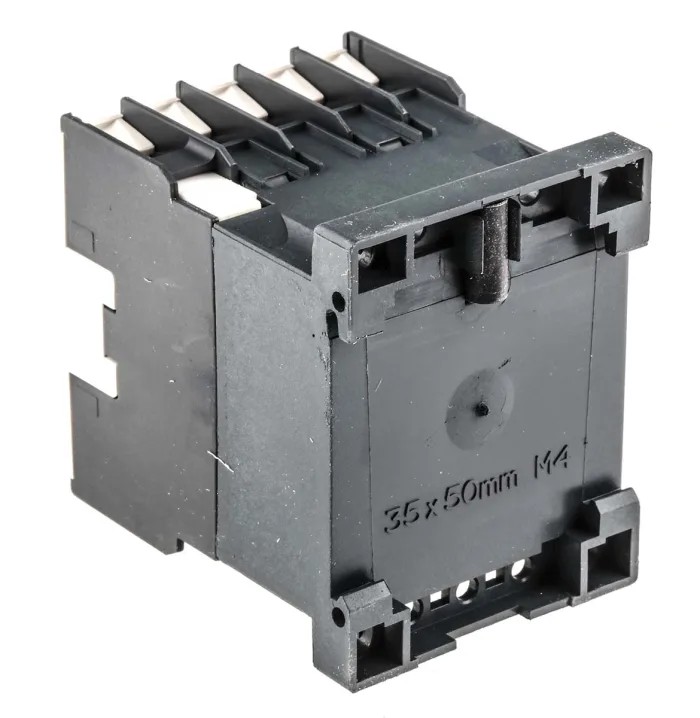

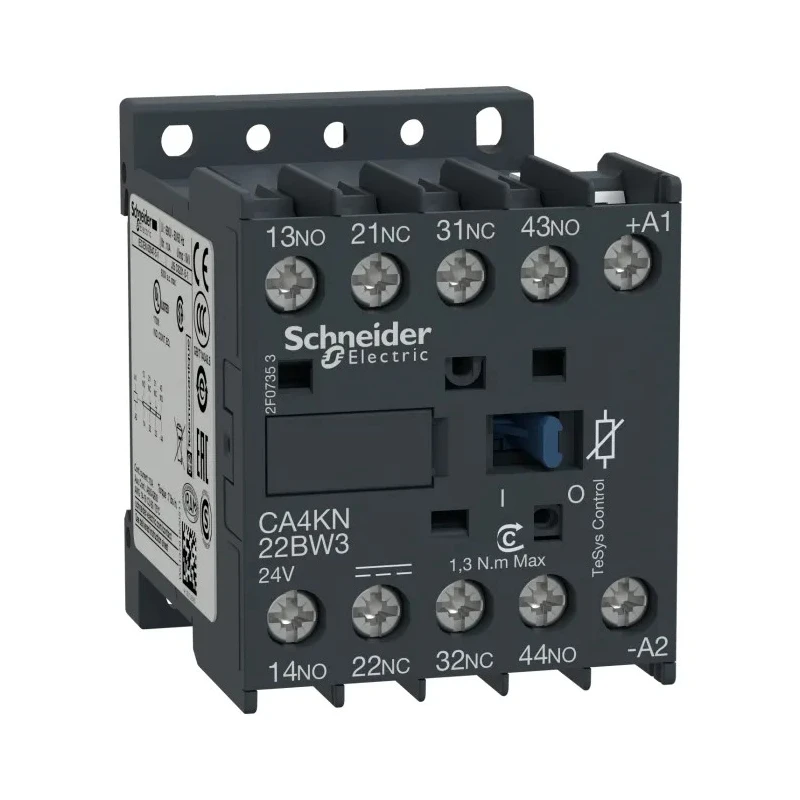

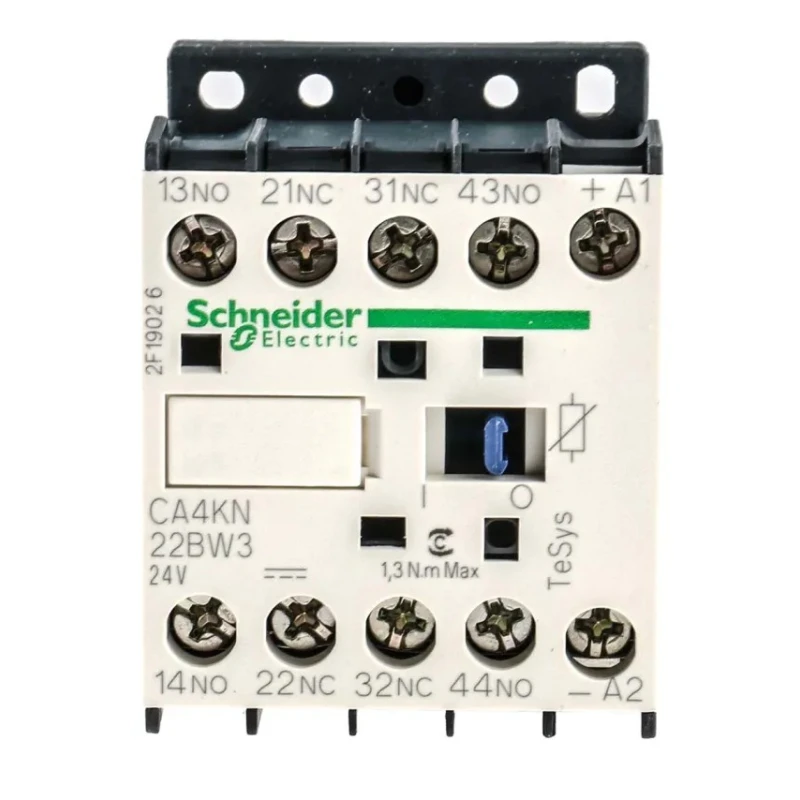

Schneider Electric TeSyS CA Control Relay Contactor, 24V Coil Voltage, 10A Contact Current, 2 NO/2 NC, 690V AC CA4KN22BW3

Schneider Electric CA4KN22BW3 TeSyS CA Control Relay Contactor is engineered for efficient industrial control circuits requiring reliable switching performance. This contactor is equipped with a 24V DC coil designed for low consumption, which reduces the electrical load on power supplies. It offers a combination of 2 normally open (NO) and 2 normally closed (NC) contacts, making it highly versatile for control logic applications.

With a contact current rating of 10A and an operational voltage of up to 690V AC, it supports a wide range of high voltage industrial control systems. The device supports mounting on plates or rails and features screw clamp terminals capable of accepting solid conductors from 1.5 mm² to 4 mm² and flexible conductors from 0.34 mm² to 4 mm², facilitating diverse wiring requirements.

The contactor operates reliably within an ambient temperature range of -25°C to +50°C and withstands mechanical stresses including vibrations up to 4G and shocks up to 15G. Typical switching speeds range from 10 ms to 40 ms depending on coil state and contact transition, providing responsive control suitable for factory automation and process control environments.

Certified to international safety and performance standards such as UL, CE, IEC 60947-4-1, and UKCA, this control relay is designed to ensure safety and compliance in demanding industrial applications. The product is part of Schneider Electric’s Better World initiative promoting eco-friendly and sustainable products, with a design focus on disassembly and recyclability.

Low coil power reduces supply loading and enhances efficiency. Versatile contact configuration with 2 NO/2 NC for flexible control. High voltage rating accommodates diverse industrial applications. Robust mechanical and thermal endurance ensure long operational life.

Multiple international certifications guarantee quality and safety.

This contactor is ideal for motor control pilot circuits, relay logic in electrical distribution panels, PLC interfacing, and auxiliary switching within compact control panels. Its compact size and flexible mounting allow retrofit installation in limited space scenarios. Schneider Electric CA4KN22BW3 enhances industrial automation systems with reliable and efficient control solutions. Browse our extensive catalog for more relays and contactors to match your industrial control needs.
