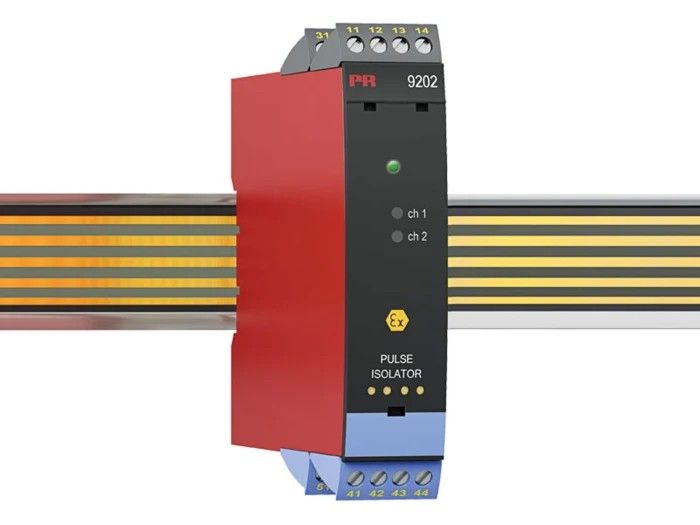

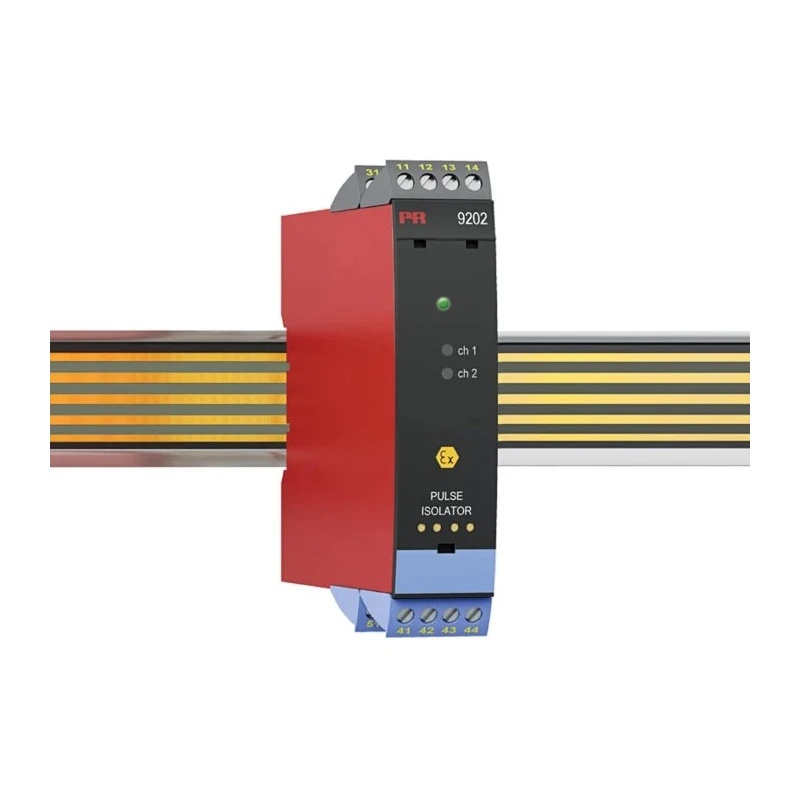

PR Electronics 9200 Series Pulse Isolator Switch Input Relay Output 19.2V dc 31.2V dc Supply 9202B3B
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | PR Electronics |
| Model | 9202B3B |
| IP Rating | IP20 |
| Mount Type | Panel, Rail |
| Series | 9200 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Supply Voltage | 19.2, 31.2V dc |
| Hazardous Area Certification | FM, IECEx, Zone, EAC, DNV GL, EU RO marine, ATEX, UL |
| Input Signal Type | Switch |
| Output Signal Type | Relay |
Key Features
- Provides 2.6 kV galvanic isolation between input, output, and power terminals.
- Certified for SIL 2 applications according to IEC 61508 standards.
- Suitable for intrinsically safe measurement in zone 0/ Division 1 hazardous areas.
- Supports mounting on panel or rail with screw terminals and IP20 rating.
- Operates within a temperature range of -20°C to 60°C.
- Includes advanced self-diagnostics and cable fault detection features.
- Compatible with detachable display module PR 4510 for configuration and monitoring.
- Certified by FM, IECEx, Zone, EAC, DNV GL, EU RO marine, ATEX, and UL standards.
Product Description
PR Electronics 9202B3B Pulse Isolator from the 9200 Series is engineered for high reliability in industrial signal conditioning. It safely transmits pulse signals from NAMUR sensors and mechanical switches located in hazardous areas to safe zones, ensuring galvanic isolation and intrinsic safety.
This dual channel pulse isolator features a normally closed (N/C) relay output and supports supply voltages of 19.2 V dc and 31.2 V dc. It uses transformer and optical isolation to guarantee 2.6 kVac galvanic isolation between input, output, and supply, effectively preventing electrical connection of input pulses with output signals.
The 9202B3B is designed for use in SIL 2 applications in compliance with IEC 61508, demonstrating safety and reliability for automated industrial processes. It functions as an isolation barrier, limiting energy levels on sensor contacts to prevent ignition in flammable atmospheres in zone 0/ Division 1 explosion hazard areas.
Installation is flexible with options for panel or rail mounting and screw terminal connections. Rated IP20, it operates reliably across temperatures from -20°C to 60°C. The unit supports advanced monitoring through a detachable display module (PR 4510), enabling easy configuration, diagnostics, and status visualization.
Key certifications include FM, IECEx, Zone approvals, EAC, DNV GL, EU RO marine, ATEX, and UL standards, ensuring its suitability for global industrial and hazardous environment deployments.
2.6 kVac galvanic isolation enhances electrical safety and signal integrity. Intrinsic safety barrier prevents hazardous ignition in explosive atmospheres. Comprehensive self-diagnostics identify cable faults and internal communication errors.
Flexible mounting and wiring options for panel and DIN rail installations. Certified for international hazardous area standards including SIL 2 safety level.
Ideal for industrial automation, process control, hazardous area signal isolation, and safety-critical monitoring systems. Explore more signal conditioners and isolators in the Electronics & Electricals category at EnvMart for your industrial automation needs.
Explore more products in our Signal Conditioners & Isolators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 60°C.
The input signal type for this unit is a switch signal.
This model supports supply voltages of 19.2 V dc and 31.2 V dc.
It is certified for hazardous areas by FM, IECEx, Zone, EAC, DNV GL, EU RO marine, ATEX, and UL standards.
This unit can be mounted on a panel or rail using screw terminals.
The IP rating for this model is IP20.
The minimum operating temperature for the 9202B3B is -20°C.
The output signal type for this model is a relay signal.
Yes, it includes advanced self-diagnostics and cable fault detection features.
This model belongs to the 9200 series of pulse isolators.
Yes, it is certified for SIL 2 applications according to IEC 61508 standards.
It provides 2.6 kV galvanic isolation between input, output, and power terminals, enhancing electrical safety.
