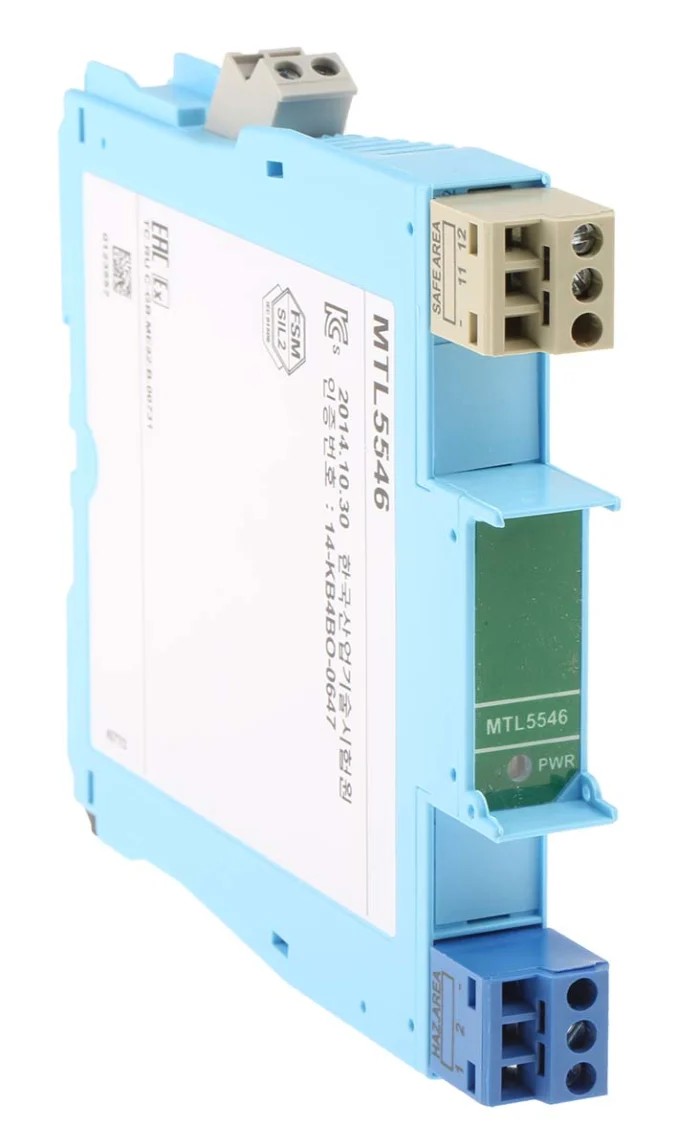

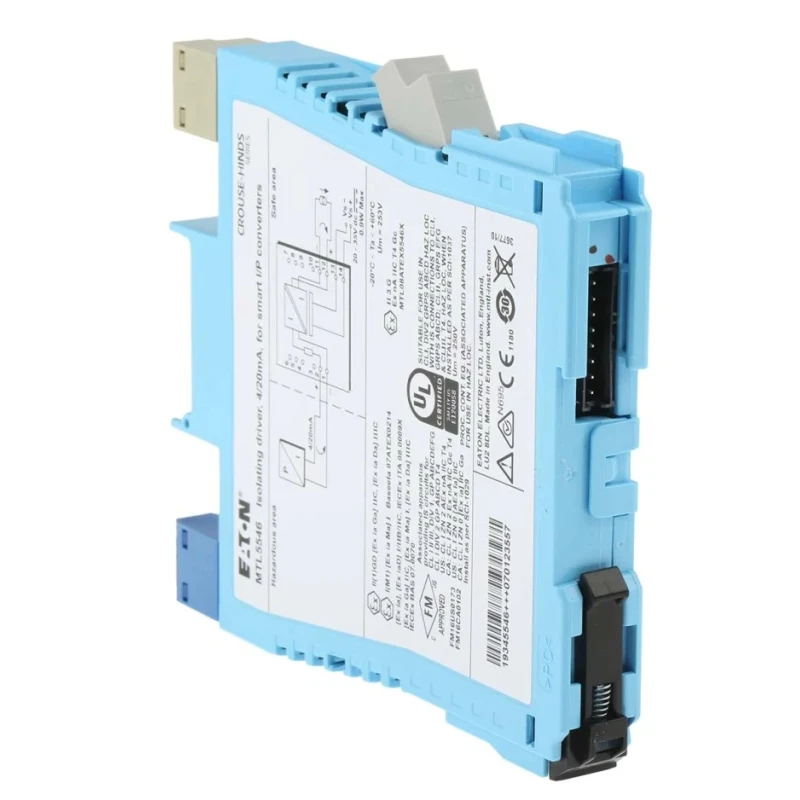

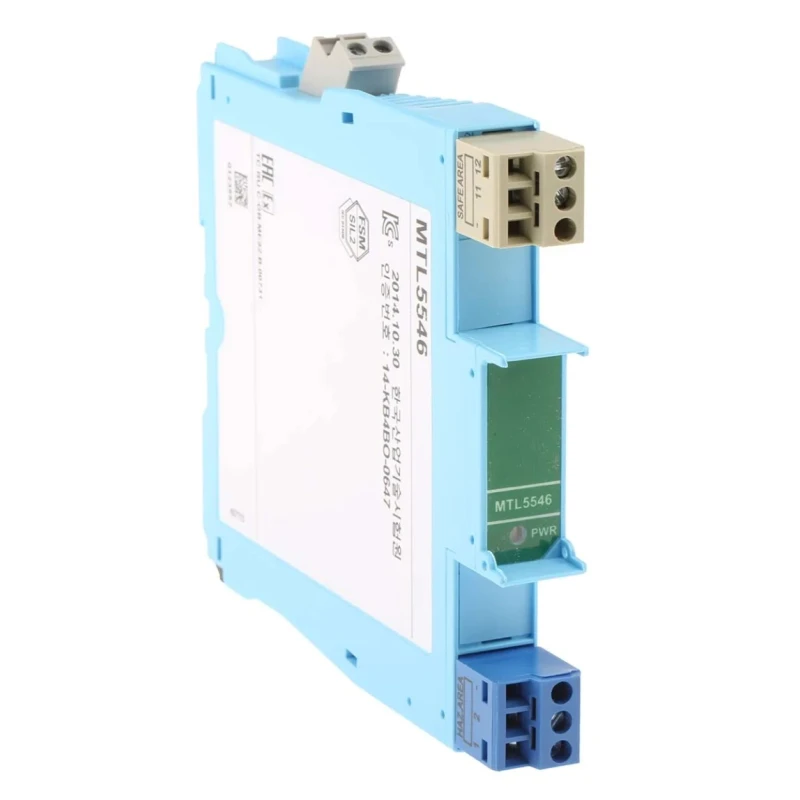

Eaton Zener Barrier 1 Channel Galvanic Barrier DIN Rail Mount ATEX Certified 20-35V DC Supply MTL5546/RS

Eaton MTL5546/RS Zener Barrier is a galvanic barrier solution specifically engineered for industrial safety and process automation applications in hazardous environments. It features a single channel design and is mounted on DIN rails for ease of integration into existing systems. The device supports a supply voltage between 20 and 35 V DC and ensures operational stability at temperatures ranging from -20°C to 60°C. It is certified under ATEX, guaranteeing its suitability for explosive atmosphere use.

The galvanic barrier type minimizes exposure of delicate components to high currents, preventing sparks and ensuring equipment protection. It incorporates a built-in fault detection system that rapidly detects and isolates short circuits, maintaining system integrity and uptime.

This Zener barrier is equipped with screw terminals, providing secure and reliable electrical connections. Its IP54 ingress protection rating enables performance in dusty and moist industrial settings. Compatibility with the HART communications protocol allows for effective bi-directional control and integration into smart industrial ecosystems.

The device includes an LED indicator, facilitating quick diagnostics and status monitoring. Its greater than 20 μA transfer accuracy guarantees precise signal conditioning, while a ripple below 40 μA increases energy efficiency and reduces noise.

This DIN Rail mounted zener barrier is ATEX certified for explosive environments. Operates within a supply voltage range of 20 to 35 V DC. Maximum safety voltage rating of 28 V and safety current of 93 mA. Includes inbuilt fault detection for short circuit protection.

IP54 rated for dust and water resistance. Suitable for harsh environments with operating temperatures from -20°C to 60°C. Compatible with HART communication for bi-directional control. LED indicator for fast diagnostics.

Ensures precision transfer accuracy over 20 μA. Low peak-to-peak ripple less than 40 μA.

This Eaton MTL5546/RS is an ideal safety component for industrial, manufacturing, and process automation sectors requiring reliable signal isolation and hazardous area certification compliance. Browse the Electronics & Electrical category for more safety and signal conditioning solutions at EnvMart.
