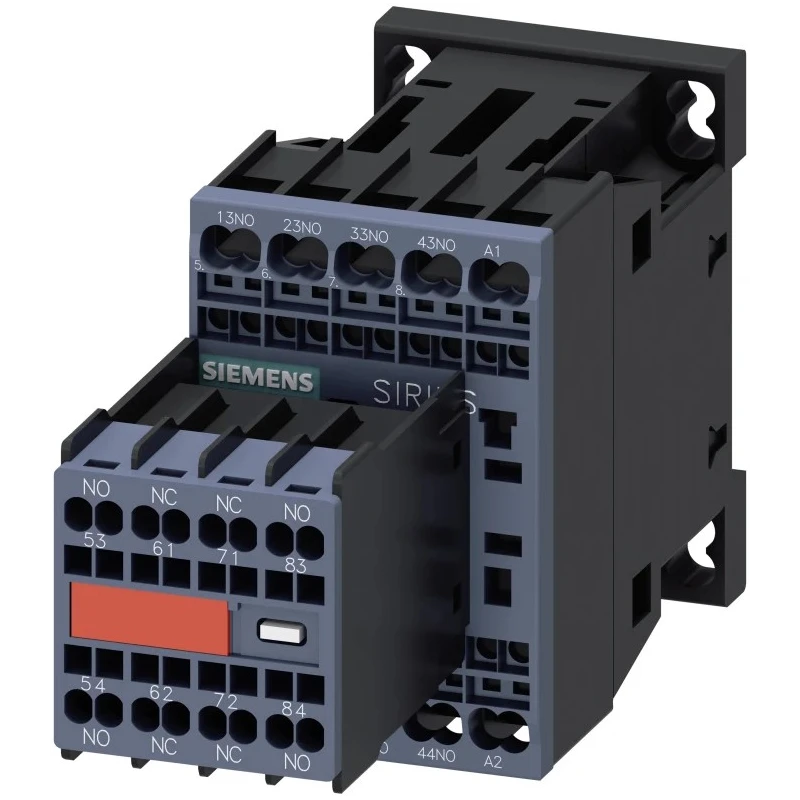

Siemens SIRIUS Contactor Relay 230V AC Coil 10A 6 NO/2 NC 600V DC, 690V AC 3RH2262-2AP00
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Length | 45mm |
| Model | 3RH2262-2AP00 |
| Depth | 70mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | SIRIUS |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Spring Loaded |
| Contact Voltage | 600, 690V dc |
| Coil Voltage | 230V ac |
| Normal State Configuration | 6 NO/2 NC |
| Contact Current | 10A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 6 NO/2 NC |
| Operational Current Ie | 10A |
| Control Circuit Voltage Uc | 230V ac |
| Pole and Throw Configuration | 8 |
Key Features
- The relay is suitable for solid-state circuits with currents equal to or greater than 1 mA at voltages above 17 V.
- It supports expansion by up to four contacts through snap-on auxiliary switch blocks.
- Equipped with spring-loaded terminals for secure connections.
- Operates reliably within a temperature range of -25°C to 60°C.
- Mountable on DIN rails for flexible installation.
- Compact in size with dimensions 45mm length, 45mm width, and 70mm depth.
- Capable of handling contact voltages up to 600V DC and 690V AC.
- Designed to comply with IEC and EN standards 60947-1, 60947-4-1, and 60947-5-1.
Product Description
Siemens 3RH2262-2AP00 SIRIUS Contactor Relay is designed for industrial and automation applications requiring reliable switching of electrical circuits. Featuring a coil voltage of 230V AC and contact current rating of 10A, this relay supports 6 normally open (NO) and 2 normally closed (NC) auxiliary contacts, providing versatility in control circuit configurations.
The Contactor Relay includes spring-loaded terminals and is designed for DIN rail mounting, facilitating easy installation and maintenance. Its compact dimensions of 45mm x 45mm x 70mm make it suitable for panel integration where space is constrained.
This relay is suitable for use with solid-state circuits with operating currents of 1 mA or more at voltages of 17 V and above, ensuring compatibility and adaptability in modern control systems. It can be expanded by up to four additional contacts via snap-on auxiliary switch blocks, enhancing its functionality.
Operating temperature range from -25°C to 60°C ensures stable performance across a wide range of environmental conditions. The relay is manufactured to meet rigorous IEC and EN standards including IEC 60947-1, IEC 60947-4-1, and IEC 60947-5-1, guaranteeing high reliability and safety in industrial settings.
Suitable for industrial, automation, electrical control, and manufacturing applications. High stability with low voltage and current handling capacity. Supports damping of coil opening surges with optional RC elements, varistors, or diode assemblies.
Compact and robust design ensuring longevity and durability. Manufactured in Germany ensuring adherence to quality standards. Explore Siemens products in the Contactors & Auxiliary Contacts category on EnvMart for a wide range of reliable industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of the Siemens SIRIUS Contactor Relay is 10A.
This contactor relay operates with a coil voltage of 230V AC.
The dimensions of this model are 45mm in length, 45mm in width, and 70mm in depth.
The maximum operating temperature for the Siemens SIRIUS Contactor Relay is 60°C.
This unit supports a configuration of 6 normally open (NO) and 2 normally closed (NC) auxiliary contacts.
The minimum operating temperature for this model is -25°C.
It features spring-loaded terminals for secure connections.
The contact voltage rating is up to 600V DC and 690V AC.
Yes, this relay is designed for DIN rail mounting, facilitating easy installation.
It complies with IEC and EN standards 60947-1, 60947-4-1, and 60947-5-1.
Yes, it can be expanded by up to four additional contacts through snap-on auxiliary switch blocks.
It is suitable for industrial, automation, electrical control, and manufacturing applications.
