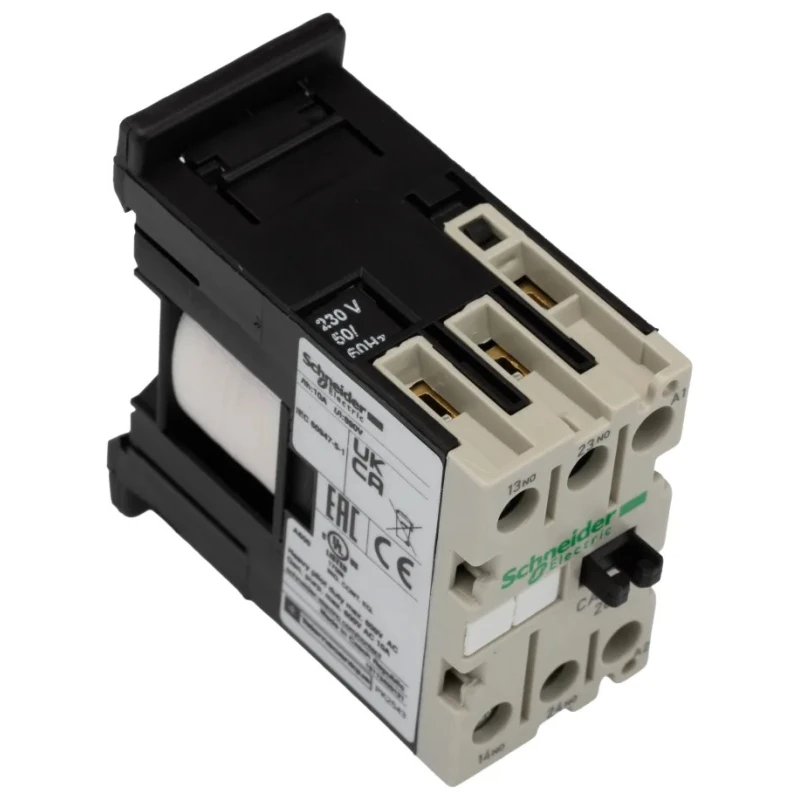

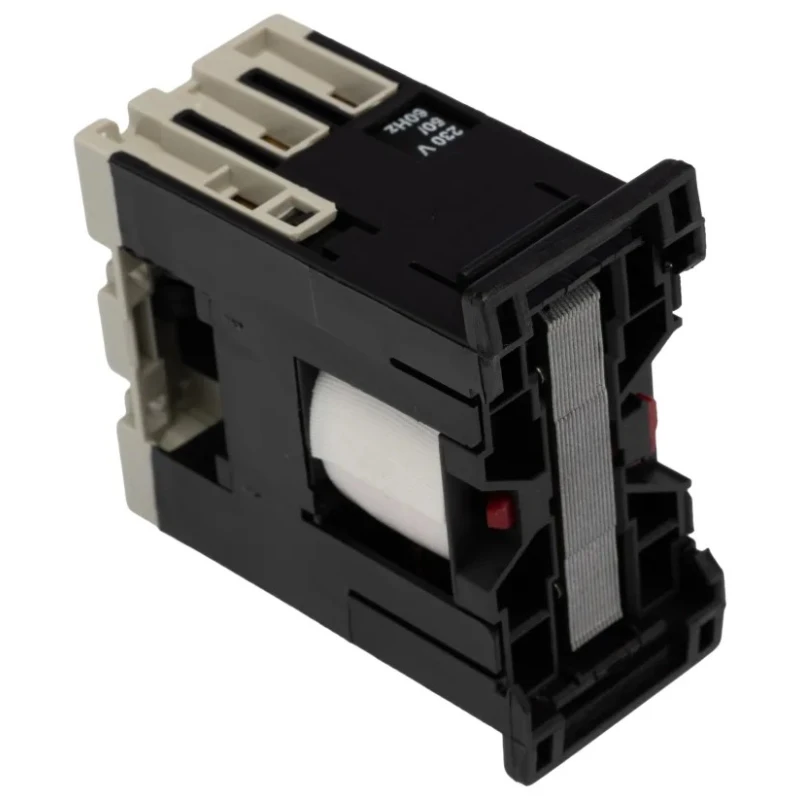

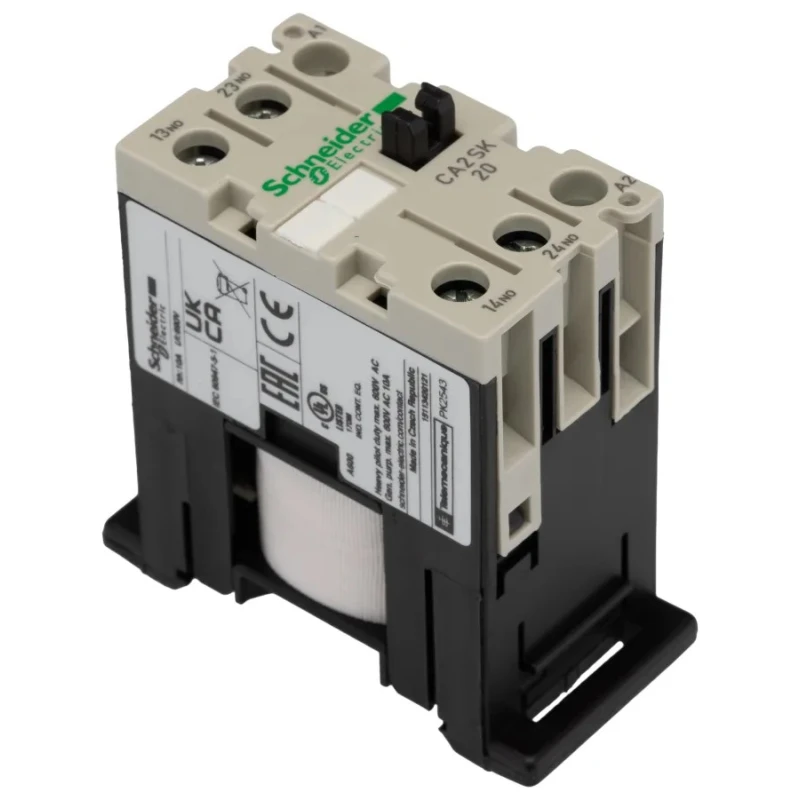

Schneider Electric TeSys SK Control Relay 2 NO, 10A FLC, 230V AC, Rail Mount, Screw Clamp CA2SK20P7

Schneider Electric CA2SK20P7 TeSys SK Control Relay is an industrial-grade relay designed for efficient AC-operated switching within control circuits. Offering two normally open auxiliary contacts and a 10A current rating, it is suitable for motor starters and automation panels requiring reliable circuit segregation and sequencing. The device utilises a 230V AC control voltage and is equipped with screw clamp terminals to accommodate flexible conductors ranging from 0.35mm² to 6mm², providing installation versatility.

This rail-mounted relay is engineered for integration into machine control panels and electrical distribution assemblies, where space efficiency and operational reliability are critical. Its compact dimensions (27mm width, 56mm length, and 55.5mm depth) make it ideal for dense industrial environments. The relay withstands a conventional thermal current of 10A, and its relay contact current also supports 10A - making it suitable for moderate load handling and insulation voltage up to 690V AC, fitting high-voltage system requirements.

Built for endurance, the mechanical life of the CA2SK20P7 is rated to 10 million cycles, ensuring long-term durability in demanding automation tasks. The relay operates effectively between ambient temperatures of -20°C and 50°C, enhancing its suitability for varied industrial climates. IP2X protection rating assures safety by reducing access to hazardous parts, and the device complies with UL 60947-5-1, UKCA, EN/IEC 60947-5-1, EAC, cULus, CSA C22.2 No 60947-5-1, CE, and CB scheme standards for global acceptance.

Inrush coil power is 16 VA at 20°C, with typical hold-in consumption at 4.2 VA, supporting energy-efficient operation. Recommended fuse rating is 10A gL for circuit protection, and the relay is designed with sustainability in mind, featuring a disassembly-friendly build to ensure ease of maintenance and eco-conscious practices.

This control relay is ideal for use cases such as motor starter circuit switching, PLC output isolation, interlock and automation sequencing, and compact auxiliary relay deployment in distribution units. Its robust design and comprehensive technical features make it a core component for industrial, manufacturing, automation, HVAC, and electrical panel applications.

Provides reliable AC-operated switching for electrical control circuits. Features two normally open contacts for versatile circuit control tasks. Rated for 10A conventional thermal and relay contact current. Screw clamp terminals accept flexible conductors from 0.35 to 6mm².

Designed for rail mounting to simplify integration in control panels. Mechanical endurance rated to 10 million cycles. Offers 690V AC insulation voltage compatibility for industrial systems. Compact 27mm width and 56mm length save space in assemblies.

IP2X protection rating enhances safety from hazardous parts. Explore more Schneider Electric Control Relays and automation components in the EnvMart Electronics & Electricals category for advanced industrial solutions.
