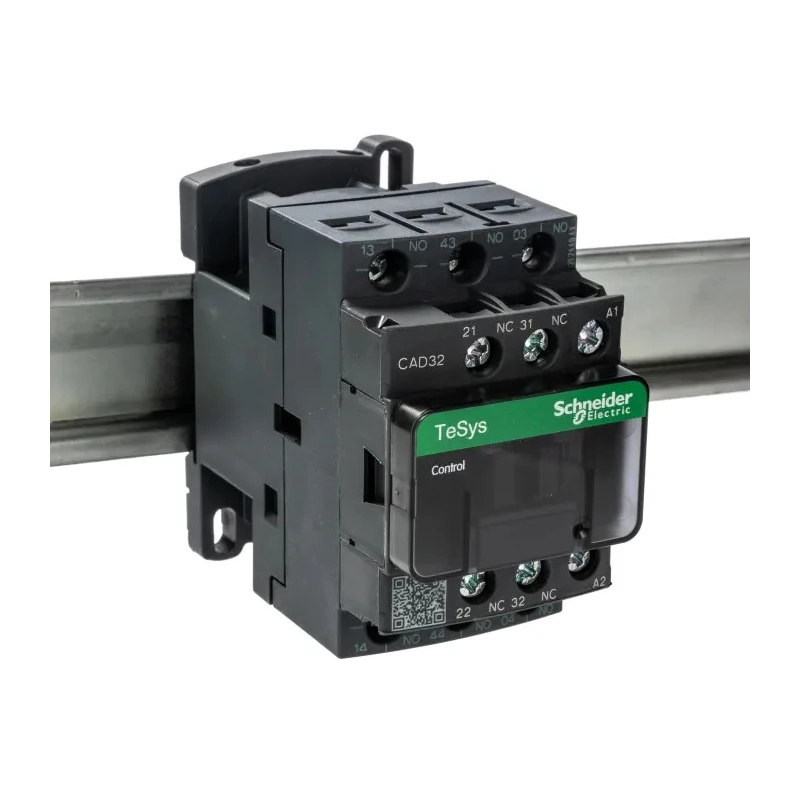

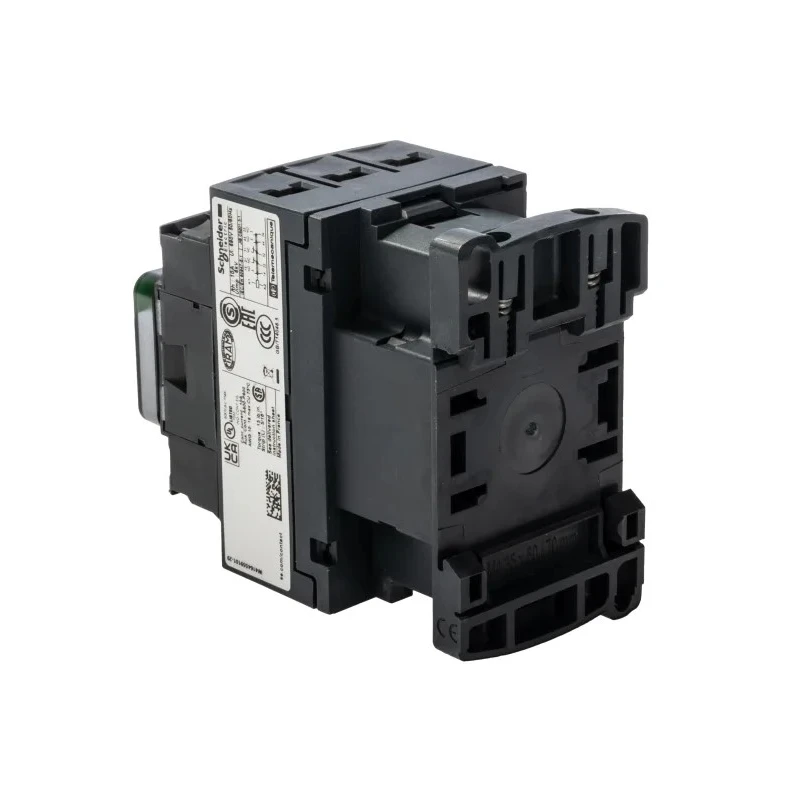

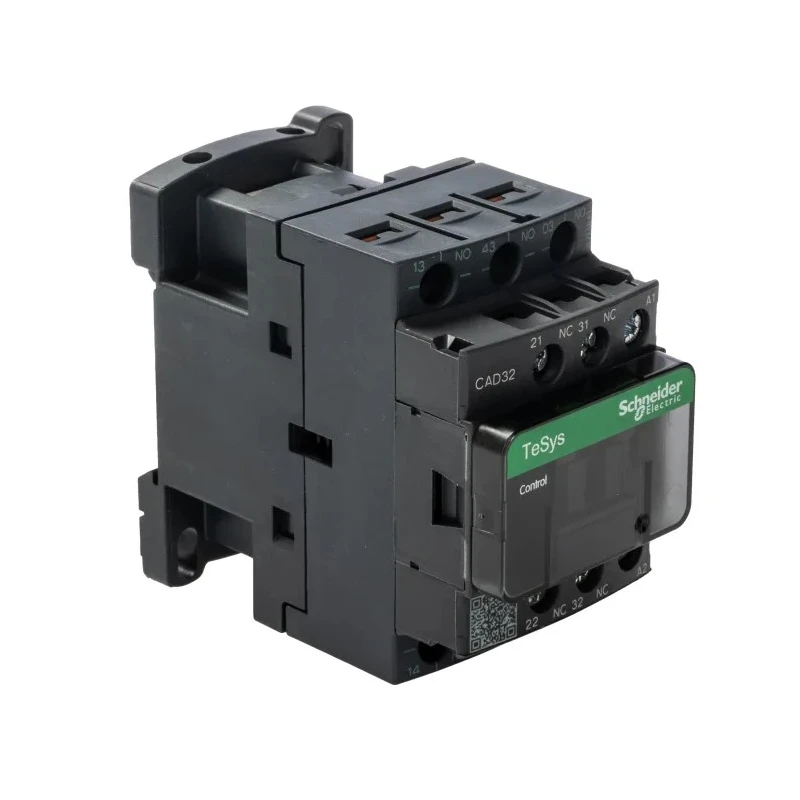

Schneider Electric CAD Contactor 5-Pole Control Relay 110V AC Coil, 10A, 2 NO/2 NC, 690V AC CAD32F7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Control Relay |
| Length | 77mm |
| Model | CAD32F7 |
| Depth | 84mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | CAD |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw Clamp |
| Number of Poles | 5 |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 10A |
| Number of Auxiliary Contacts | 5 |
| Auxiliary Contact Configuration | 3 NO/2 NC |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Control Relay |
| Pole and Throw Configuration | 5 |
| CON RLY 110V CL 3NO+1NCBrand | Telemecanique |
| Schneider Electric, CAD Control Relay 2 NO/2 NC, 10A Contact Rating, 220VBrand | Schneider Electric |
Key Features
- Features a 5-pole configuration for robust control operations.
- Equipped with a 10A contact current rating at 690V AC for reliable electrical performance.
- Supports normal state configuration of 2 normally open and 2 normally closed contacts.
- Screw clamp terminal type enables easy and secure wiring connections.
- Operates efficiently within a temperature range of -40°C to 70°C.
- Designed for DIN rail mounting facilitating straightforward installation.
- Includes 5 auxiliary contacts (3 NO and 2 NC) for extended control functionality.
- Meets multiple international standards including UKCA, CE, UL, and RoHS for quality assurance.
Product Description
Schneider Electric CAD32F7 is a high-quality 5-pole contactor control relay with a coil voltage of 110V AC, designed for safe and efficient control of industrial motors and automation systems. It supports a maximum contact current of 10A at 690V AC, making it suitable for a variety of industrial applications such as conveyor systems, material handling equipment, automation, and robotics.
Thanks to its electromagnetic induction technology, the CAD32F7 allows low-power control signals to switch industrial loads, thereby protecting equipment from overheating and overcurrent damage. The unit complies with AC-14, AC-15, and DC-13 utilization categories, ensuring versatility across AC and DC electromagnetic load control.
The device is engineered to operate reliably over a wide temperature range from -40°C to +70°C, with an IP2X rating providing finger-safe protection against objects greater than 12mm. The screw clamp terminals allow easy, tool-free wiring, saving installation time. The compact size and DIN rail mount type facilitate seamless integration into control panels.
With multiple international approvals including UKCA, CE, UL, and RoHS directives, this contactor ensures compliance with global quality and safety standards. Its 5 auxiliary contacts (3 normally open and 2 normally closed) expand its control capabilities, supporting complex automation configurations.
5-pole contactor with 10A contact current rating. 110V AC coil voltage with screw clamp terminals. Wide operating temperature range from -40°C to 70°C. IP2X finger-safe rated for demanding industrial environments. DIN rail mounting for efficient panel assembly.
Compliant with multiple international standards including UKCA, CE, UL, and RoHS. Auxiliary contacts: 5 total, configured as 3 NO and 2 NC. Dimensions: 77mm length, 45mm width, 84mm depth. Designed for control relays in automation and motor control applications.
This Schneider Electric CAD32F7 contactor is an ideal choice for applications requiring reliable switching with compact design and international certifications. Explore our category of Control Relays for a full range of industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The CAD32F7 has a contact current rating of 10A at 690V AC.
This model operates with a coil voltage of 110V AC.
It operates efficiently within a temperature range of -40°C to 70°C.
The CAD32F7 includes 5 auxiliary contacts, configured as 3 normally open (NO) and 2 normally closed (NC).
It features screw clamp terminals for easy and secure wiring connections.
This model is designed for DIN rail mounting, facilitating straightforward installation.
The dimensions of this unit are 77mm in length, 45mm in width, and 84mm in depth.
The normal state configuration of the CAD32F7 is 2 normally open (NO) and 2 normally closed (NC) contacts.
It meets multiple international standards including UKCA, CE, UL, and RoHS.
The CAD32F7 functions as a control relay, suitable for controlling industrial motors and automation systems.
The maximum contact voltage rating for this model is 690V AC.
This control relay is suitable for various industrial applications such as conveyor systems, material handling equipment, automation, and robotics.
