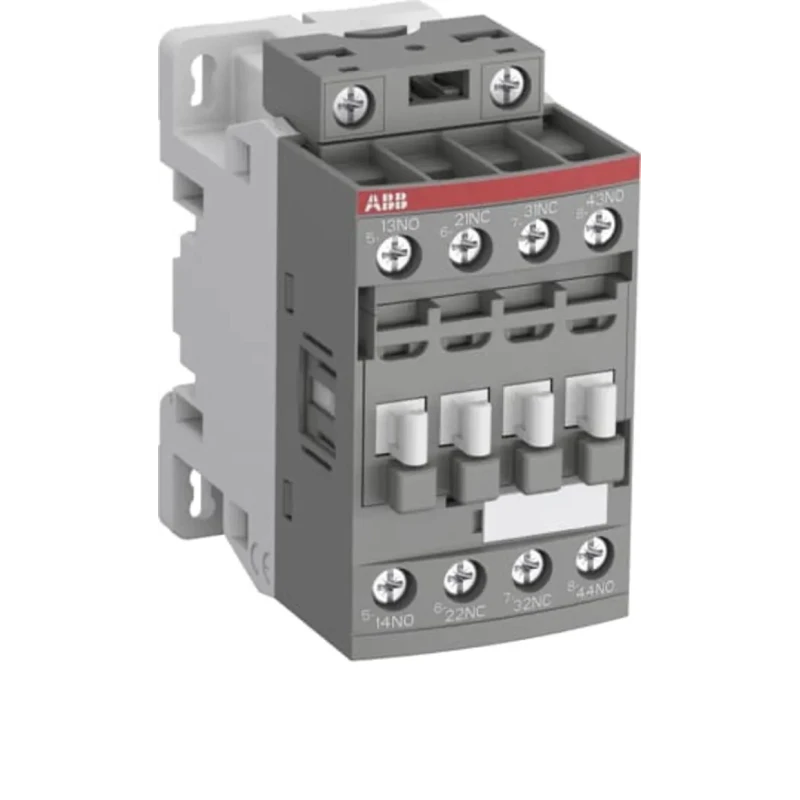

ABB Contactor Relay, 250V DC Coil, 4-Pole, 6A, 140W, DIN Rail, 3 NO/1 NC, 690V, 1SBH136061R2131
Specifications
| Country of Origin | France |
|---|---|
| Brand | ABB |
| Length | 77mm |
| Model | 1SBH136061R2131 |
| Depth | 77mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | NFZB..RT |
| Power Rating | 140W |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Contact Voltage | 690V |
| Coil Voltage | 250V dc |
| Normal State Configuration | 3 NO/1 NC |
| Contact Current | 6A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 3 NO/1 NC |
| Operational Current Ie | 6A |
| Control Circuit Voltage Uc | 690V |
| Pole and Throw Configuration | 4 |
Key Features
- Features a 250V DC coil and 4-pole contact configuration for controlling auxiliary circuits.
- Compact DIN rail mount design with a footprint of 77 mm x 45 mm x 77 mm.
- Supports high contact voltage up to 690V and contact current of 6A for reliable switching.
- Offers a 3 NO / 1 NC auxiliary contact arrangement for flexible control integration.
- Provides operational temperature range from -40°C to +70°C for demanding environments.
- Screw terminals ensure secure and vibration-resistant wiring connections.
- Consistent performance in railway, automation, and electrical distribution systems.
- Certified to major global standards, supporting safe and compliant installations.
Product Description
The ABB 1SBH136061R2131 contactor relay is a premium automation component designed for critical control applications across railway, automation, and industrial installations. Combining a compact DIN rail housing with high-performance electrical characteristics, this relay is engineered for demanding environments requiring robust switching and reliable auxiliary circuit management.
This contactor relay features a 250V DC coil and supports a 4-pole configuration, allowing for 3 normally open (NO) and 1 normally closed (NC) contacts. Such an arrangement provides engineers and installers with flexible circuit management options, facilitating a wide range of automation control scenarios.
Rated for operation with control voltages up to 690V, the relay handles up to 6A of contact current and delivers a power rating of 140W, making it suitable for use in modern railway cabs, tunnels, and passenger vehicles as well as industrial automation boards.
The rugged screw terminal connections guarantee secure wire attachments, while its compact 77 x 45 x 77 mm dimensions make installation in confined control panels straightforward. Its design ensures vibration resistance and lasting electrical contact integrity.
With an operational temperature span from -40°C to 70°C, the ABB 1SBH136061R2131 maintains performance even in extreme climates, ensuring system reliability for railways, commercial buildings, and manufacturing lines.
Energy efficiency is a key benefit, with a 68% reduction in coil energy consumption during routine operation, contributing to reduced operational costs and sustainable control panel design.
Applications for this relay encompass auxiliary control in railway environments, switch operations in passenger and driver cabs, and systems where compliance with European and international electrical standards is essential. Global certifications further assure integrators of its safety and reliability for mission-critical installations.
Package contents typically include one ABB 1SBH136061R2131 contactor relay as specified. For integration into railway and industrial environments requiring consistent DC control with 3NO/1NC flexibility, this relay is an optimal choice.
Explore more reliable industrial and railway control relays from ABB in the Contactor Relay category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor relay is 250V DC.
This model supports a maximum contact voltage of 690V.
The contact current rating for this relay is 6A.
The operational temperature range of this relay is from -40°C to +70°C.
The dimensions of this contactor relay are 77 mm in length, 45 mm in width, and 77 mm in depth.
This relay is designed for DIN rail mounting.
It features screw terminal connections for secure wiring.
The power rating of this contactor relay is 140W.
This contactor relay has a 4-pole configuration.
The auxiliary contact configuration for this relay is 3 normally open (NO) and 1 normally closed (NC).
This relay is suitable for use in railway, automation, and industrial environments.
This contactor relay is certified to major global standards, ensuring safe and compliant installations.
