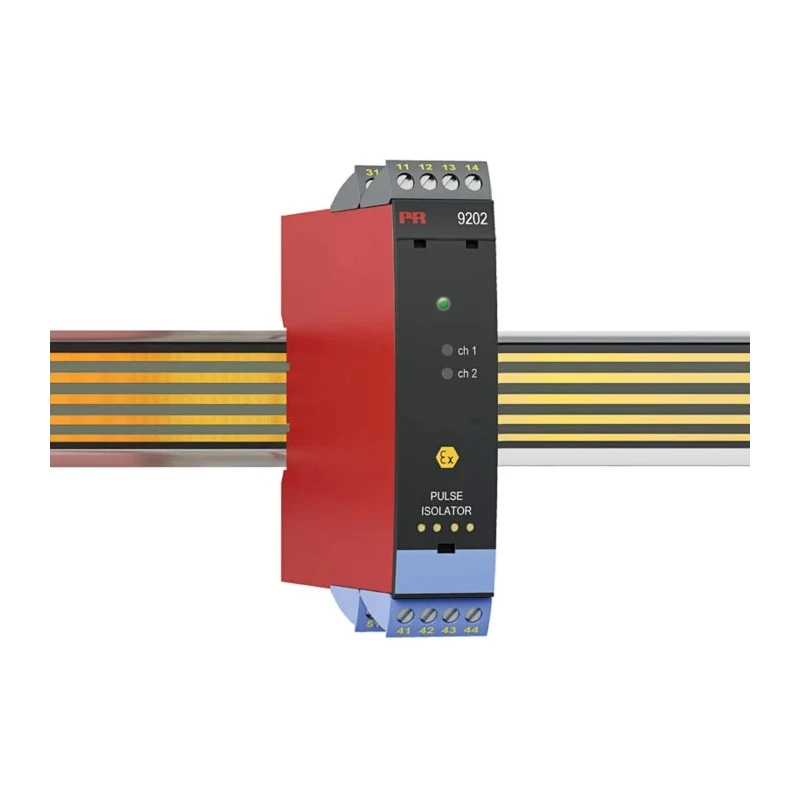

PR Electronics 9200 Series Pulse Isolator, Switch Input, Relay Output, 19.2V dc, 31.2V dc Supply 9202B3A

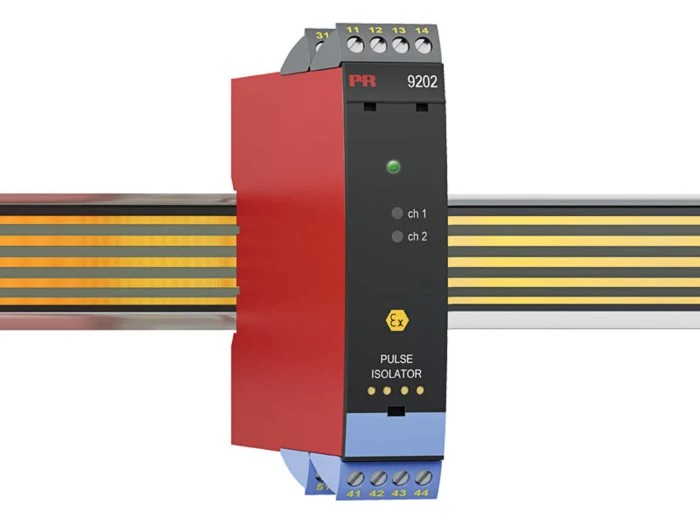

PR Electronics 9202B3A Pulse Isolator from the 9200 Series is designed for industrial signal conditioning with switch input and relay output capabilities. It accepts inputs from NAMUR sensors and mechanical switches installed in hazardous areas, providing intrinsic safety and galvanic isolation. The isolator utilizes transformer and optical isolation techniques, achieving 2.6 kV insulation between input, output, and power circuits, ensuring no electrical connection between sensed pulses and output signals.

Certified for SIL 2 applications according to IEC 61508, it is suitable for use in zone 0/Division 1 explosion hazard areas, limiting energy at sensor contacts to prevent ignition risks. The unit can be mounted in safe areas or zone 2 / Class 1 Division 2 locations and can receive signals from zone 0, 1, 2, as well as zone 20, 21, 22 environments, making it ideal for hazardous industrial facilities.

The device supports advanced safety and monitoring features, including internal communication diagnostics, cable fault detection, and error event signaling through individual status relay or collective electronic signals via power rail. Operation status and malfunction indications are provided with front LEDs. Configuration and parameter programming are facilitated with the detachable PR 4510 display module, ensuring secure and flexible setup.

Constructed for reliability, the pulse isolator mounts conveniently on a DIN rail and uses screw terminals for wiring. Its operational temperature range from -20°C to 60°C and IP20 protection rating make it suitable for diverse industrial environments.

Applications span industrial automation, process control, water treatment, and hazardous area signal isolation requiring robust relay output switching and safe energy barriers. The isolator is engineered and certified to meet stringent standards including UL, Zone 2, DNV GL, EAC, ATEX, FM, IECEx, NAMUR, and EU RO marine certification, verifying compliance with international safety and quality frameworks.

Enables safe transmission of pulses from hazardous areas. Intrinsic safety barrier for explosion protection. 2.6 kV galvanic isolation for secure signal separation. Supports DIN rail mounting and screw terminal connections.

Certified for hazardous zones and SIL 2 applications. Advanced diagnostics for cable faults and operational status. Configurable via PR 4510 detachable display module. Explore EnvMart's comprehensive Signal Conditioners and Isolators category for high-quality industrial automation solutions.
