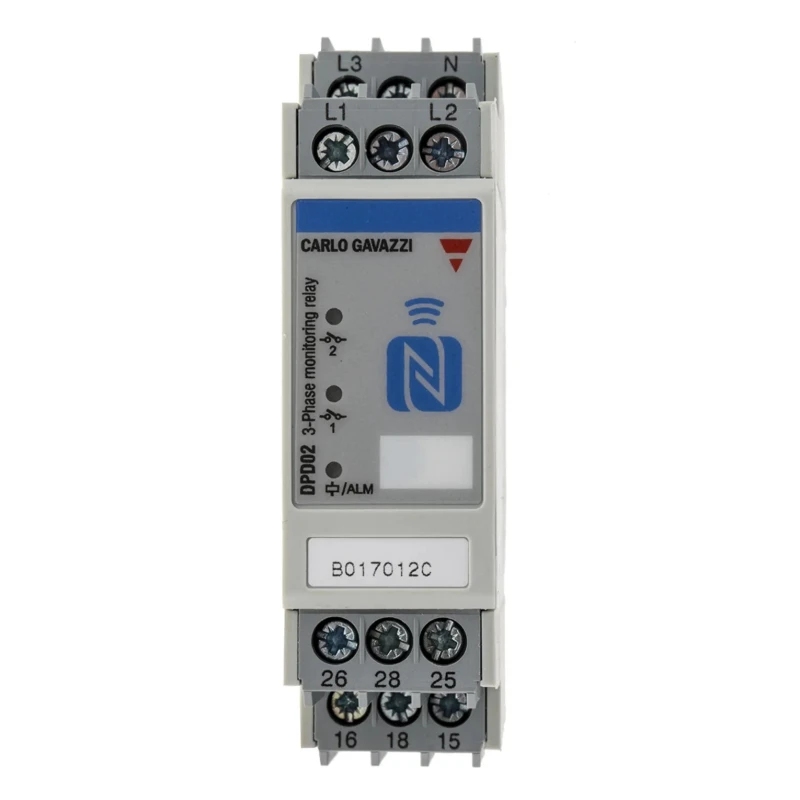

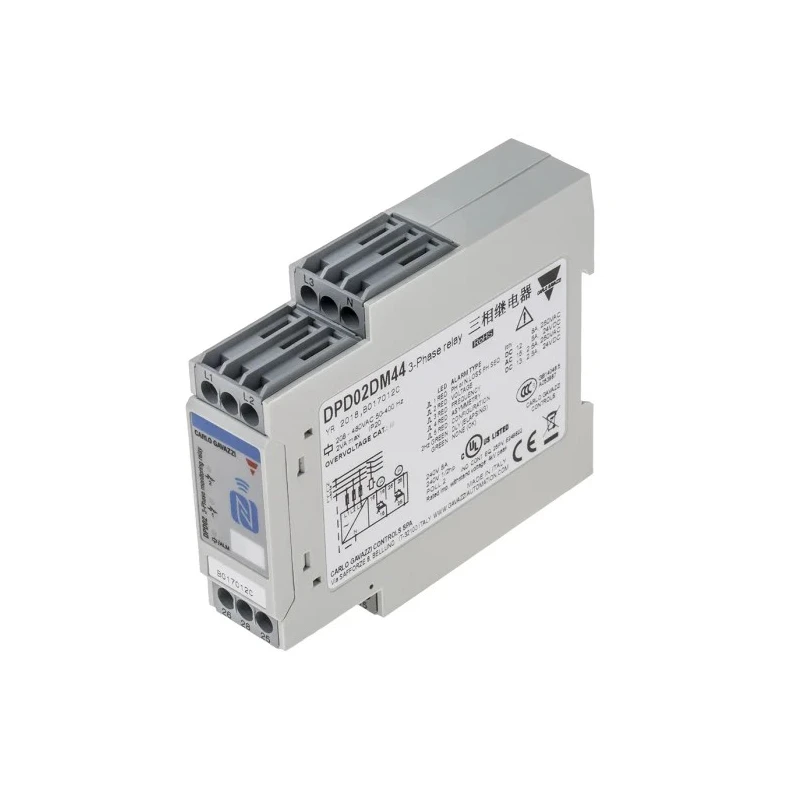

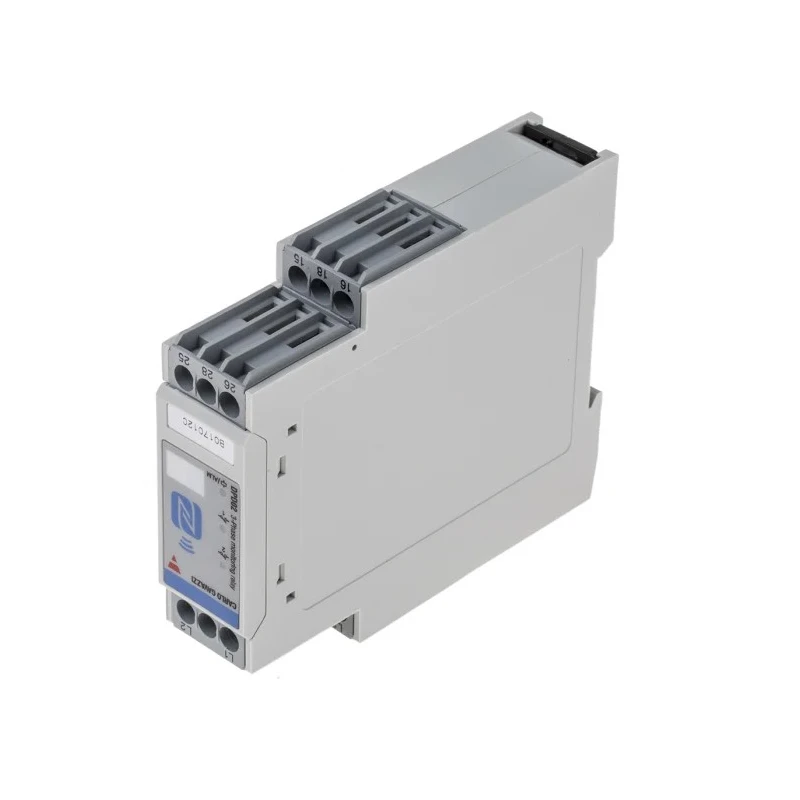

Carlo Gavazzi 3 Phase SPDT Monitoring Relay with DIN Rail Mount, 315V AC, Model DPD02DM44
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Carlo Gavazzi |
| Height | 84mm |
| Length | 99.5mm |
| Model | DPD02DM44 |
| IP Rating | IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | DPD |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Contact Current | 5A |
| Supply AC Voltage | 315V ac |
Key Features
- Supports 3-phase electrical systems with SPDT contact configuration.
- Operates at a supply voltage of 315V AC with 5A contact current capacity.
- Mounts securely on standard DIN rail with screw terminal connections for easy installation.
- Includes NFC configuration for easy setting adjustments via smartphone or USB NFC Reader/Writer.
- Offers adjustable set-points, hysteresis, and time delays for precise control.
- Equipped with three diagnostic LEDs for clear status indication.
- Operating frequency ranges from 45 to 440 Hz, suitable for various industrial applications.
- Meets IEC 60947-1, RoHS, IEC 60664, CE, UL, EN 61000-6-2, and EN 61000-6-4 standards.
Product Description
Carlo Gavazzi DPD02DM44 Monitoring Relay is a high-quality 3 Phase SPDT device designed for industrial automation and electrical monitoring applications. It provides precise 3-phase voltage and frequency supervision with a reliable 5 Amp contact current capacity. Designed for DIN rail mounting, this relay offers convenient installation and maintenance with screw terminal connections.
The DPD Series relays feature innovative NFC configuration, allowing users to easily modify settings through an Android app or USB NFC Reader/Writer without physical potentiometers or DIP switches. This enhances setup flexibility, enabling customizable under and over threshold limits, hysteresis, and time delays. Password protection secures the configuration against unauthorized changes.
This model operates at a nominal voltage of 315V AC, with a frequency range of 45 to 440 Hz, suitable for star or delta mains configurations. It includes two independent SPDT outputs with 8 Amp rating, supported by clear diagnostic LEDs for operational status.
With compact dimensions (99.5mm length, 84mm height, 22.5mm width) and IP20 rating, the Carlo Gavazzi DPD02DM44 is suitable for varied industrial environments including automation systems, electrical panels, and machine control applications.
Supports 3-phase electrical monitoring with SPDT contact outputs. NFC configuration enables easy and customizable relay settings. Robust DIN rail mounting and screw terminal connections. Meets international electrical and safety standards including IEC and RoHS.
Equipped with diagnostic LEDs for clear status reporting.
Designed and manufactured in Italy, this relay is ideal for industrial, manufacturing, HVAC, and electrical distribution system monitoring. Discover more industrial electrical components and relays at EnvMart's extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a supply voltage of 315V AC.
It has a contact current capacity of 5A.
This relay is designed for DIN rail mounting, ensuring secure installation.
The operating frequency ranges from 45 to 440 Hz, making it suitable for various industrial applications.
Yes, it includes NFC configuration for easy setting adjustments via smartphone or USB NFC Reader/Writer.
It has dimensions of 99.5mm in length, 84mm in height, and 22.5mm in width.
It features two independent SPDT outputs with an 8 Amp rating.
This model has an IP20 rating, indicating its level of protection against solid objects.
It is equipped with three diagnostic LEDs for clear status indication.
The maximum operating temperature is 60°C, and the minimum operating temperature is +60°C.
It meets IEC 60947-1, RoHS, IEC 60664, CE, UL, EN 61000-6-2, and EN 61000-6-4 standards.
It utilizes screw terminal connections for easy installation.
