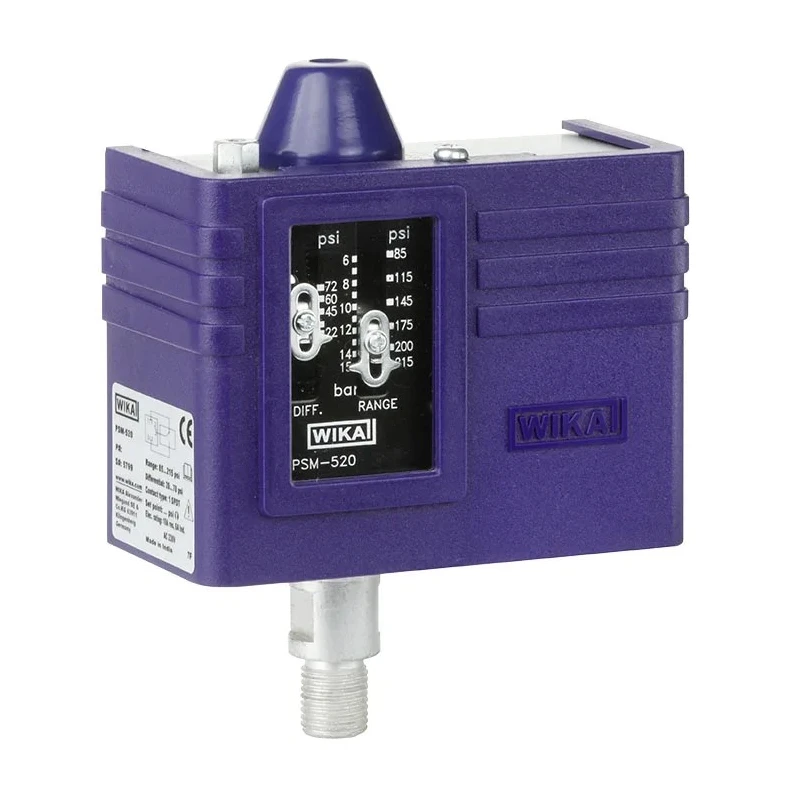

WIKA Pressure Switch Adjustable -0.4 bar to 5 bar, Panel/Direct Mount, 230V, PSM-520 14269047
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 230V |
| Brand | WIKA |
| Maximum Operating Pressure | 5 bar |
| Current | 10A |
| Height | 122mm |
| Model | 14269047 |
| IP Rating | IP30 |
| Mount Type | Panel, Direct |
| Series | PSM-520 |
| Maximum Operating Temperature | 80°C |
| Pressure Type | Adjustable |
| Port Size | 1/4 in G |
| Minimum Operating Temperature | -40°C |
| Connection Thread Standard | ISO 228-1 |
| Minimum Operating Pressure | -0.4bar |
| Port Gender | Female |
| Suitable Medias | Water, Non-Corrosive Fluid |
Key Features
- Wide adjustable pressure range from -0.4 bar to 5 bar.
- Suitable for water, oil, air and non-corrosive fluids in industrial environments.
- Panel or direct mounting provides flexible installation options.
- Operates at 230V and switches loads up to 10A.
- Protective cap enables on-site switch point setting adjustments.
- Female threaded port size of 1/4 in G, ISO 228-1 standard.
- IP30 rating for basic ingress protection; operating temperature from -40°C to 80°C.
- Meets EN 10277-3, DIN EN 60947-1, RoHS, EN 1652 and EAC standards.
Product Description
The WIKA Pressure Switch model 14269047 offers reliable and adjustable switching for industrial fluid control systems. Designed for monitoring, alarm and control applications, this pressure switch supports an operating range from -0.4 bar to 5 bar, making it suitable for non-corrosive media including water, oil, and air.
Its robust construction and precise adjustment mechanism ensure accurate switching performance for both panel and direct mounting arrangements. The product is equipped with a protective cap for switch point setting at the installation site, simplifying maintenance and operational flexibility.
Rated for AC 230V operation and capable of switching electrical loads up to 10A, the PSM-520 series pressure switch provides versatility in automation, process, and HVAC applications, contributing to efficient system management with minimal downtime.
A female 1/4 in G port, compliant with ISO 228-1, provides straightforward connection to piping or system components. The operating temperature window ranges from -40°C up to 80°C, accommodating demanding industrial environments.
Certified to standards including EN 10277-3, DIN EN 60947-1, RoHS, EN 1652 and EAC, this pressure switch offers confidence in regulatory compliance and system integration. The IP30 ingress protection rating safeguards against dust and debris encountered in typical control panels and machinery.
Wide adjustable pressure range from -0.4 bar to 5 bar for industrial versatility. Suitable for water, oil, air and other non-corrosive fluids. Panel or direct mounting for flexible installation. Operates on AC 230V, 10A load capacity for robust switching.
Female 1/4 in G port, ISO 228-1 thread standard. Operating temperature from -40°C to 80°C; height: 122mm. IP30 rating for basic dust protection. Meets EN 10277-3, DIN EN 60947-1, RoHS, EN 1652 and EAC standards.
Applications include fluid system monitoring, automation, process industry, HVAC, and mechanical control panels. Ideal for use in manufacturing, water treatment, and commercial building systems.
Browse more Pressure Switches from WIKA in the Electronics & Electricals category for reliable industrial automation and fluid control solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable pressure range of this model is from -0.4 bar to 5 bar, making it suitable for various industrial applications.
It is suitable for water, oil, air, and other non-corrosive fluids in industrial environments.
This unit operates at a voltage of 230V.
It can switch electrical loads up to 10A.
It can be mounted either panel or directly, providing flexible installation options.
It features a female threaded port size of 1/4 in G, compliant with the ISO 228-1 standard.
The operating temperature range is from -40°C to 80°C, accommodating demanding industrial conditions.
It has an IP30 rating, providing basic ingress protection against dust and debris.
It meets several standards including EN 10277-3, DIN EN 60947-1, RoHS, EN 1652, and EAC.
The height of this model is 122mm.
The protective cap enables on-site switch point setting adjustments, simplifying maintenance and operational flexibility.
It is designed for fluid system monitoring, automation, process industry, HVAC, and mechanical control panels.
