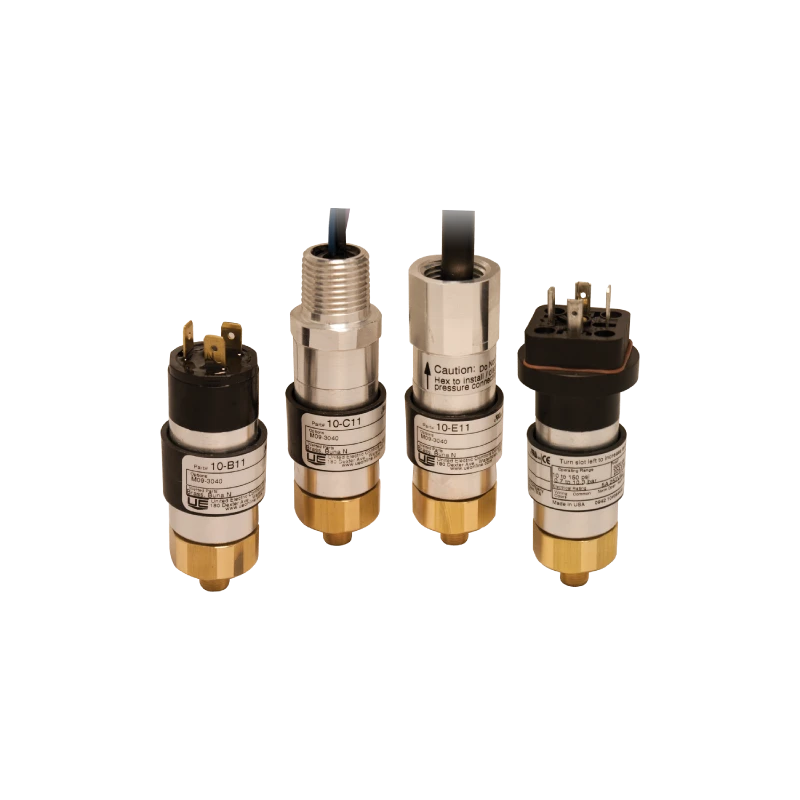

Pressure Switch 10 Series
Specifications
| Vibration | Set point repeats after 10 G| 5-500 CPS |
|---|---|
| Shock | Set point repeats after 50 G| 10 millisecond duration |
| Switch output | One SPDT |
| ENCLOSUR | E Aluminum |
| MAX. MEDIA TEMPERATURE | 200F (93C) with Buna-N sensor| 250F (121C) with Viton sensor |
Key Features
- cULus recognized, CE compliant to Low Voltage Directive and Pressure Equipment Directive Optional ATEX intrinsic safety compliance
- NPT or SAE threaded pressure connections Choice of 7 electrical terminations Optional leadwire/cable lengths
Product Description
Available with seven electrical termination varieties, a choiceof sensors, and several pressure connections, the 10 Series isdesigned to meet requirements for a variety of OEM and industrialapplications. Just 1-1/4 inches in diameter and as small as 3 incheshigh, this compact, cylindrical switch mounts wherever space is ata premium. A reliable and cost-effective switch, the 10 Series isideal for applications with high settings and surges. Among thetough applications in which the product has proven itself are: firesuppression systems, mobile hydraulic units, compactors, balers andlube oil systems.Compact cylindrical pressure switchcULus recognized, CE compliant to Low Voltage Directive and Pressure Equipment Directive0 to 160F (-18 to 71C) with Buna-N constructionSet point repeats after 50 G, 10 millisecond durationSet Point Repeatability: Models 10-12: 1% of full scale range; Models 13-16: 1.5% of full scale range
- Rugged and vibration resistant Proof pressures up to 12,000 psi (827 bar)
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum proof pressure is up to 12,000 psi (827 bar).
It can handle a maximum media temperature of 200°F (93°C) with a Buna-N sensor and 250°F (121°C) with a Viton sensor.
This model features a single SPDT (Single Pole Double Throw) switch output.
There are seven varieties of electrical terminations available for this pressure switch.
The enclosure is made of aluminum.
It has a diameter of 1-1/4 inches and a height as small as 3 inches.
The set point repeatability for models 10-12 is 1% of the full scale range.
The shock resistance allows for set point repeats after 50 G with a 10 millisecond duration.
It is designed for a variety of OEM and industrial applications, including fire suppression systems and mobile hydraulic units.
The vibration resistance allows for set point repeats after 10 G at a frequency range of 5-500 CPS.
Yes, it is cULus recognized and CE compliant with the Low Voltage Directive and Pressure Equipment Directive, with optional ATEX intrinsic safety compliance.
