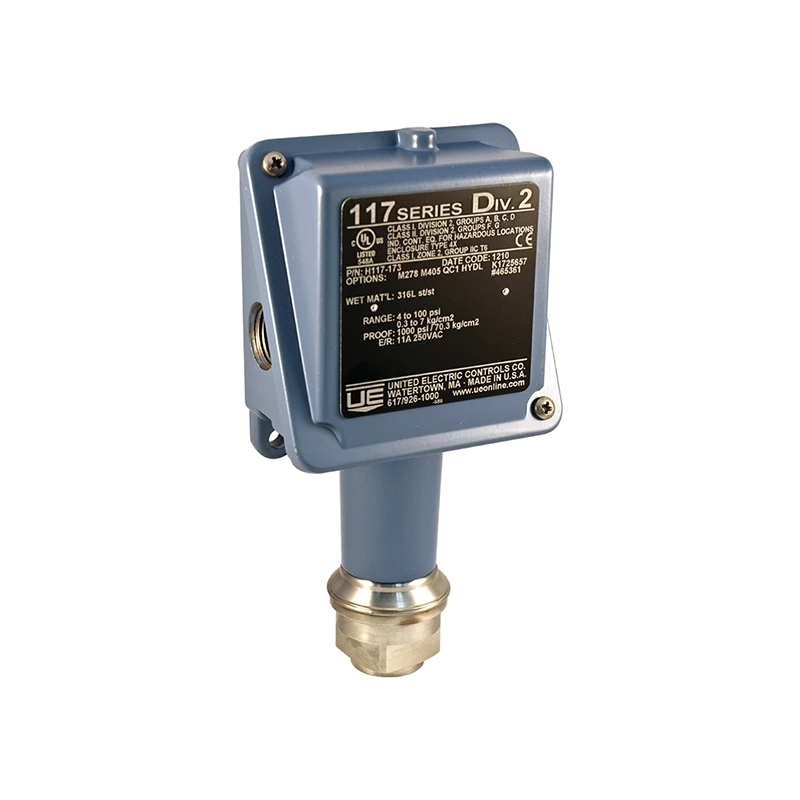

Division 2 Safety Switch 117 Series
Specifications
| Storage Temperature | -65 to 160F (-54 to 71C) |
|---|---|
| Weight | 1.5-6.5 lbs. Varies with model |
| Vibration | Set point repeats after 2.5 G| 5-500 Hz |
| Shock | Set point repeats after 15 G| 10 millisecond duration |
| Switch output | One SPDT hermetically sealed snap action switch| switch may be wired normally open or normally closed| DPDT (option 1190/1195) |
| AMBIENT TEMPERATURE LIMITS | -40 to 160F (-40 to 71C)| except models 520-525| 540-548| 700-706 0 to 160F (-18 to 71C)| set point typically shifts less than 1% of range for a 50F (28C) ambient temperature change |
Key Features
- Epoxy Coated Type 4X Enclosure and Stainless Steel Component Parts Hermetically Sealed Snap Switch, SPDT or DPDT Output NACE MR0175 compliant models
- NACE MR0175 compliant models Terminal Block Wiring Tamper-Resistant Set Point Lock Adjustable Ranges:
Product Description
Approved for Division 2, Zone 2 hazardous and corrosiveatmospheres, and with optional Zone 0 intrinsic safetycompliance, the 117 Series can be used to measure vacuum,pressure, differential pressure, or temperature in a varietyof applications. The rugged, one piece enclosure features aslanted cover for wiring accessibility to the enclosed terminalblock that is wired to either a SPDT or DPDT hermeticallysealed microswitch. All welded, stainless steel pressureconnections and sensors provide superior corrosion resistance NACE compliant and fire-safe protection within theharshest environments. The 117 Series is an ideal choicefor the most demanding applications; typically steel andaluminum mills, chemical and petrochemical plants, pulpand paper mills, wastewater treatment plants, midstream anddownstream oil & gas, and pharmaceutical plants.Class 1 Division 2 safety switch comes in vacuum, differential pressure, and temperature modelsOptional ATEX or EAC intrinsic safety compliance for Zone 0-65 to 160F (-54 to 71C)Set point repeats after 2.5 G, 5-500 HzSet point repeats after 15 G, 10 millisecond duration
- Pressure: 30 Hg Vac to 3500 psi (-1 to 241,3 bar) wc Ranges: 300 wc vacuum to 250 wc pressure (-746, 7 to 622,3 mbar)
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for the Division 2 Safety Switch 117 Series is -40 to 160°F (-40 to 71°C), except for specific models which operate from 0 to 160°F (-18 to 71°C).
This model features a hermetically sealed snap action switch with options for SPDT or DPDT output configurations, allowing it to be wired normally open or normally closed.
The pressure measurement range for this safety switch is from 30 Hg Vac to 3500 psi (-1 to 241.3 bar).
This unit can repeat set points after 2.5 G at frequencies of 5-500 Hz for vibration and after 15 G with a 10 millisecond duration for shock.
Yes, it is approved for Division 2, Zone 2 hazardous and corrosive atmospheres, with optional compliance for Zone 0 intrinsic safety, and is NACE MR0175 compliant.
The weight of this safety switch varies with the model, ranging from 1.5 to 6.5 lbs.
This model is suitable for demanding applications such as steel and aluminum mills, chemical and petrochemical plants, pulp and paper mills, wastewater treatment plants, and oil & gas industries.
The storage temperature range for this safety switch is -65 to 160°F (-54 to 71°C).
The set point typically shifts less than 1% of range for a 50°F (28°C) ambient temperature change.
The terminal block can be wired to either a SPDT or DPDT hermetically sealed microswitch, providing flexibility in installation.
Yes, there are optional features including ATEX or EAC intrinsic safety compliance for Zone 0 applications.
