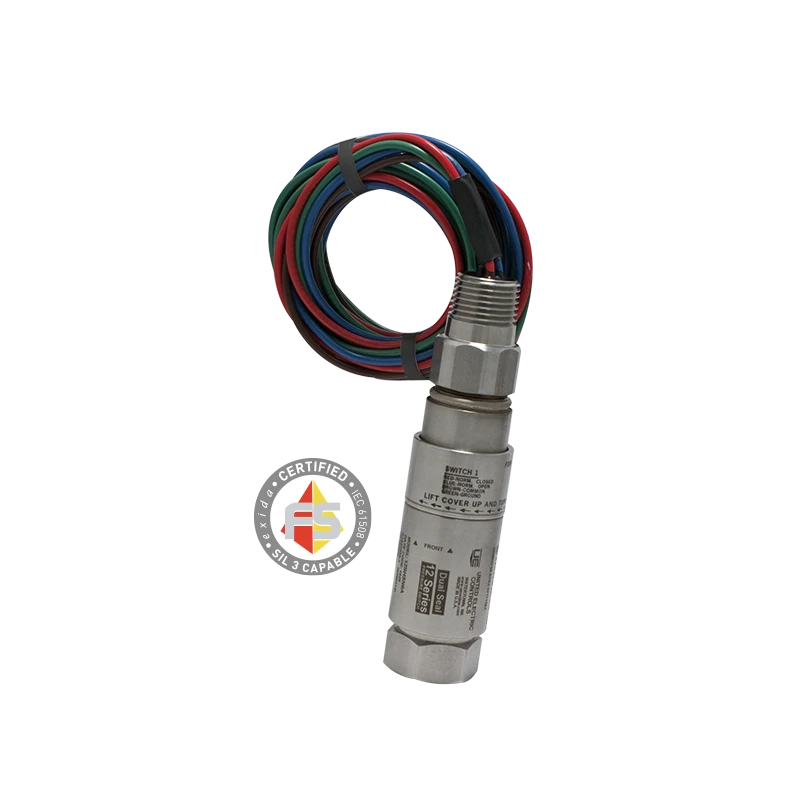

Hazardous Location Switch 12 Series

Name: Hazardous Location Switch 12 Series
Brand: Potence
SKU: AAKYT
Price: 0.78 USD
Availability: InStock



SKU AAKYT Category Safety Switches Brand Potence Condition New

Specifications

Resistance to vibration	Preloading of the electrical switch helps reduce contact chatter.
Small size	Belleville springs are simple in appearance\| but can deliver a heavy load with a relatively small deflection\| contributing to a compact design
Deadbands	The Belleville is a negative-rate snap acting device\| so on-off deadband values are wider at the low end of the range. To minimize deadbands\| select a model with a set point at the higher end of the range whenever possible
Set point stability	The switch performs under challenging environmental conditions such as vibration and temperature changes. In addition\| minimal movement of components reduces sensor fatigue\| thereby increasing life and accuracy.

Key Features

UL, cUL, ATEX and IECEx approved for Div. 1 or Zone 1 hazardous locations; CE compliant Dual seal compliant to ANSI/ISA 12.27.01 & NEC 501.17 Many models compliant to NACE MR0175.
Snap-acting Belleville spring for long life, vibration resistance and stability Optional Hastelloy® and Monel® sensor material for corrosive media

Product Description

12 Series hazardous location switches are ideal for operation intough applications where space is at a premium. A snap-actionBelleville spring assembly is used in most models to provide vibrationresistance and prolonged switch life. The 316 stainless steel enclosureand hermetically sealed switch provide rugged protection from theenvironment. Approved for use in hazardous locations worldwide, the12 Series is installed within applications ranging from offshore oilrigs to rotating equipment, and more.Pressure, Vacuum, Differential Pressure and Temperature switches for Hazardous areaUL, cUL, ATEX and IECEx approvedSet Point: Temperature models: 1% of adjustable rangeEnclosure 316 Stainless SteelSwitch Output:Code S: One SPDT, hermetically sealedCode D: Two SPDT for DPDT action, hermetically sealed. Available for pressure models only

Mounting bracket available for retrofit applications 72 leadwires 3-year warranty

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It is UL, cUL, ATEX, and IECEx approved for Division 1 or Zone 1 hazardous locations and CE compliant.

Optional sensor materials include Hastelloy® and Monel® for use in corrosive media.

The enclosure is made of 316 stainless steel, providing rugged protection from environmental conditions.

It features a snap-action Belleville spring assembly that provides vibration resistance and prolonged switch life.

The switch maintains stability under challenging conditions, such as vibration and temperature changes, with minimal movement of components to reduce sensor fatigue.

The Belleville spring provides wider on-off deadband values at the low end of the range; selecting a model with a higher set point can minimize deadbands.

It is suitable for applications ranging from offshore oil rigs to rotating equipment in hazardous environments.

Yes, a mounting bracket is available for retrofit applications.

It comes with 72 lead wires for electrical connections.

It includes a 3-year warranty.

The switch is designed to perform reliably under challenging environmental conditions, ensuring accuracy and longevity.
