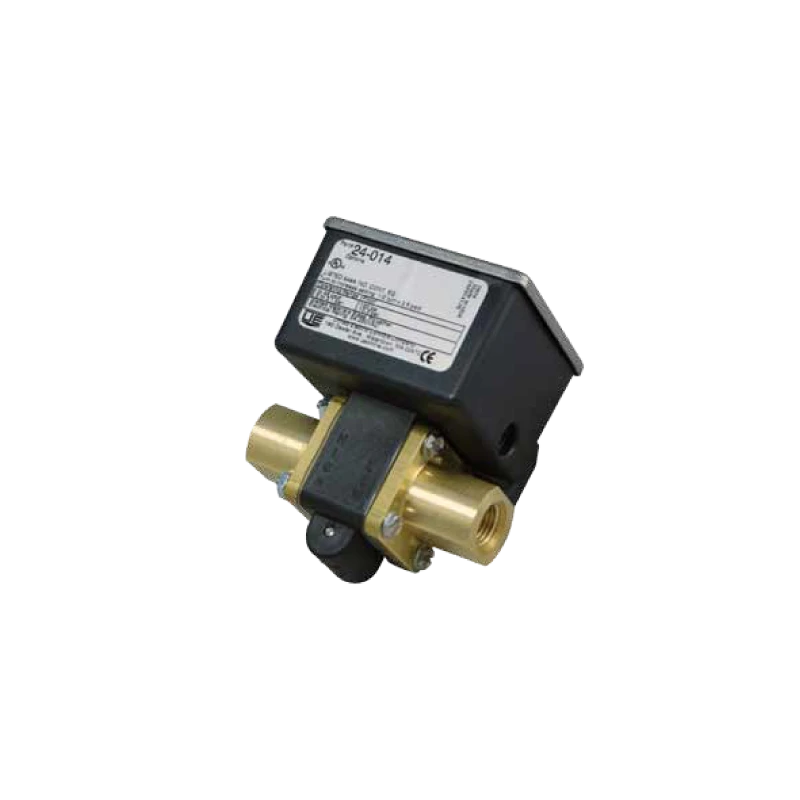

Differential Pressure Switch 24 Series
Specifications
| Weight | 6.5 oz. |
|---|---|
| Vibration | Set point repeats after 2.5G| 5-500 Hz |
| Shock | Set point repeats after 15G| 10 millisecond duration |
| PRESSURE CONNECTION | Models 013-014 1/4 NPT (female) brass| models 011-012 1/4 NPS (female) FDA compliant Udel polysulfone| non-tapered to minimize connection stress with 1/4 NPT (male) fittings - max torque is 2-ft.lbs. |
| MAX MEDIA TEMPERATURE | 200F (93C) at 100 psi working pressure |
| MOUNTING & INSTALLATION | Surface mount with two screws through clearance holes| or mount by pressure connections |
| AMBIENT TEMPERATURE 3 | 0 to 160F (-1 to 71C). Set point typically shifts less than 0.6% of range for a 50F (28C) ambient temperature change| consult factory for special ratings |
Key Features
- UL listed and cUL certified. CE compliant to low voltage directive and pressure equipment directive Differential pressure measurement
- External stainless steel multi-turn adjusting screw OEM capabilities include external adjustment knob with or without reference scale
Product Description
The cost-effective 24 Series Delta-Pro differential pressureswitches offer a unique blend of compact size, excellentperformance, and environmental protection. Available withbrass or poly sulfone pressure connections, the Delta-Pro isideal for applications involving hot or cool air, water, gas oroil. The precision snap-acting switch and sensitive diaphragmscombine to provide a narrow dead band and repeatability ofapproximately 1% of full scale range. A convenient, externallyaccessible adjustment screw is multi-turn to provide easy setpoint adjustability. The force-balanced design gives the Delta-Proexcellent vibration resistance Delta-Pro differential pressure switch offers a unique blend of compact size, excellent performance, and environmental protection for OEM applicationsUL listed and cUL certified. CE compliant to low voltage directive and pressure equipment directive30 to 160F (-1 to 71C)Shock: Set point repeats after 15G, 10 millisecond durationVibration: Set point repeats after 2.5G, 5-500 Hz
- Typical applications include filter monitoring and proof-of-flow. The 24 Series is used within the water & wastewater, bioprocessing, food & beverage, HVAC and gas processing industries.
