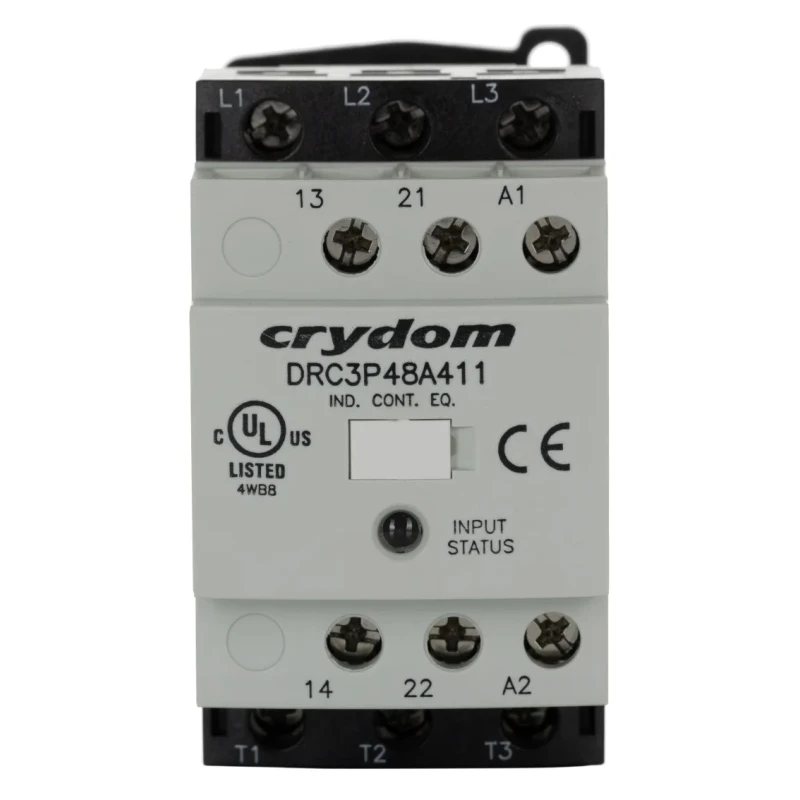

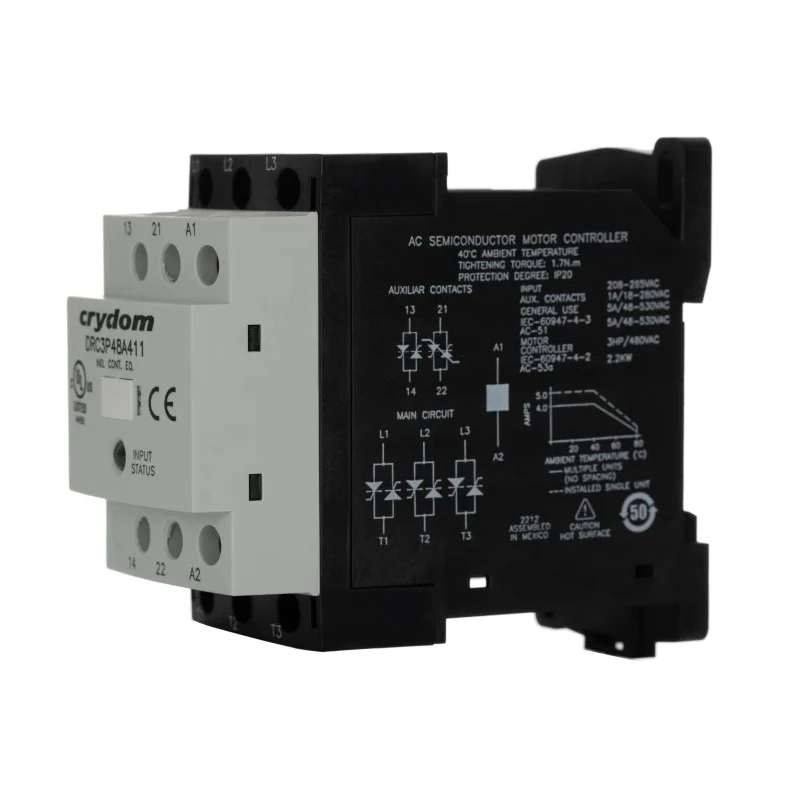

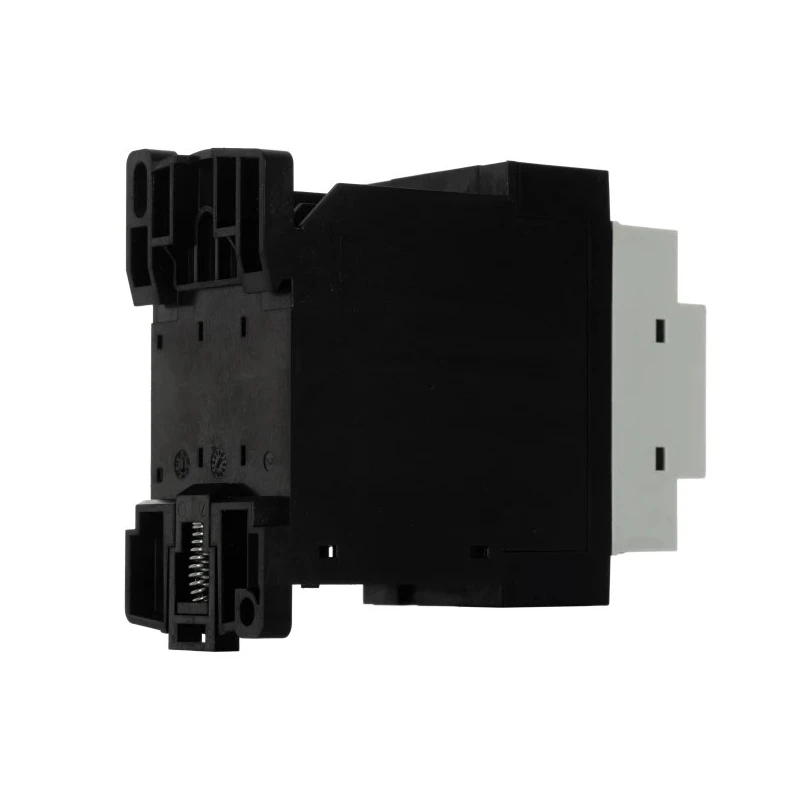

Crydom Solid State Contactor 3-Pole 230V AC, 8 mA Current, 1.75 kW Power, 1 NO/1 NC, DIN Rail Mount DRC3P48A411
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Function | Reversing |
| Length | 45.3mm |
| Model | DRC3P48A411 |
| Depth | 95.6mm |
| Width | 86.7mm |
| Mount Type | DIN Rail |
| Series | DRC |
| Power Rating | 1.75kW |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Contact Voltage | 230V ac |
| Normal State Configuration | 1 NO/1 NC |
| Contact Current | 8mA |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 4.8A |
| Control Circuit Voltage Uc | 265V |
| Pole and Throw Configuration | 3P |
Key Features
- Equipped with 1 normally open and 1 normally closed contact configuration.
- Features a compact DIN rail mount for easy installation.
- Operational temperature ranges from -30°C to 80°C for harsh environment reliability.
- Wide control circuit voltage of 265V supports versatile applications.
- Includes 2 auxiliary contacts configured as 1 NO/1 NC for added functionality.
- Screw terminal type ensures secure electrical connections.
- Compliance with CCC, CE, CSA C22.2 No.14, C-UL-US, IEC 60947-4-2, RoHS, UL 508 standards guarantees quality and safety.
- Compact dimensions maximize DIN rail space efficiency.
Product Description
Crydom DRC3P48A411 solid state contactor is a high-quality, reversing 3-pole contactor designed for industrial automation and control gear applications. Operating at a contact voltage of 230V AC and a power rating of 1.75 kW, it supports efficient load switching with an 8 mA contact current. Its integrated LED indicator allows for easy status monitoring.
This contactor can reliably function across a wide temperature range from -30°C to 80°C, supporting use in harsh industrial environments. Featuring a DIN rail mounting type, it offers compact dimensions of 45.3mm length, 86.7mm width, and 95.6mm depth, optimizing space on control panels.
It includes 2 auxiliary contacts (1 NO/1 NC) and screw type terminals that ensure secure electrical connections. The unit’s control circuit voltage is rated at 265V, and it supports an operational current Ie of 4.8 A. The contactor meets multiple safety and quality standards including CCC, CE, CSA C22.2 No.14, C-UL-US, IEC 60947-4-2, RoHS, and UL 508.
Designed to provide long operational life without mechanical wear due to its solid state technology, this contactor is ideal for use in lighting systems, medical equipment, and other industrial applications requiring reliable and fast switching. It offers reversing function capability with a 3-pole and throw configuration.
Equipped with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact configuration. Designed for DIN rail mounting enabling easy installation and replacement. Robust operational temperature range ensures reliability in varied environments.
Compact form factor preserves valuable panel space. Compliance with international standards assures performance and safety. Screw terminals allow for secure and convenient wiring. Control circuit voltage of 265V supports a broad range of control systems.
Integrated LED indicator offers simple operational status visibility.
This Crydom DRC solid state contactor is a dependable solution in electronics and electrical automation, widely applicable in industrial control panels, manufacturing, medical devices, and HVAC systems. For further precision and reliable control, explore more Crydom products and Solid State Contactors in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 1.75 kW.
It operates within a temperature range of -30°C to 80°C.
This unit features a 3-pole configuration.
It is designed for DIN rail mounting, allowing for easy installation.
The contact voltage for this model is 230V AC.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
The operational current (Ie) is rated at 4.8 A.
The control circuit voltage is rated at 265V.
The dimensions are 45.3mm in length, 86.7mm in width, and 95.6mm in depth.
It features screw type terminals for secure electrical connections.
This model complies with several standards including CCC, CE, CSA C22.2 No.14, C-UL-US, IEC 60947-4-2, RoHS, and UL 508.
It is suitable for industrial automation, lighting systems, medical equipment, and HVAC systems.
