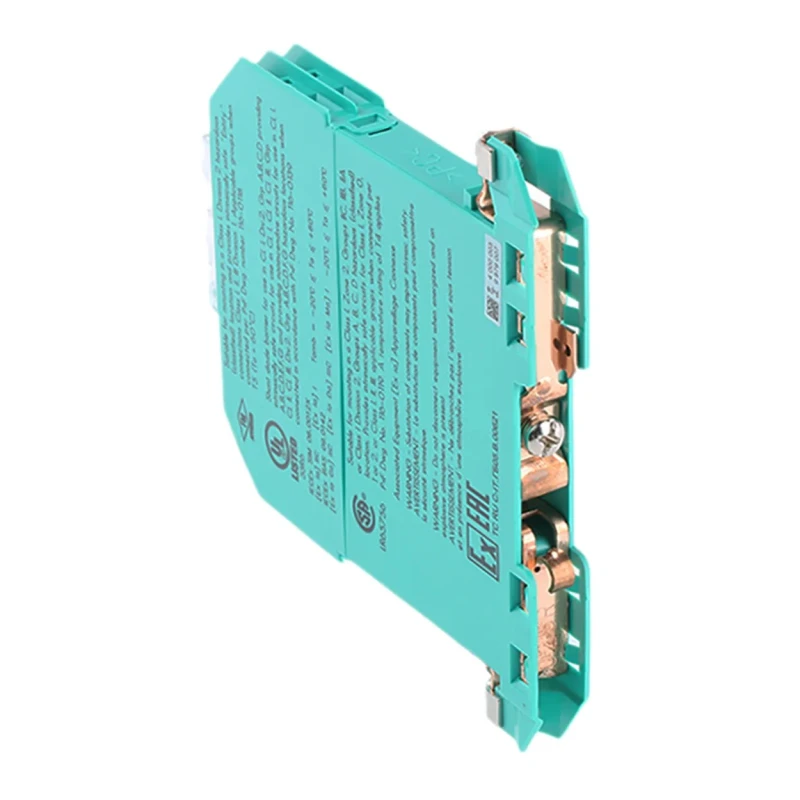

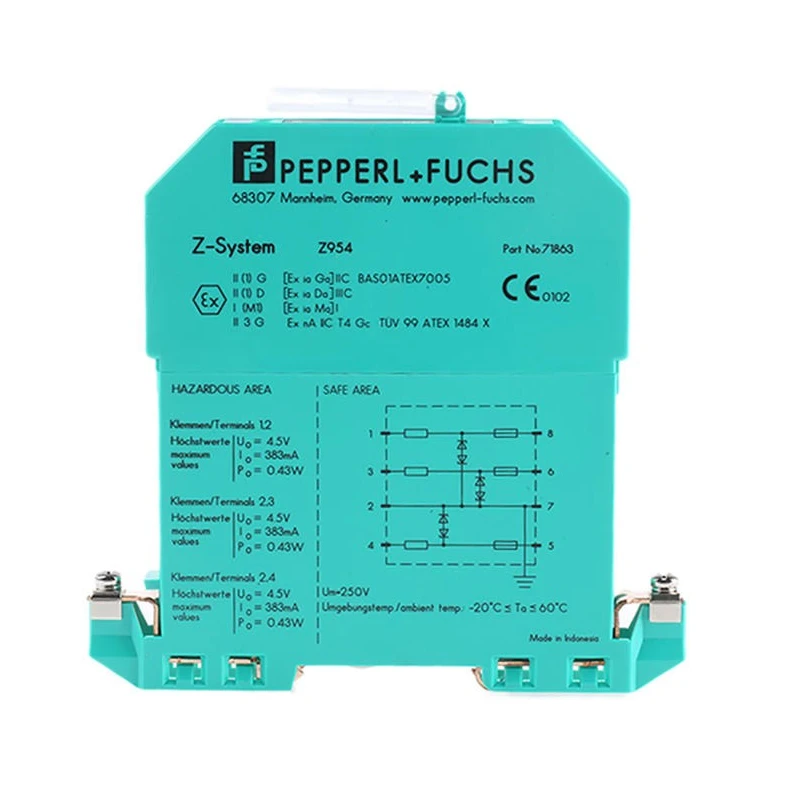

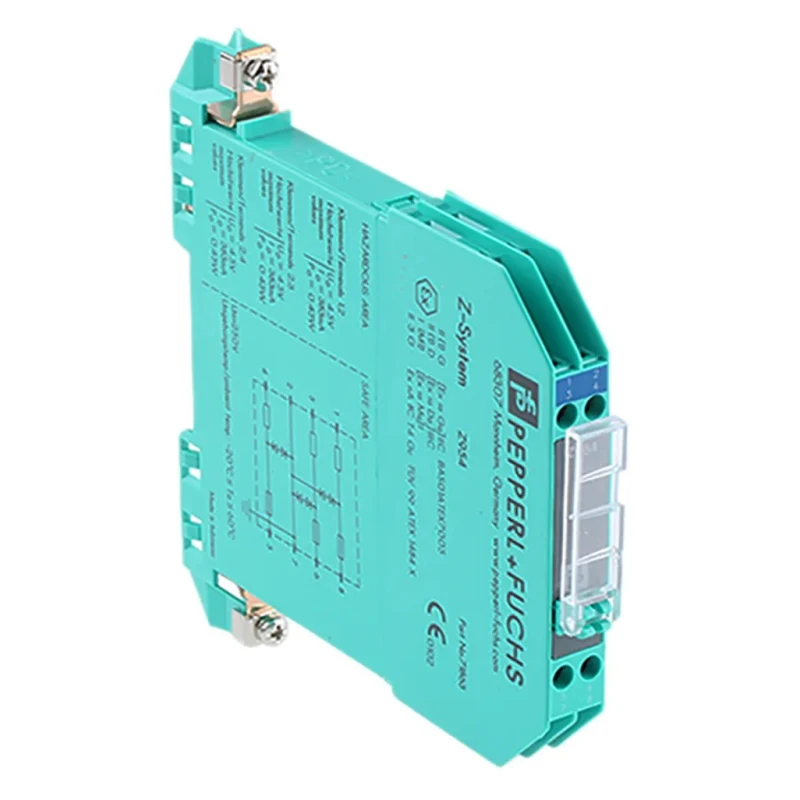

Pepperl + Fuchs 3 Channel Zener Barrier, ATEX Certified, DIN Rail Mount, 250V AC Supply Voltage Z954
Specifications
| Country of Origin | the event of a failure |
|---|---|
| Brand | Pepperl + Fuchs |
| Model | Z954 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | Z954 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 3 |
| Supply Voltage | 250V ac |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | IEC, CE, FM, UL |
| Barrier Type | Zener Barrier |
| Safety Current Resistance | 27.27Ω |
| Maximum Safety Current | 383mA |
| Maximum Safety Voltage | 250V ac |
| Idec 3 Channel Zener Barrier, ATEXBrand | Idec |
Key Features
- This barrier has 3 channels to safely transmit electrical signals.
- It features a supply voltage rating of 250V AC for robust operation.
- The device includes screw terminals for secure electrical connections.
- Designed with a safety current resistance of 27.27Ω to ensure circuit protection.
- Operates reliably between -20°C and 60°C operating temperatures.
- Complies with IEC, CE, FM, and UL standards for safety and reliability.
- Enables use in hazardous environments with ATEX certification.
- IP20 rated for protection against solid object ingress.
Product Description
Pepperl + Fuchs Z954 3 Channel Zener Barrier is an intrinsically safe electrical barrier certified for hazardous area use under ATEX standards. It is designed for DIN rail mounting and operates at a supply voltage of 250V AC, enabling safe signal transmission and circuit protection in demanding industrial environments.
This Zener barrier contains three channels and features a safety current resistance of 27.27 ohms to protect intrinsic safety circuits from fault conditions. Screw terminals allow secure and reliable electrical connections in control panels and field installations.
The device operates effectively in ambient temperatures ranging from -20°C to 60°C and offers IP20 ingress protection. It meets international standards IEC, CE, FM, and UL, ensuring compatibility and safety compliance for industrial automation and process control systems.
Its robust construction using Makrolon® enhances durability and electrical insulation. The barrier is commonly applied in thermocouple and intrinsic safety circuits, where it acts as an effective isolation barrier to prevent hazardous energy transfer.
This barrier has 3 channels to safely transmit electrical signals. It features a supply voltage rating of 250V AC for robust operation. The device includes screw terminals for secure electrical connections. Designed with a safety current resistance of 27.27Ω to ensure circuit protection.
Operates reliably between -20°C and 60°C operating temperatures. Complies with IEC, CE, FM, and UL standards for safety and reliability. Enables use in hazardous environments with ATEX certification. IP20 rated for protection against solid object ingress.
Typical use includes intrinsic safety thermocouple applications and isolation barriers. Manufactured from durable Makrolon® material for electrical safety.
This product is widely used in industrial automation, manufacturing plants, chemical processing, and other environments requiring reliable intrinsic safety solutions. For more options and detailed technical data, browse through the Signal Conditioners & Isolators category on EnvMart.
Explore more products in our Signal Conditioners & Isolators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Z954 Zener barrier has a supply voltage rating of 250V AC.
This model features three channels for safe signal transmission.
It operates reliably between -20°C and 60°C.
The device includes screw terminals for secure electrical connections.
It complies with IEC, CE, FM, and UL standards for safety and reliability.
The Z954 is designed with a safety current resistance of 27.27Ω.
The Z954 has an IP20 rating for protection against solid object ingress.
This model is designed for DIN rail mounting.
The maximum safety current for the Z954 is 383mA.
It is commonly applied in thermocouple and intrinsic safety circuits as an isolation barrier.
The barrier is manufactured from Makrolon® material, enhancing electrical insulation.
The maximum safety voltage for the Z954 is 250V AC.
