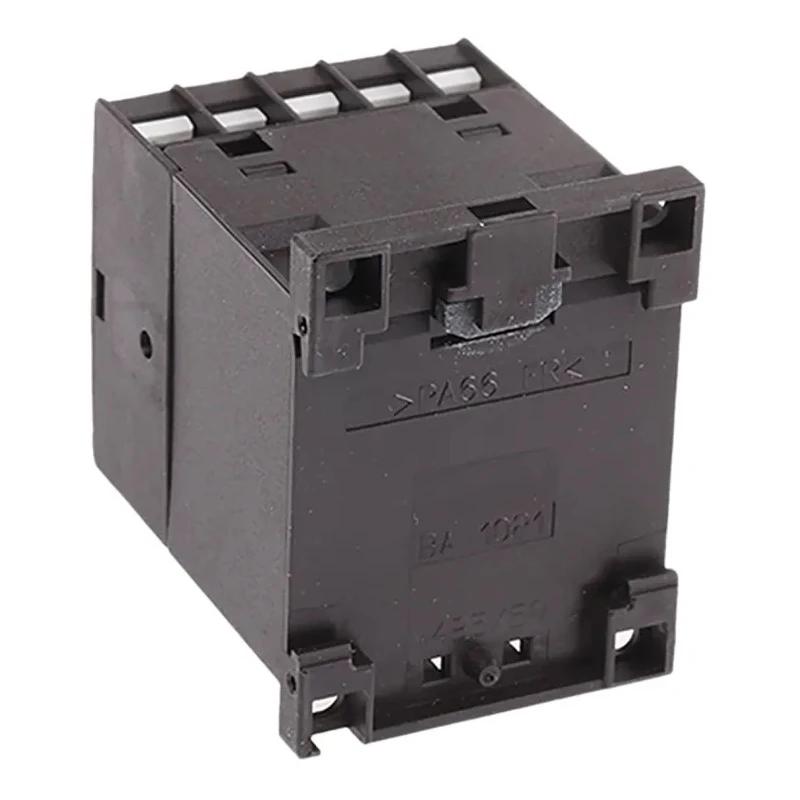

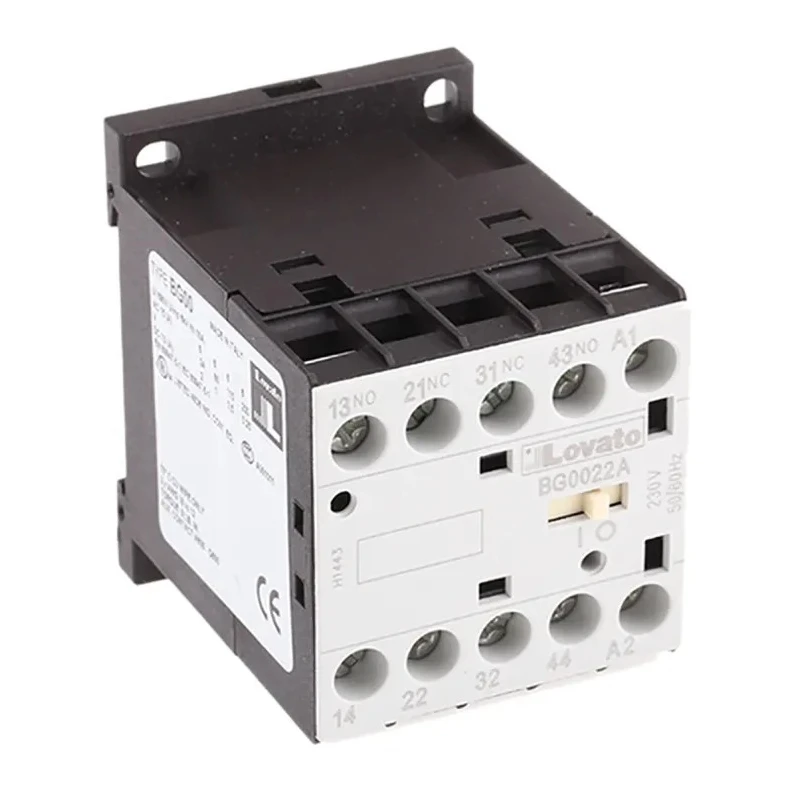

Lovato Electric BG Contactor Relay 230V AC Coil, 4-Pole, 10A, 2 NO/2 NC, 690V AC 11BG0022A230
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Lovato Electric |
| Function | Contactor, Control Relay |
| Length | 58mm |
| Model | 11BG0022A230 |
| Depth | 57mm |
| Width | 44mm |
| Mount Type | DIN Rail |
| Series | BG |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 2 NO/2 NC |
| Contact Current | 10A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 630A |
| Contactor Application | Auxiliary Contactor, Control Relay |
| Pole and Throw Configuration | 4 |
| Rated Insulation Voltage Ui | 690V |
| RS PRO Contactor, 230 V ac Coil, 4-Pole, 10 A, 2NO + 2NC, 400 V acBrand | RS PRO |
| WEG, CWCA0 Overload Relay 2 NO/2 NC, 10A Contact Rating, 230V ac 4Brand | WEG |
Key Features
- The relay includes 2 normally open and 2 normally closed contacts for versatile control functions.
- Designed for DIN rail mounting with screw terminal connections to ensure secure installation.
- Operates reliably between -40°C and 60°C to suit varied environments.
- Rated insulation voltage of 690V and operational current of 630A enhances durability and performance.
- Compact dimensions of 58mm length, 44mm width, and 57mm depth allow easy integration.
- Complies with multiple international standards including IEC/EN 60947-1 and UL 60947-5-1 for quality assurance.
- Finger-safe IP20 terminal protection maximizes user safety during installation and operation.
- Auxiliary contact configuration matches main contacts with 2 NO and 2 NC contacts for extended control options.
Product Description
Lovato Electric 11BG0022A230 Contactor Relay is a premium quality 4-pole control relay designed for automation and electrical control applications. It features a robust 230V AC coil and supports a 10A contact current with contact voltage up to 690V AC, making it suitable for industrial and commercial electrical control circuits.
The device includes 2 normally open (NO) and 2 normally closed (NC) contacts, paired with 4 auxiliary contacts configured similarly, providing flexible switching options. Its DIN rail mounting system with screw terminals ensures ease of installation in electrical panels.
Engineered for durability, it functions reliably across a temperature range from -40°C to 60°C. The relay has a rated insulation voltage of 690V and can handle an operational current of 630A, verifying its suitability for demanding control environments.
Its compact design with dimensions of 58mm length, 44mm width, and 57mm depth allows for efficient use of panel space. Additionally, the IP20 finger-safe terminal protection offers enhanced safety during handling and operation.
The product complies with recognized standards including CSA C22.2 No 60947-1, IEC/EN 60947-5-1, UL 60947-1, and others, attesting to its quality and reliability in industrial applications.
The relay offers 4-pole functionality with 2 NO and 2 NC contacts for flexible control. Mounts on 35mm DIN rails with secure screw terminal connections. Suitable for auxiliary contactor and control relay applications. Operates safely and reliably from -40°C to 60°C ambient conditions.
Rated for 10A contact current and 690V contact voltage for varied electrical systems. Compact size optimizes panel installation space with 58mm x 44mm x 57mm dimensions. Meets international safety and performance standards including IEC and UL certifications.
Includes finger-safe IP20 terminal protection enhancing user safety.
This Lovato Electric contactor relay is ideal for industrial, laboratory, construction, manufacturing, and HVAC control applications requiring reliable switching performance. Explore similar high-quality contactors and control relays in the Electronics & Electricals category at EnvMart.
