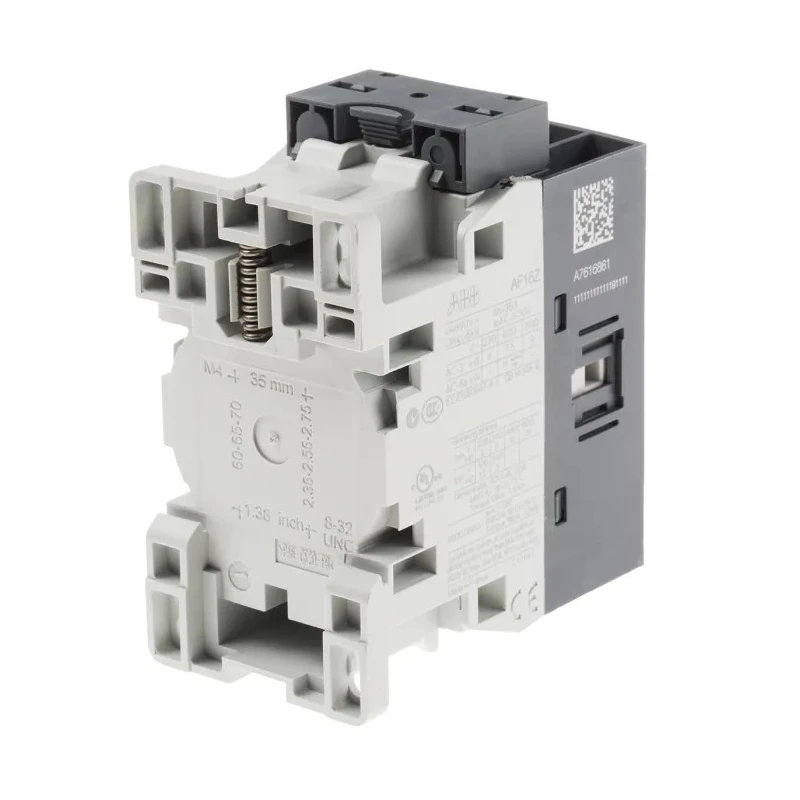

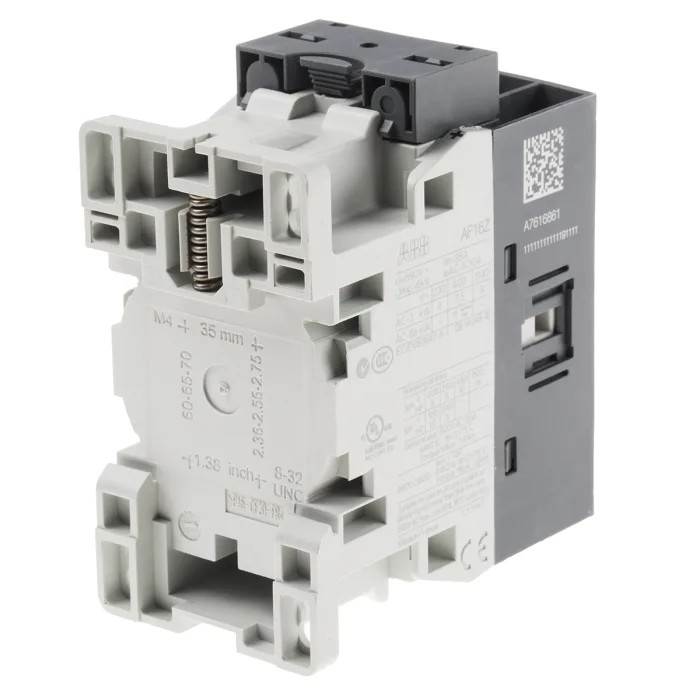

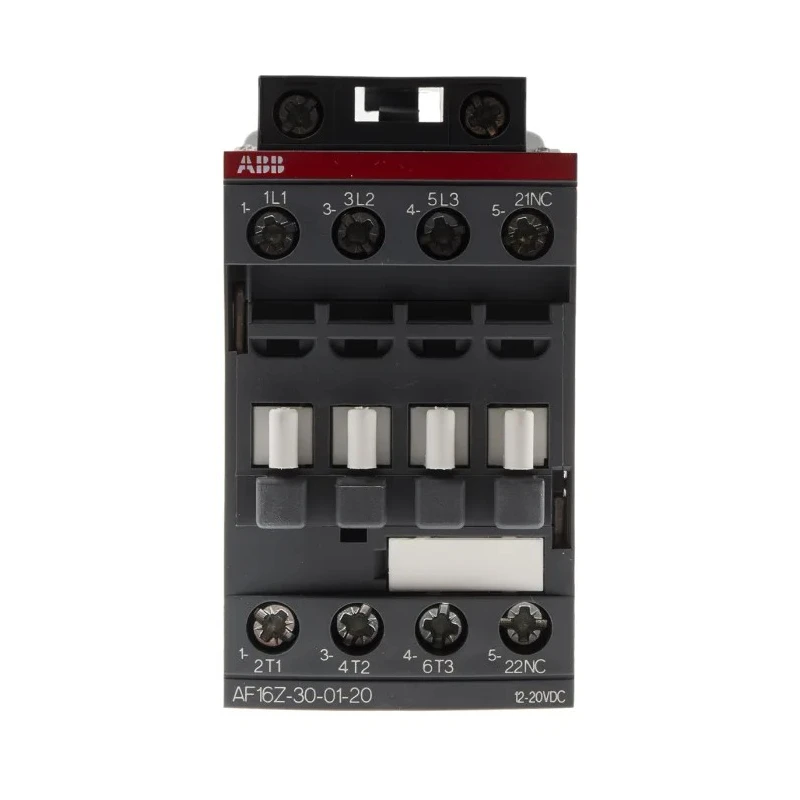

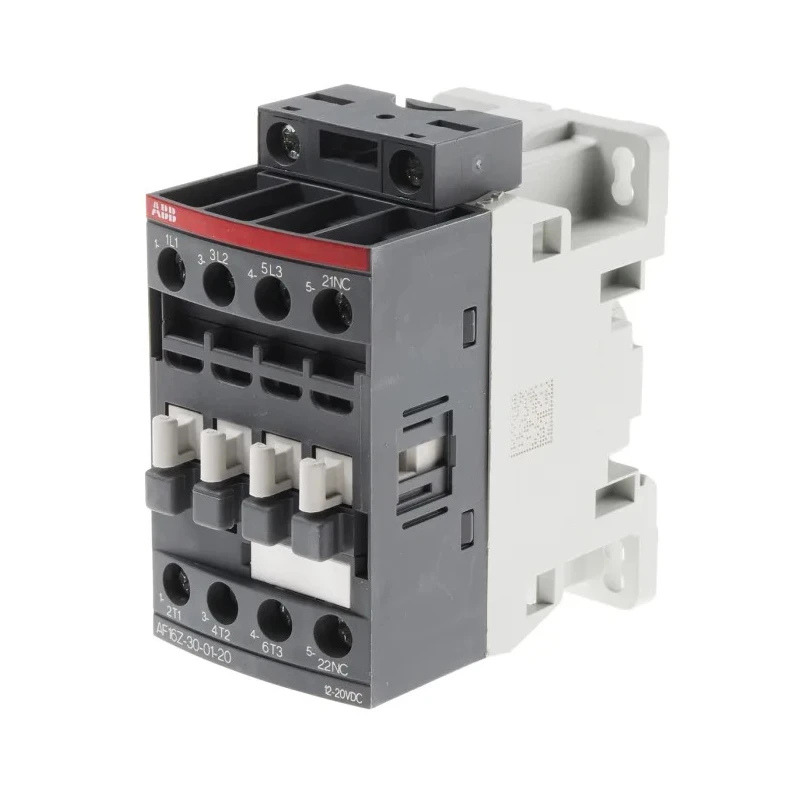

ABB Industrial Control Contactor AF16Z 3-Pole, 12-20 V DC Coil, 10.5 A, 7.5 kW, 690 V AC, DIN Rail Mount AF16Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Function | Control Unit |
| Length | 80mm |
| Model | AF16Z |
| Depth | 77mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | AF16Z |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC 60947-4-1 |
| Contact Voltage | 690V ac |
| Coil Voltage | 12, 20V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 10.5A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 30A |
| Control Circuit Voltage Uc | 20V dc |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3P |
Key Features
- Versatile coil voltage range of 12 to 20 V DC supports various control systems.
- Compact DIN rail mount design saves panel installation space.
- 3 normally open contacts and 1 normally closed auxiliary contact for flexible control.
- Robust contactor suitable for motor control up to 7.5 kW power rating.
- Operational temperature range from -40 °C to 70 °C supports harsh industrial environments.
- Screw terminal type ensures secure and easy wiring connections.
- Meets IEC 60947-4-1 standard for industrial contactors.
- Advanced surge protection reduces energy consumption and prolongs device life.
Product Description
ABB AF16Z industrial control contactor (Model AF16Z) is designed for robust motor control applications requiring a coil voltage range of 12 to 20 V DC and contact voltage rating of 690 V AC. This compact 3-pole contactor is suitable for DIN rail mounting, offering space-saving installation in control panels. It can handle a contact current of 10.5 A and power ratings up to 7.5 kW, making it ideal for controlling three-phase motors in multiple industrial sectors.
The contactor includes one normally closed and three normally open auxiliary contacts, providing enhanced control functionality within electrical systems. Its screw terminal connections facilitate straightforward and secure wiring during installation. Designed to operate effectively across extreme temperature ranges from -40 °C to 70 °C, it is well-suited for demanding industrial environments.
Compliance with IEC 60947-4-1 standards ensures high performance and reliability for industrial automation systems. The contactor's compact dimensions of 80 mm length, 45 mm width, and 77 mm depth allow for efficient panel layout without compromising functionality. Surge protection features contribute to energy savings and equipment longevity.
Applications include manufacturing equipment motor control, HVAC system power management, packaging machinery operation, and conveyor motor control, making the ABB AF16Z a versatile component for industrial automation.
Versatile coil voltage range of 12 to 20 V DC supports various control systems. Compact DIN rail mount design saves panel installation space. 3 normally open contacts and 1 normally closed auxiliary contact for flexible control.
Robust contactor suitable for motor control up to 7.5 kW power rating. Operational temperature range from -40 °C to 70 °C supports harsh industrial environments. Screw terminal type ensures secure and easy wiring connections.
Meets IEC 60947-4-1 standard for industrial contactors. Compact dimensions: 80 mm length, 45 mm width, and 77 mm depth. Advanced surge protection reduces energy consumption and prolongs device life. Suitable for applications in manufacturing, HVAC, packaging, and conveyor motor control.
Explore more industrial automation and control gear products from ABB and related categories on EnvMart for efficient, reliable equipment selection.
Explore more products in our Contactors & Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ABB AF16Z contactor has a power rating of 7.5 kW.
This model supports a coil voltage range of 12 to 20 V DC.
The contactor has dimensions of 80 mm in length, 45 mm in width, and 77 mm in depth.
The contact voltage rating for the AF16Z is 690 V AC.
This contactor has 3 poles.
The ABB AF16Z is designed for DIN rail mounting.
The operational temperature range is from -40 °C to 70 °C.
The maximum contact current for the AF16Z is 10.5 A.
The contactor includes 1 normally closed auxiliary contact and 3 normally open contacts.
It meets the IEC 60947-4-1 standard for industrial contactors.
This model is suitable for applications such as motor control in manufacturing equipment, HVAC systems, packaging machinery, and conveyor systems.
The contactor uses screw terminal connections for secure and easy wiring.
