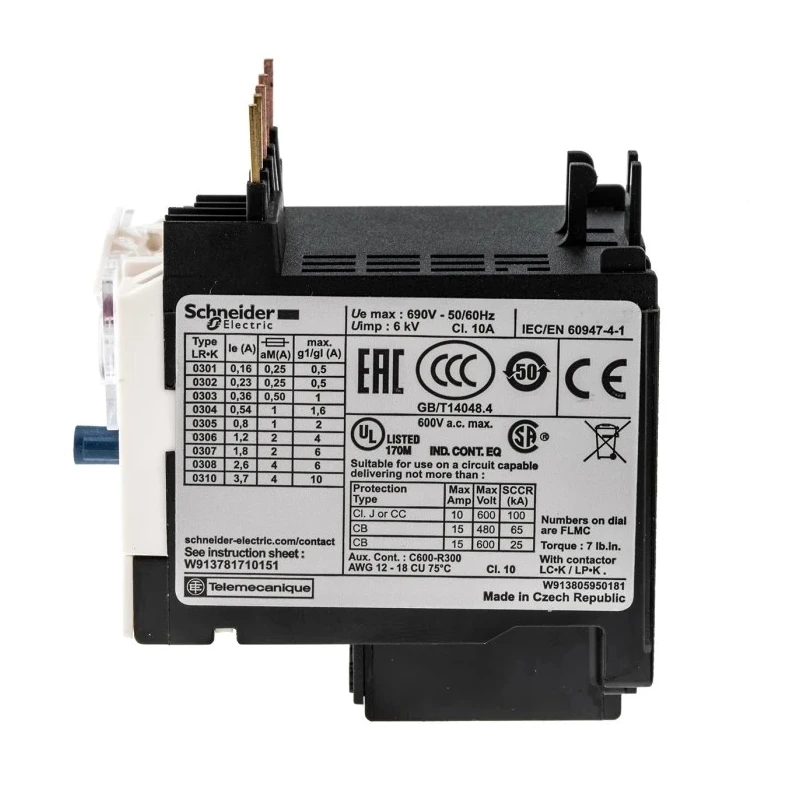

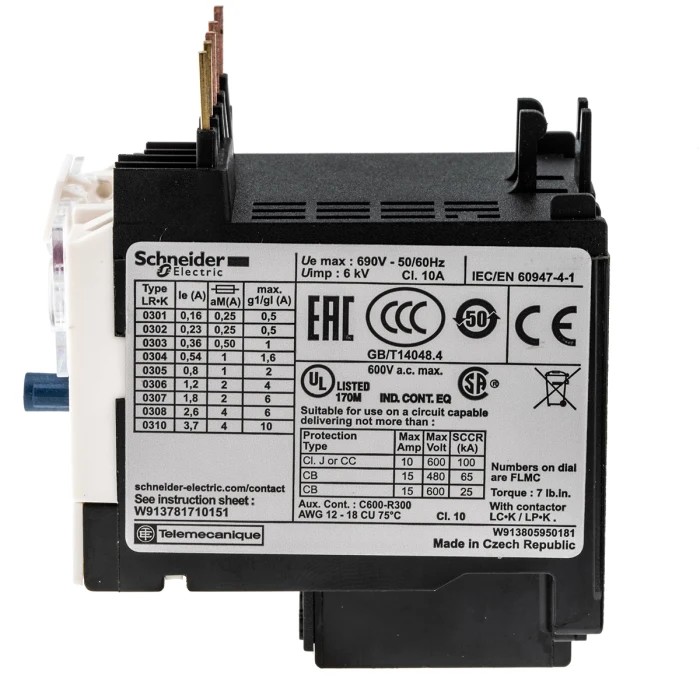

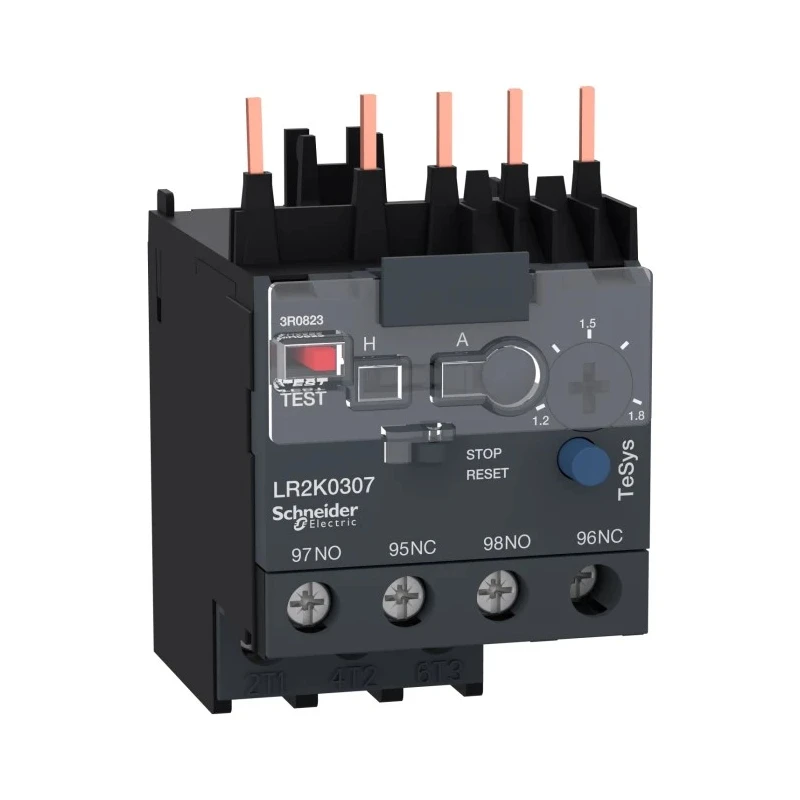

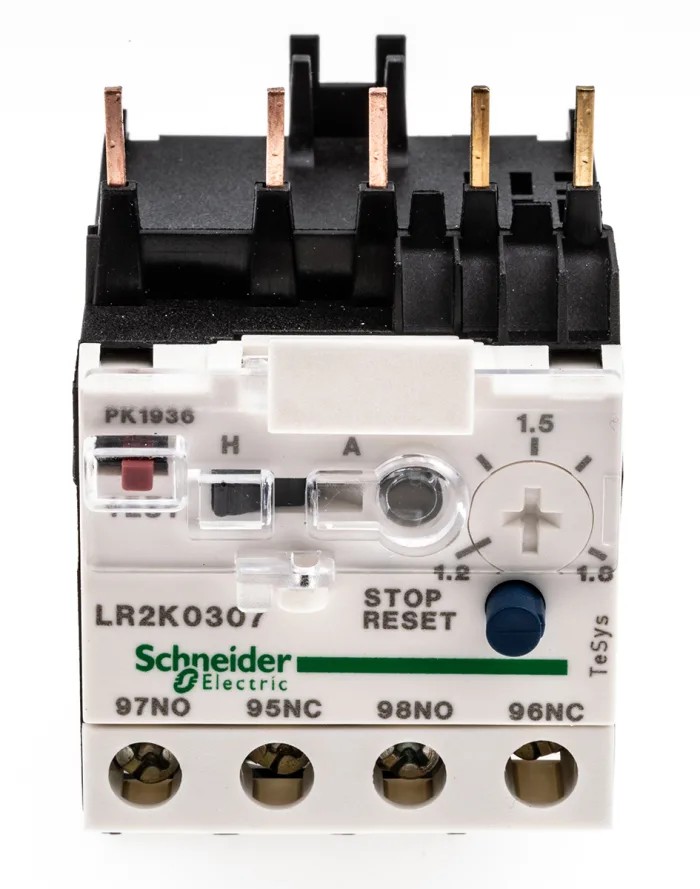

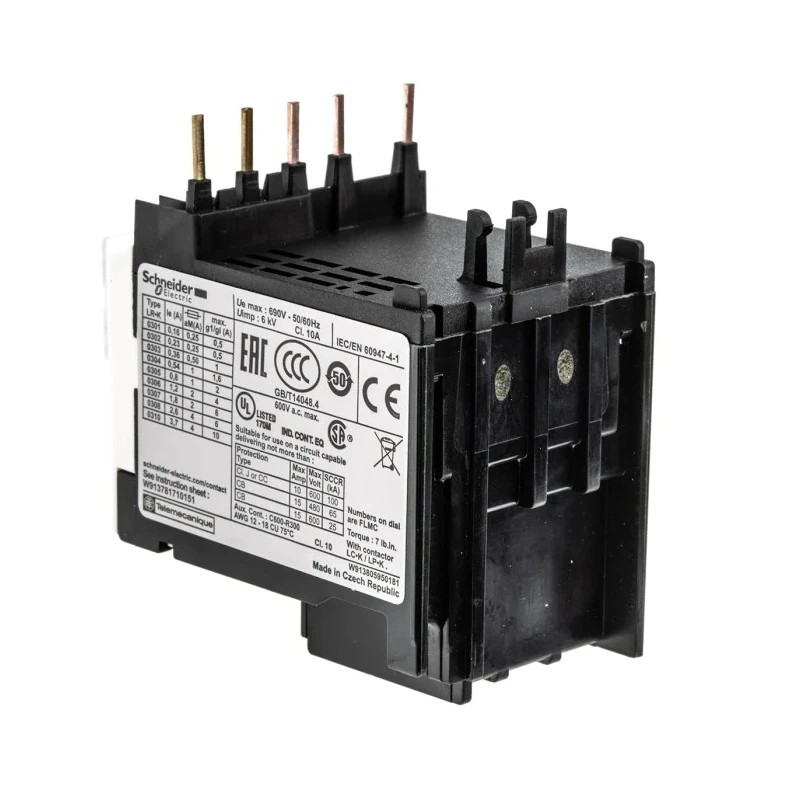

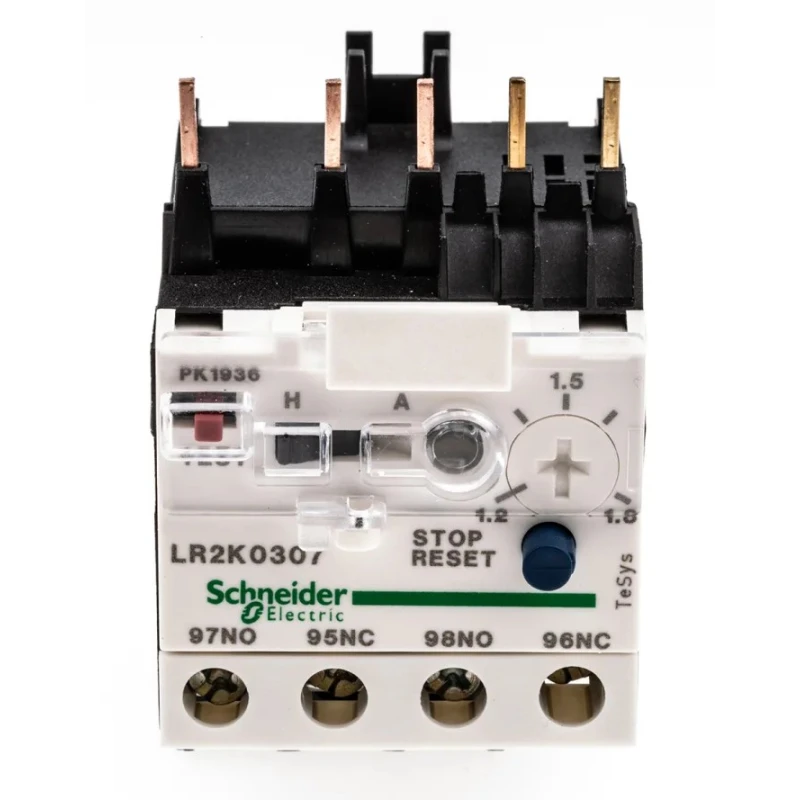

Schneider Electric TeSyS LR Thermal Overload Relay 1 NO/1 NC, 1.2-1.8A Adjustable Current, 100W Power Rating, 250 V LR2K0307

Name: Schneider Electric TeSyS LR Thermal Overload Relay 1 NO/1 NC, 1.2-1.8A Adjustable Current, 100W Power Rating, 250 V LR2K0307
Brand: Schneider Electric
SKU: 180432
Price: 71.38 USD
Availability: InStock



Category Thermal Overload Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	Czech Republic
Brand	Schneider Electric
Length	116mm
Model	LR2K0307
Depth	65mm
IP Rating	IP2X
Width	45mm
Mount Type	DIN Rail
Series	TeSyS LR
Power Rating	100W
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-20°C
Terminal type	Screw
Contact Voltage	690V ac
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	1.8A
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3
Control Voltage	250, 690V dc
FLC Motor Rating	1.2, 1.8A
Adjustable Current Range	1.2 → 1.8 A

Key Features

This relay supports a motor full load current (FLC) range of 1.2 to 1.8 amperes.
It features both automatic and manual reset methods for operational flexibility.
The device is designed with 1 normally open (NO) and 1 normally closed (NC) contacts for control applications.
Compact dimensions of 45mm width, 65mm depth, and 116mm length allow easy mounting on DIN rails.
Supports screw clamp terminals compatible with solid and flexible cables.
Suitable for operating temperatures from -20°C to +55°C, making it reliable in diverse industrial environments.
Complies with international standards including IEC 60947, UL, CSA, UKCA, and VDE.
Includes integrated phase failure sensitivity for enhanced motor protection.

Product Description

Schneider Electric LR2K0307 TeSyS LR Thermal Overload Relay is a precision device engineered for motor overload protection in industrial and automation systems. Featuring an adjustable current range from 1.2 to 1.8 amperes and a power rating of 100 Watts, it ensures effective thermal protection for motors within corresponding load ratings.

The relay offers a 1 NO (normally open) and 1 NC (normally closed) contact configuration, ideal for integration with various contactors. Its compact dimensions of 45mm width, 65mm depth, and 116mm length facilitate mounting on standard DIN rails, optimizing panel space.

The device supports screw clamp terminals suitable for both solid and flexible cables, enhancing installation versatility. It operates reliably within a temperature range from -20°C to +55°C, making it suitable for a wide range of industrial environments.

Both automatic and manual reset modes allow tailored operational control according to application needs. Enhanced safety is provided by integrated phase failure sensitivity and a yellow trip indicator clearly showing relay status when tripped.

This relay complies with global certifications including IEC 60947, UL, CSA, UKCA, and VDE ensuring robust quality and safety standards for electrical and automation applications. This relay protects motors against overload by detecting overcurrent conditions.

Adjustable current range enables precise protection matching motor specifications. Compact size saves panel space and simplifies installation. Quality construction ensures durability in demanding industrial settings. Reset options improve operational convenience and safety.

Compliant with multiple international standards for reliability. Suitable for use with contactors and various industrial electrical controls. Handles control voltages up to 690 V DC and contact voltage up to 690 V AC. Integrated trip indicator improves maintenance response times.

Ideal for industrial automation, electrical control panels, manufacturing plants, and HVAC systems, this Thermal Overload Relay delivers dependable motor protection ensuring operational continuity and safety. Explore more Schneider Electric products and relays in the EnvMart catalog for your electrical and automation needs.
