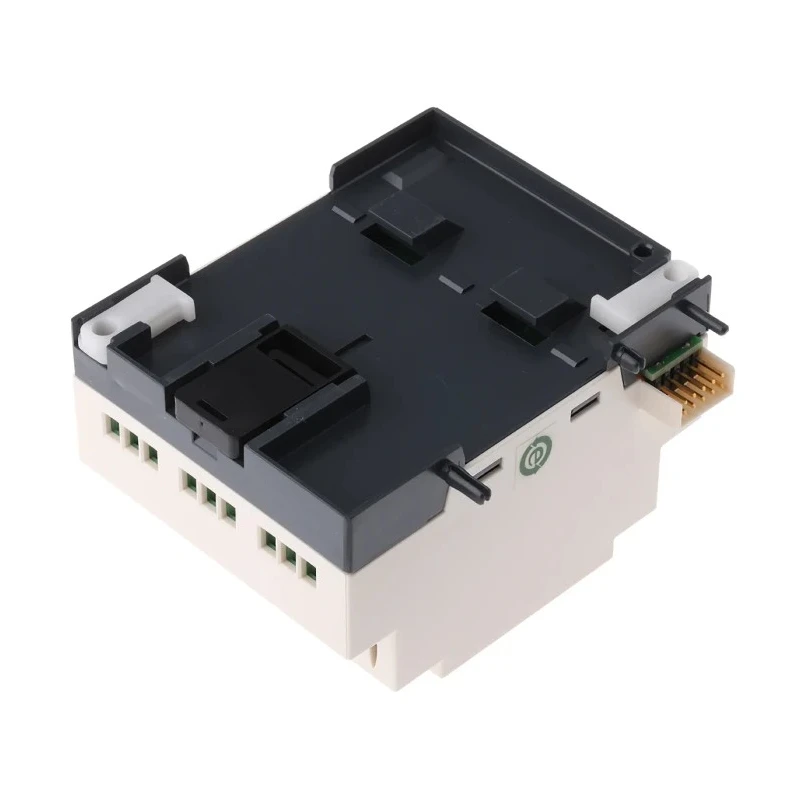

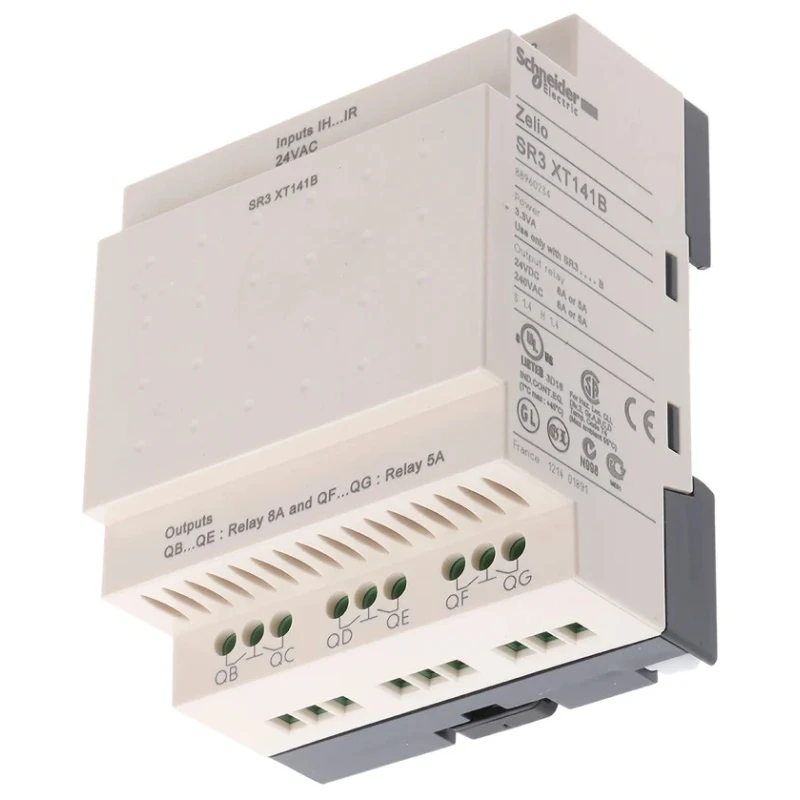

Schneider Electric Zelio Logic I/O Module 8-Input, Discrete Input, 6 Outputs Relay Output 24V AC SR3XT141B
Specifications
| Country of Origin | India |
|---|---|
| Display | 8 Inputs (No display |
| Brand | Schneider Electric |
| Length | 110mm |
| Model | SR3XT141B |
| Depth | 59.5mm |
| Width | 72mm |
| Mount Type | DIN Rail |
| Number of inputs | 8 |
| Output type | Relay |
| Series | Zelio Logic |
| Input Type | Discrete |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -20°C |
| Interfaces | language (LADDER): 12 pre-programmed functions |
| Number of outputs | 6 |
| Supply Voltage | 24V ac |
| Standards/Approvals | GOST, CSA, C-Tick, GL, UL |
| Programming Language Used | FBD, Ladder Diagram |
| contact language (LADDER) | 12 pre-programmed functions |
Key Features
- Equipped with 8 discrete inputs suitable for various sensor types.
- Includes 6 relay outputs to control external devices.
- Operates at 24V AC supply voltage for standard automation systems.
- Compact design with DIN rail mounting for efficient installation.
- Supports programming languages including Function Block Diagram and Ladder Diagram.
- Built-in battery backup with 10-year real-time clock at 25°C.
- Operating temperature range from -20°C to 40°C for versatile environments.
- Conforms to multiple standards and approvals including GOST, CSA, C-Tick, GL, and UL.
Product Description
Schneider Electric SR3XT141B Zelio Logic I/O Module is an advanced control module featuring 8 discrete inputs and 6 outputs with relay type to efficiently manage automation tasks. Designed for seamless integration into industrial control systems, it operates on a 24V AC supply and mounts easily on DIN rails for space-saving installations.
This module incorporates a real-time clock with a 10-year battery backup at 25°C, ensuring reliable timing functions and data retention. It supports intuitive programming using Function Block Diagram and Ladder Diagram languages, enabling flexible control logic design.
Its robust design allows operation in temperatures ranging from -20°C to 40°C, and it complies with international standards such as GOST, CSA, C-Tick, GL, and UL, guaranteeing quality and safety for industrial applications.
The compact dimensions of 110 mm length, 72 mm width, and 59.5 mm depth reduce panel space requirements, making it a cost-effective solution for replacing cable logic or specific card-based systems.
Typical applications include control systems for smaller machinery, lighting management, heating, and air conditioning controls. The module’s relay outputs facilitate direct control of external equipment, enhancing system versatility.
Equipped with 8 discrete inputs for versatile signal compatibility. Six relay outputs provide robust control outputs. Low power consumption with 24V AC supply voltage. DIN rail mounting ensures easy and secure installation.
Real-time clock with 10-year backup for reliable autonomous operation. Compatible with Zelio Soft 2 programming for user-friendly configuration. Wide operating temperature range to suit diverse environments. Certified to comply with multiple international safety standards.
Compact size minimizes control panel space requirements. Explore the full range of Schneider Electric products and Zelio Logic Modules on EnvMart for industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The I/O module operates at a supply voltage of 24V AC.
It features 8 discrete inputs suitable for various sensor types.
This model includes 6 relay outputs to control external devices.
The operating temperature range is from -20°C to 40°C.
It supports programming in Function Block Diagram (FBD) and Ladder Diagram.
The dimensions are 110 mm in length, 72 mm in width, and 59.5 mm in depth.
It is designed for DIN rail mounting, allowing for efficient installation.
It conforms to multiple standards including GOST, CSA, C-Tick, GL, and UL.
Yes, it has a built-in real-time clock with a 10-year battery backup at 25°C.
Typical applications include control systems for smaller machinery, lighting management, and HVAC controls.
The model uses discrete inputs for signal compatibility.
The weight is not specified in the provided information.
