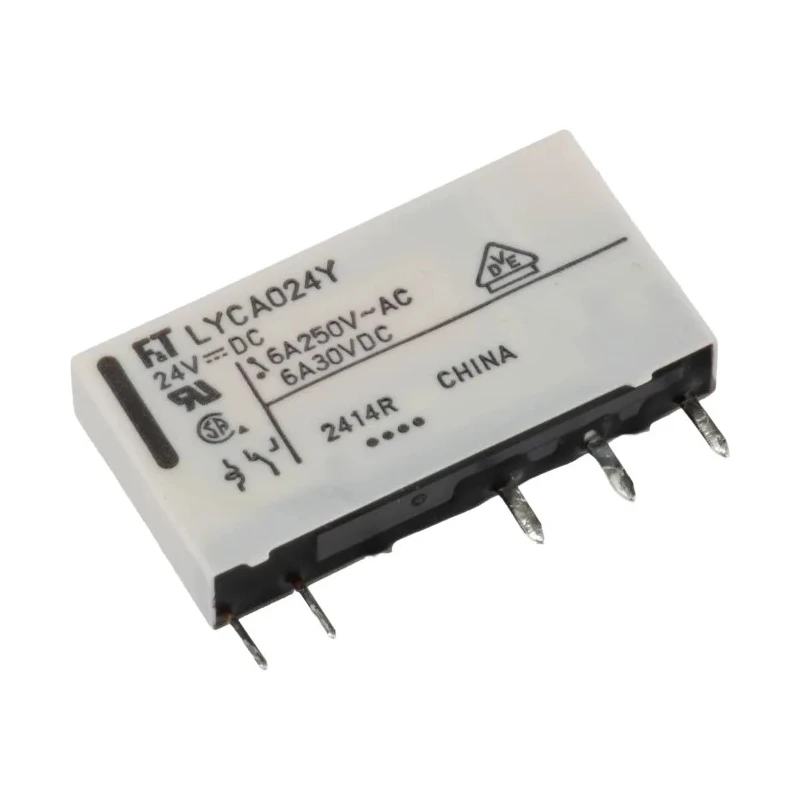

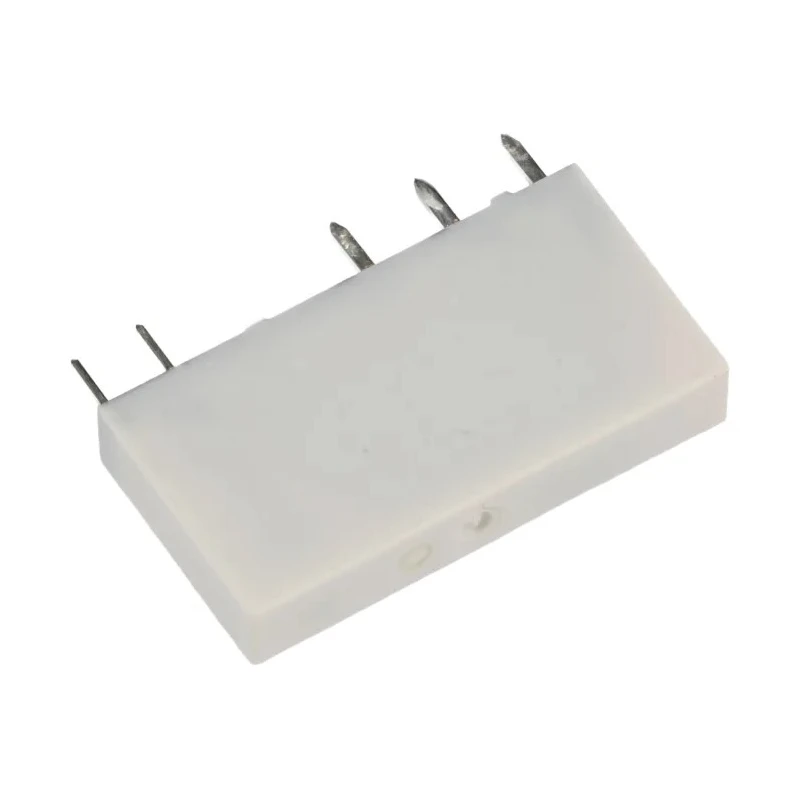

Fujitsu PCB Power Relay, 24V dc Coil Voltage, 6A Switching Current, SPDT Contact Configuration FTR-LYCA024Y
Specifications
| Country of Origin | China |
|---|---|
| Brand | Fujitsu |
| Height | 15mm |
| Length | 28mm |
| Model | FTR-LYCA024Y |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | FTR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, VDE, UL |
| Coil Resistance | 3.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 170mW |
| Switching Power | 144W |
| Finder PCB Relay, 24V dc Coil, 6A Switching Current, SPDTBrand | Finder |
Key Features
- Compact design with a slim profile of 5 mm width for high-density PCB mounting.
- Silver alloy contacts ensure reliable conductivity and durability.
- Operates efficiently with coil power consumption of 170 mW.
- Wide operating temperature range from -40°C to 85°C suitable for various industrial environments.
- Switching capability of up to 6 A at 250 V ac and 144 W switching power for versatile applications.
- Features a coil resistance of 3.4 kΩ ensuring stable operation.
- Contact resistance is low at 100 mΩ to minimize power loss.
- Meets industry standards with CSA, VDE, and UL approvals for safety and compliance.
Product Description
Fujitsu FTR-LYCA024Y is a high-quality PCB Power Relay engineered with a 24V dc coil voltage and a maximum switching current of 6A. It features a Single Pole Double Throw (SPDT) contact configuration, making it versatile for switching and control circuits on printed circuit boards.
The relay’s slim profile of 5 mm width allows for high-density mounting on PCBs in electronic and electrical equipment. Its contacts are made from silver alloy, providing excellent conductivity and longevity.
This relay is designed to operate efficiently with a coil power of 170 mW and coil resistance of 3.4 kΩ. It supports switching power up to 144 W and switching AC voltage up to 250 V ac, suitable for various industrial, automation, and control system applications.
Operating temperature ranges from -40°C to 85°C, allowing reliable functionality in demanding environments. Contact resistance is maintained at a low 100 mΩ to ensure minimal energy loss during switching operations.
Compact design with a slim profile of 5 mm width for high-density PCB mounting. Silver alloy contacts ensure reliable conductivity and durability. Operates efficiently with coil power consumption of 170 mW. Wide operating temperature range from -40°C to 85°C suitable for various industrial environments.
Switching capability of up to 6 A at 250 V ac and 144 W switching power for versatile applications. Features a coil resistance of 3.4 kΩ ensuring stable operation. Contact resistance is low at 100 mΩ to minimize power loss.
Meets industry standards with CSA, VDE, and UL approvals for safety and compliance. Designed for PCB mounting with PCB pin terminal type for secure installation.
This relay is widely applicable in industrial automation, electrical control systems, manufacturing equipment, HVAC controls, and other commercial electronic systems requiring reliable switching performance.
Choose the Fujitsu FTR-LYCA024Y for dependable power relay performance coupled with compliance to international safety standards. Explore more Power Relay products and technical documents on EnvMart for your professional needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Fujitsu FTR-LYCA024Y operates with a coil voltage of 24V dc.
This relay has a maximum switching current of 6A.
It features a Single Pole Double Throw (SPDT) contact configuration.
The operating temperature range is from -40°C to 85°C.
The contact resistance is low at 100 mΩ, which helps minimize power loss.
The coil resistance is 3.4 kΩ, ensuring stable operation.
The dimensions of this model are 28mm in length, 5mm in width, and 15mm in height.
It supports a maximum switching power of 144W.
This relay meets CSA, VDE, and UL standards for safety and compliance.
It is designed for PCB mounting with PCB pin terminal type for secure installation.
The coil power consumption is 170 mW.
This model is applicable in industrial automation, electrical control systems, manufacturing equipment, and HVAC controls.
