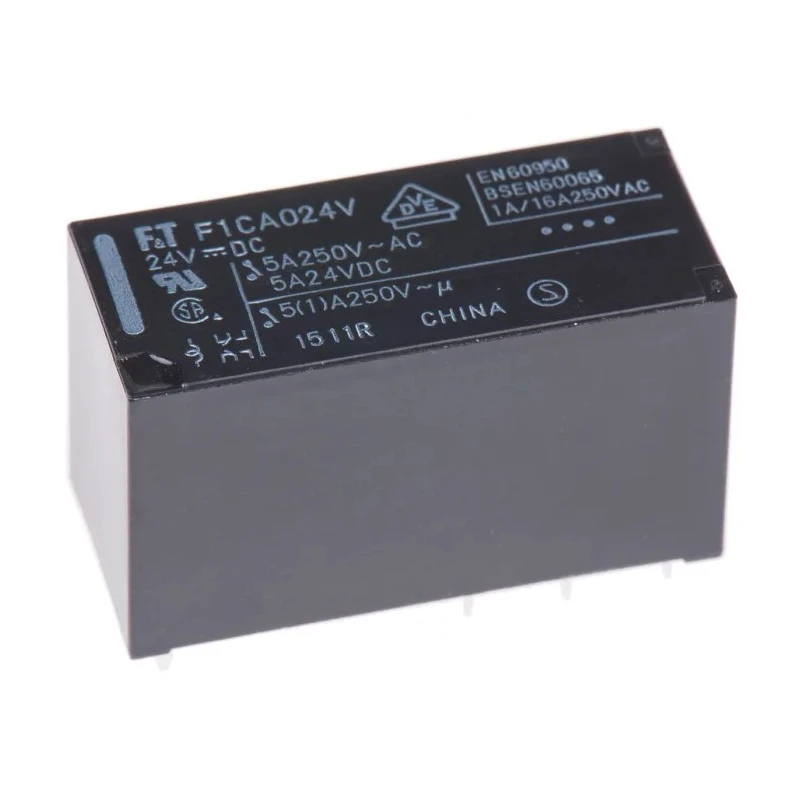

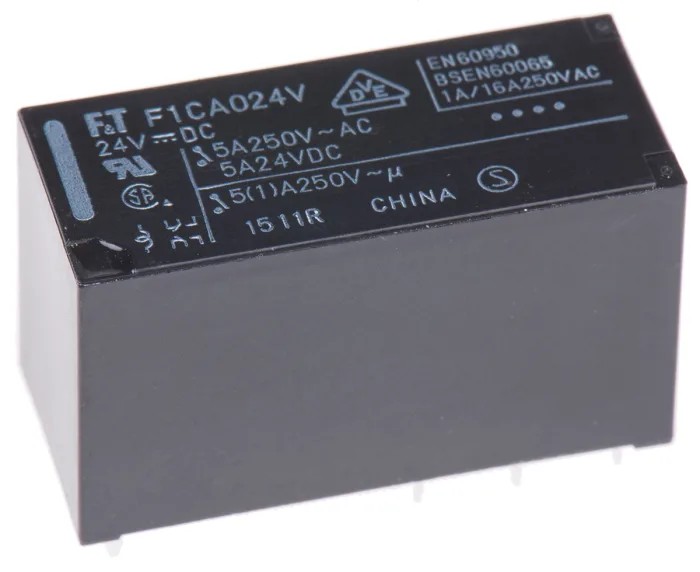

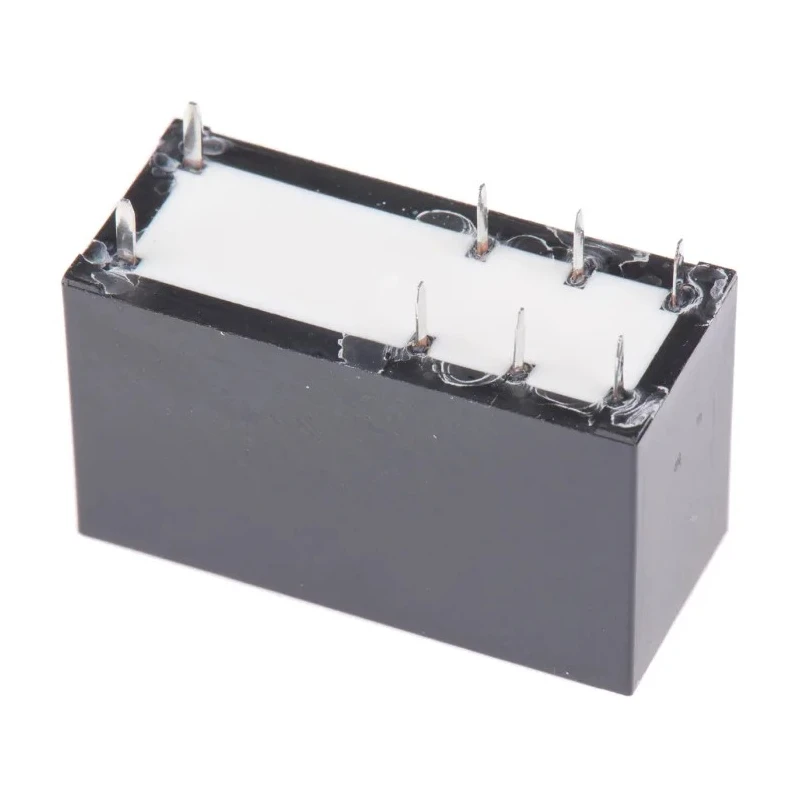

Fujitsu Low Profile PCB Power Relay DPDT 24V DC Coil 5A Switching Current FTR-F1CA024V

Fujitsu FTR-F1CA024V Low Profile PCB Power Relay features a 24V DC coil and a maximum switching current of 5A, designed to provide efficient and reliable switching in electronic control circuits and automation systems.

This relay utilizes a DPDT contact configuration with gold plated silver tin oxide contacts, which reduce contact resistance to 100mΩ, ensuring high conductivity and longevity. Coil resistance of 1.1kΩ and coil power rating of 530mW enable efficient coil operation with minimal energy consumption.

Its compact size (29mm length, 12.8mm width, and 16.5mm height) makes it ideal for PCB mounting in space-constrained electronic assemblies. The relay supports switching voltages up to 300V AC or DC and power ratings up to 120W.

Designed to operate effectively within a wide temperature range from -40°C to 75°C, it meets critical standards including CSA, UL, and VDE certifications, ensuring safe and reliable performance in industrial, laboratory, HVAC, manufacturing, and commercial automation applications.

This relay features a DPDT (Double Pole Double Throw) contact configuration. It operates with a coil voltage of 24V DC and has a coil resistance of 1.1kΩ. The relay supports a switching current up to 5A and switching power of 120W.

Gold plated silver tin oxide contacts ensure low contact resistance of 100mΩ for enhanced conductivity. Compact dimensions with a length of 29mm, width of 12.8mm, and height of 16.5mm suit PCB mounting. Operating temperature ranges from -40°C to +75°C, suitable for various industrial environments.

Coil power consumption is low at 530mW, helping reduce energy usage. Complies with CSA, UL, and VDE safety and quality standards. Suitable for electronics, automation systems, signal conditioning, and power relay applications.

This Fujitsu power relay is ideal for use in printed circuit board assemblies where reliable switching of electrical loads is required. It supports applications such as industrial control, home automation, signal conditioning circuits, and other electronic and electrical devices requiring high-quality power relays.
