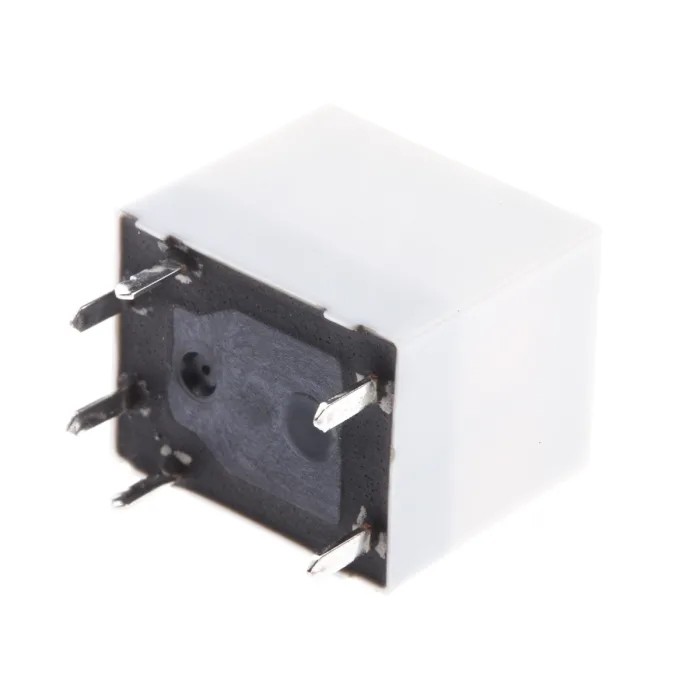

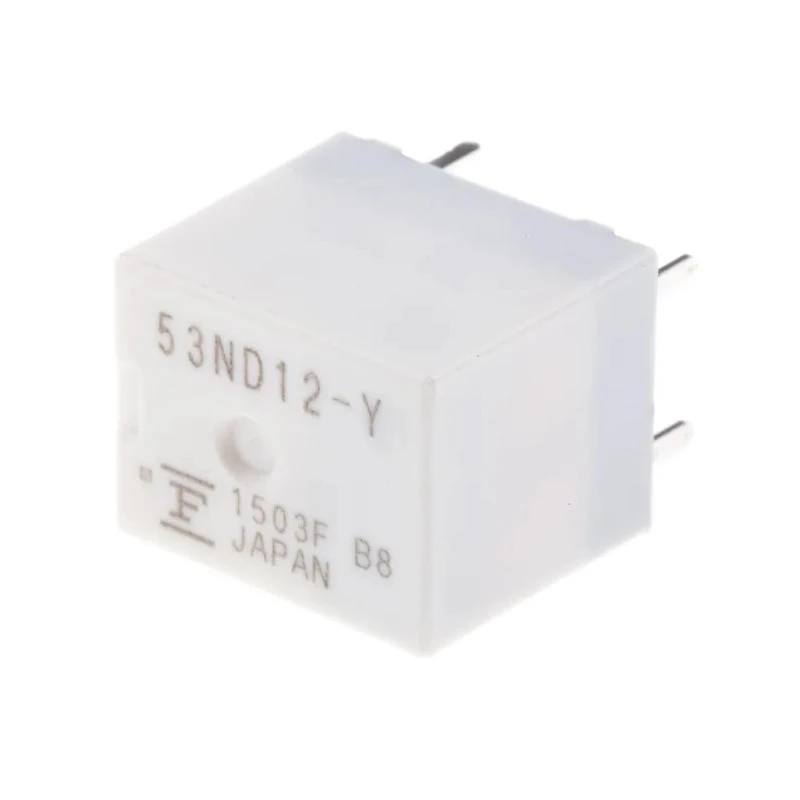

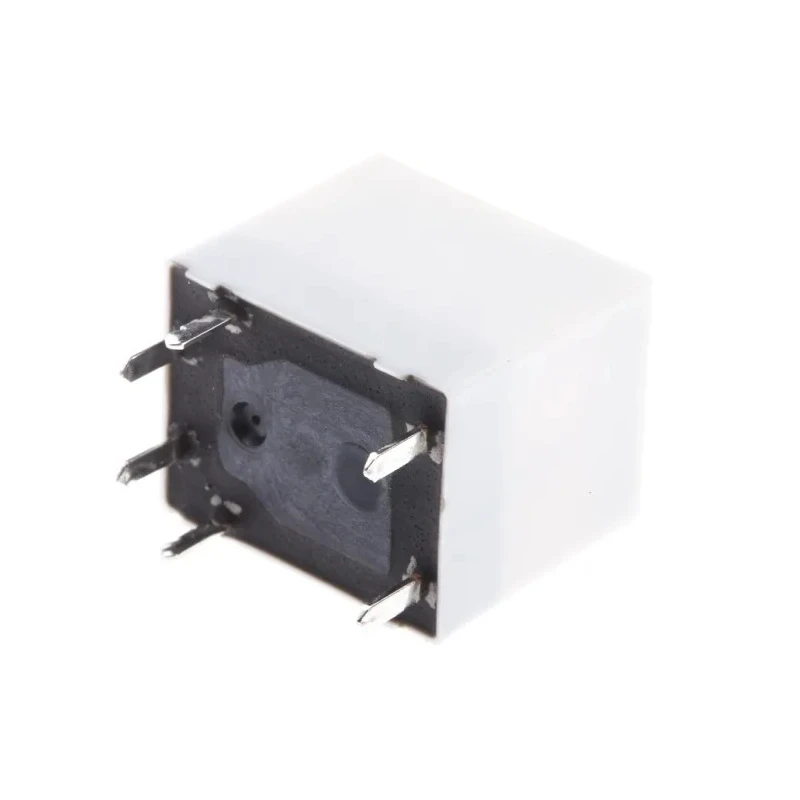

Fujitsu PCB Automotive Relay 12V Coil Voltage 600mW Power 30A Switching Current SPST FBR53ND12-Y
Specifications
| Country of Origin | India |
|---|---|
| Brand | Fujitsu |
| Height | 13.7mm |
| Length | 15.5mm |
| Model | FBR53ND12-Y |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | FBR53 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Coil Resistance | 240Ω |
| Coil Power | 600mW |
Key Features
- The relay has a coil resistance of 240Ω ensuring stable performance.
- It is designed for PCB mounting with PCB terminal type and mount type.
- Operational temperature ranges from -40°C minimum to 85°C maximum, suitable for automotive environments.
- Compact dimensions of 15.5 mm length and 13.7 mm height enable easy integration in PCB assemblies.
- Contact material is silver alloy, offering durability and reliable electrical contact.
- Electrical life expectancy is minimum 100,000 operations, ensuring long service life.
- Contact rating is 25 A at 14 V DC resistive load, suitable for automotive power applications.
- FBR53 series designed specifically for automotive power relay applications.
Product Description
Fujitsu FBR53ND12-Y PCB Automotive Relay offers reliable switching performance with a 12V coil voltage and a coil power of 600mW. The SPST contact configuration enables single-pole, single-throw switching suitable for automotive electrical systems. Its compact size with a length of 15.5 mm and height of 13.7 mm allows convenient mounting on PCBs.
The relay operates effectively in harsh automotive environments, supporting a temperature range from -40°C to 85°C. The silver alloy contact material ensures excellent conductivity and durability, while the relay's electrical life of a minimum of 100,000 operations supports long-term use.
This relay from the Fujitsu FBR53 series is designed for automotive power relay applications with a contact rating of 25 A @ 14 V DC resistive load and a switching current capacity of 30 A. It uses PCB terminals and PCB mount type for stable installation on automotive PCBs, making it suitable for various automotive control and power management uses.
Its coil resistance of 240Ω optimizes power consumption and switching efficiency. This automotive relay can be applied in automotive lighting, power window control, starter motor circuits, and other vehicle electrical systems requiring high current switching capability and reliable operation.
The relay features a coil resistance of 240Ω for efficient coil current control. The PCB mounting and terminal type design facilitate secure and efficient PCB integration. It withstands temperature variations from -40°C to 85°C for automotive environments.
Silver alloy contacts provide reliable conductivity and long-lasting operation. The rated contact current of 30 A and resistive contact rating of 25 A at 14 V DC suit automotive power switching needs. Electrical life exceeds 100,000 operations ensuring durable performance.
Compact dimensions enable easy inclusion into automotive electronic assemblies.
This Fujitsu automotive relay is optimal for automotive, industrial control, and electrical switching applications requiring durable, high-current PCB relays. It integrates seamlessly into PCB layouts for automotive systems.
Explore the Environmental Mart catalog for a broad range of Fujitsu Automotive Relays and specialized electrical components for industry-grade use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FBR53ND12-Y relay operates with a coil voltage of 12V.
This automotive relay has a maximum switching current capacity of 30 A.
The relay features a single-pole, single-throw (SPST) contact configuration.
The operational temperature range for the FBR53ND12-Y relay is from -40°C to 85°C.
The coil resistance of this relay is 240Ω.
The contact material of this relay is silver alloy, providing reliable electrical contact.
This relay has a height of 13.7 mm and a length of 15.5 mm.
The relay has an electrical life expectancy of a minimum of 100,000 operations.
The relay is designed for PCB mounting with PCB terminal type.
This relay is suitable for automotive applications such as lighting, power window control, and starter motor circuits.
The coil power of this relay is 600mW.
The FBR53ND12-Y relay belongs to the FBR53 series, which is designed specifically for automotive power relay applications.
