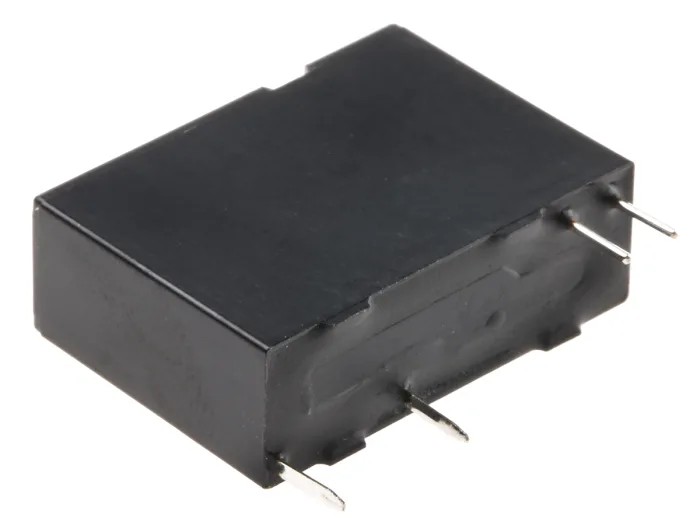

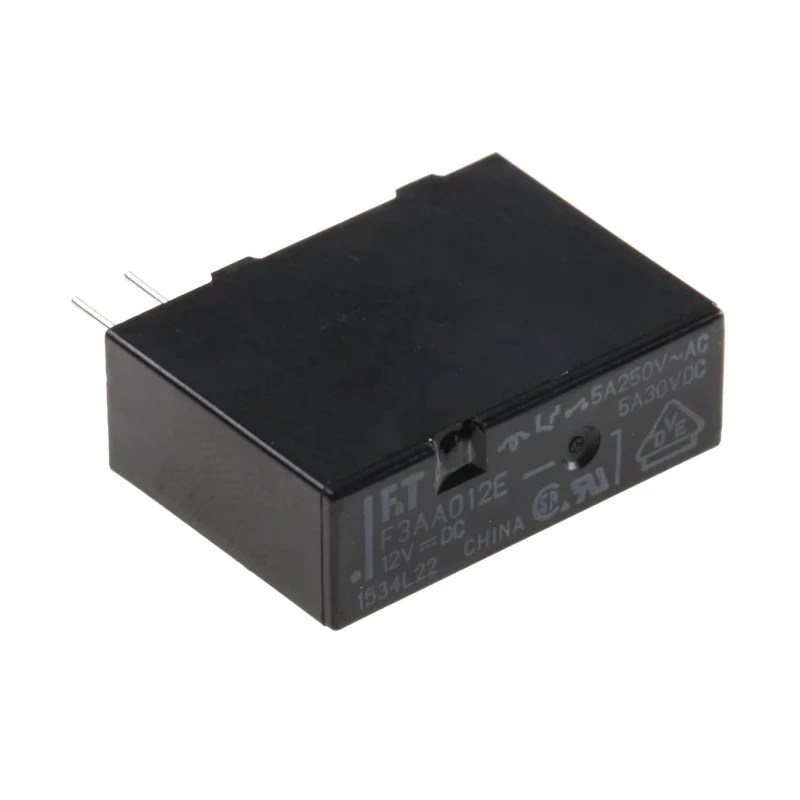

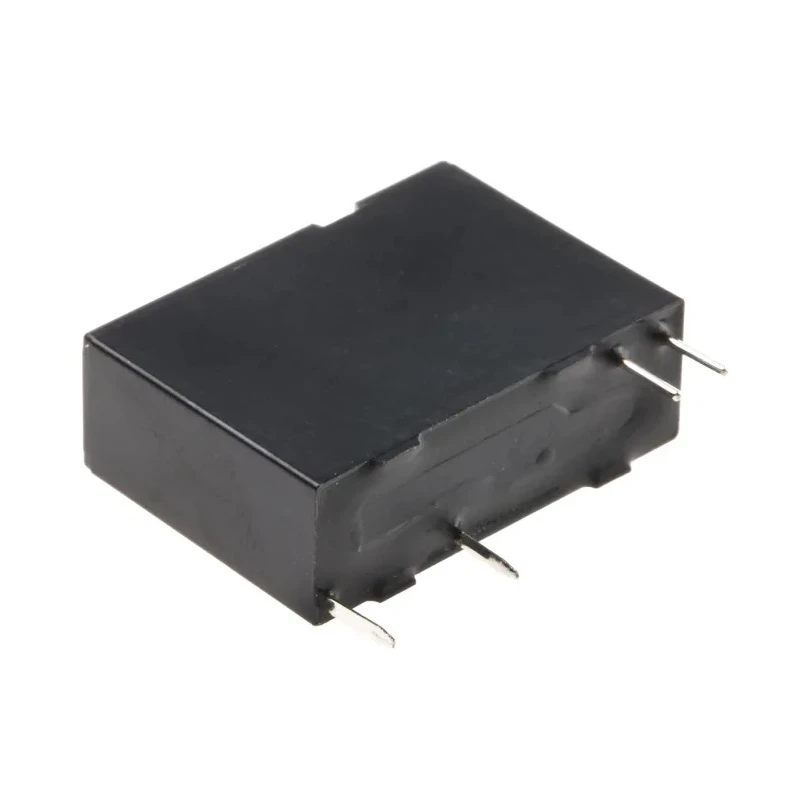

Fujitsu 12V DC Coil PCB Power Relay, 5A Switching Current, SPST Contact, Non-latching, Silver Alloy Contacts FTR-F3AA012E-HA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Fujitsu |
| Height | 15mm |
| Length | 20.3mm |
| Model | FTR-F3AA012E-HA |
| Width | 7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | FTR |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, UL, VDE |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 200mW |
| Switching Power | 150W |
Key Features
- Designed with SPST contact configuration and a non-latching mechanism.
- Uses silver alloy for contact material ensuring good conductivity and durability.
- Compact dimensions with 20.3mm length, 7mm width, and 15mm height for PCB mounting.
- Coil power is low at 200mW with coil resistance of 720Ω for energy efficiency.
- Suitable operating temperature ranges from -40°C to 70°C for varied environments.
- High isolation of 10kV between coil and contacts supports safety in industrial applications.
- Switching capabilities include 150W power, 30V DC, and 277V AC voltages.
- Certified by CSA, UL, and VDE ensuring quality compliance.
Product Description
Fujitsu FTR-F3AA012E-HA PCB Power Relay is a reliable SPST non-latching relay featuring a 12V DC coil voltage and a maximum switching current of 5A. Designed for efficient and high-density PCB mounting, it has a compact size measuring 20.3mm in length, 7mm in width, and 15mm in height. The relay utilizes silver alloy contacts with a low contact resistance of 100mΩ ensuring robust electrical performance.
The coil consumes just 200mW with a resistance of 720Ω, contributing to energy efficiency. It operates effectively across a temperature range of -40°C to 70°C, making it suitable for diverse industrial and automation environments. The relay offers high isolation voltage of 10kV between coil and contacts, together with a dielectric strength of 4kV, ensuring safe operation.
This device supports switching power of up to 150W with the capability to handle DC voltages up to 30V and AC voltages up to 277V. It is a cadmium-free, environmentally friendly product with PCB pin terminals for straightforward integration. The relay is certified by internationally recognized standards including CSA, UL, and VDE, confirming its reliability and safety for use in industrial, electrical automation, and control systems.
Designed with SPST contact configuration and a non-latching mechanism. Uses silver alloy for contact material ensuring good conductivity and durability. Compact dimensions with 20.3mm length, 7mm width, and 15mm height for PCB mounting.
Coil power is low at 200mW with coil resistance of 720Ω for energy efficiency. Suitable operating temperature ranges from -40°C to 70°C for varied environments. High isolation of 10kV between coil and contacts supports safety in industrial applications.
Switching capabilities include 150W power, 30V DC, and 277V AC voltages. Certified by CSA, UL, and VDE ensuring quality compliance.
This Fujitsu power relay is ideal for use in industrial automation, electrical control panels, HVAC controls, and machinery requiring reliable switching performance on PCBs. Its compact form, low coil power, and high isolation make it suitable for dense PCB applications requiring efficient power management and safety. Explore more products like this in the Power Relay category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 5A.
This model features an SPST (Single Pole Single Throw) contact configuration.
The required coil voltage for this power relay is 12V DC.
The relay has dimensions of 20.3mm in length, 7mm in width, and 15mm in height.
The coil power consumption is low at 200mW.
It operates effectively within a temperature range of -40°C to 70°C.
The contact material used in this relay is silver alloy, which ensures good conductivity.
The isolation voltage between the coil and contacts is 10kV, providing high safety standards.
This relay can switch DC voltages up to 30V and AC voltages up to 277V.
The relay is certified by CSA, UL, and VDE, ensuring compliance with quality standards.
The contact resistance of this relay is 100mΩ, ensuring robust electrical performance.
This model is designed for PCB mounting with PCB pin terminals for easy integration.
