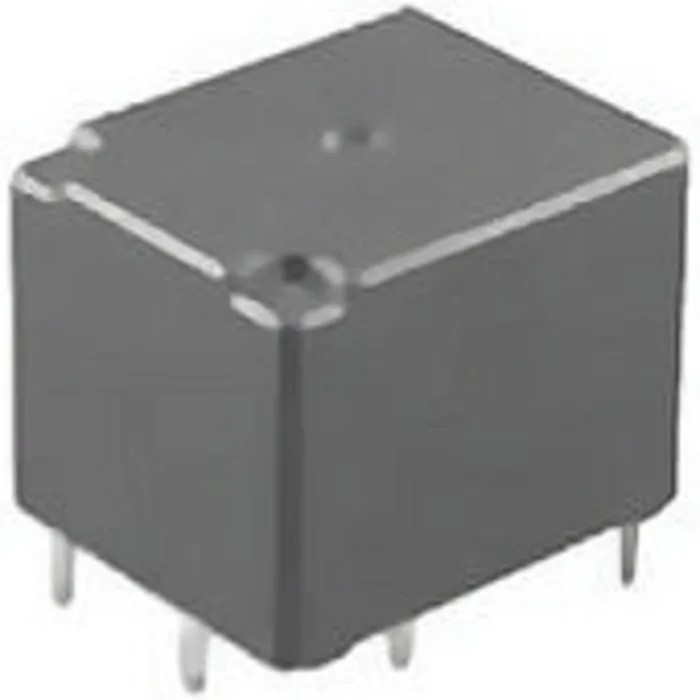

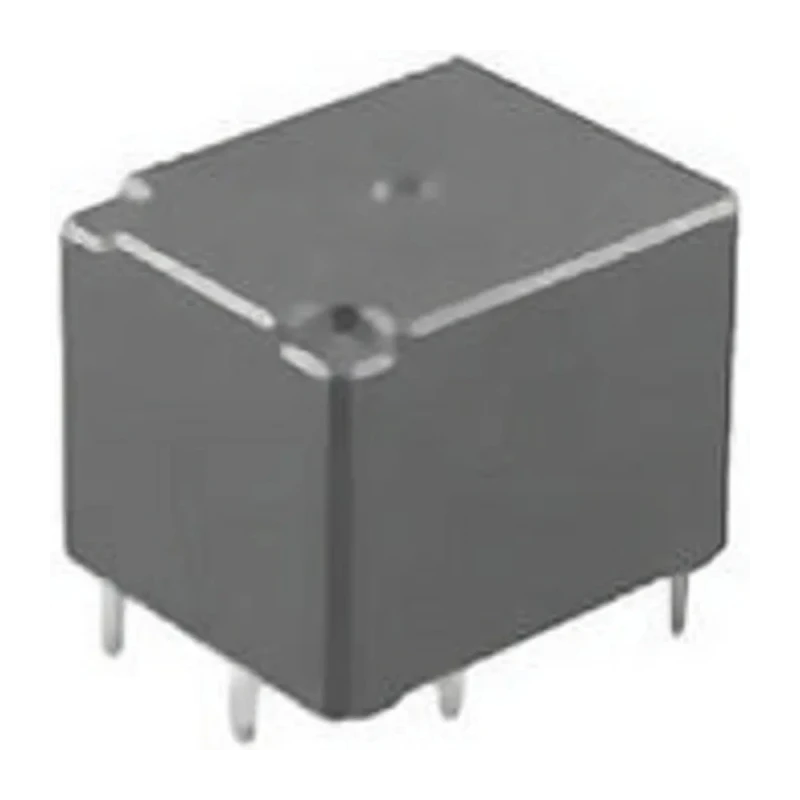

Panasonic PCB Automotive Relay 12V dc Coil Voltage 30A Switching Current DPDT ACTP212
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 13.5mm |
| Length | 17.4mm |
| Model | ACTP212 |
| Depth | 14mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ACTP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Number of Poles | 2 |
| Coil Resistance | 144Ω |
| Coil Power | 1W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- This relay has a coil power of 1W and coil resistance of 144 ohms.
- It has a double pole double throw (DPDT) contact configuration with two poles.
- The mounting type is PCB with through hole terminals.
- Operating temperature ranges from -40°C to 85°C.
- Compact dimensions measuring 17.4mm length, 13.5mm height, and 14mm depth.
- Silver alloy contact material provides reliable electrical performance.
- Isolation between coil and contact is rated at 500Vrms.
- Designed for silent operation and sealed construction for durability.
Product Description
Panasonic ACTP212 PCB Automotive Relay is a compact, reliable component designed for automotive electrical systems, operating at a coil voltage of 12V DC with a coil power consumption of 1 watt. This relay offers a switching current of 30A and a DPDT (double pole double throw) contact configuration, making it suitable for complex switching applications in vehicles.
The relay features a coil resistance of 144 ohms and is designed for PCB mounting with through hole terminals, facilitating easy integration into control boards. It operates efficiently within a temperature range of -40°C to 85°C, ensuring durability under various environmental conditions.
The device measures 17.4 mm in length, 13.5 mm in height, and 14 mm in depth, with contacts made from silver alloy to deliver consistent electrical performance. The isolation voltage between the coil and contacts is rated at 500 Vrms, providing high electrical isolation for safety and reliability.
Constructed with a sealed housing, Panasonic's ACTP212 relay operates silently, reducing electrical noise and mechanical wear. Its compact design is optimized for automotive use cases including power windows, powered seats, auto door locks, slide door closers, and power sunroofs, where reliable switching is critical.
This relay belongs to Panasonic's ACTP series, known for quality and durability in automotive relay applications. Its robust construction and compliance with automotive standards make it ideal for use in demanding vehicle environments.
This relay has a coil power of 1W and coil resistance of 144 ohms. It has a double pole double throw (DPDT) contact configuration with two poles. The mounting type is PCB with through hole terminals. Operating temperature ranges from -40°C to 85°C.
Compact dimensions measuring 17.4mm length, 13.5mm height, and 14mm depth. Silver alloy contact material provides reliable electrical performance. Isolation between coil and contact is rated at 500Vrms. Designed for silent operation and sealed construction for durability.
Typical usage includes power windows, powered seats, auto door locks, slide door closers, and power sunroofs. Explore more Automotive Relays and related components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Panasonic ACTP212 relay operates at a coil voltage of 12V DC.
This relay supports a maximum switching current of 30A.
It features a double pole double throw (DPDT) contact configuration.
The relay measures 17.4mm in length, 13.5mm in height, and 14mm in depth.
The operating temperature range for the relay is from -40°C to 85°C.
The coil resistance of this relay is 144 ohms.
It is designed for PCB mounting with through hole terminals.
The contacts are made from silver alloy, providing reliable electrical performance.
The isolation between the coil and contact is rated at 500Vrms.
It is suitable for applications such as power windows, powered seats, auto door locks, slide door closers, and power sunroofs.
The relay is manufactured in Japan.
The coil power consumption is 1 watt.
