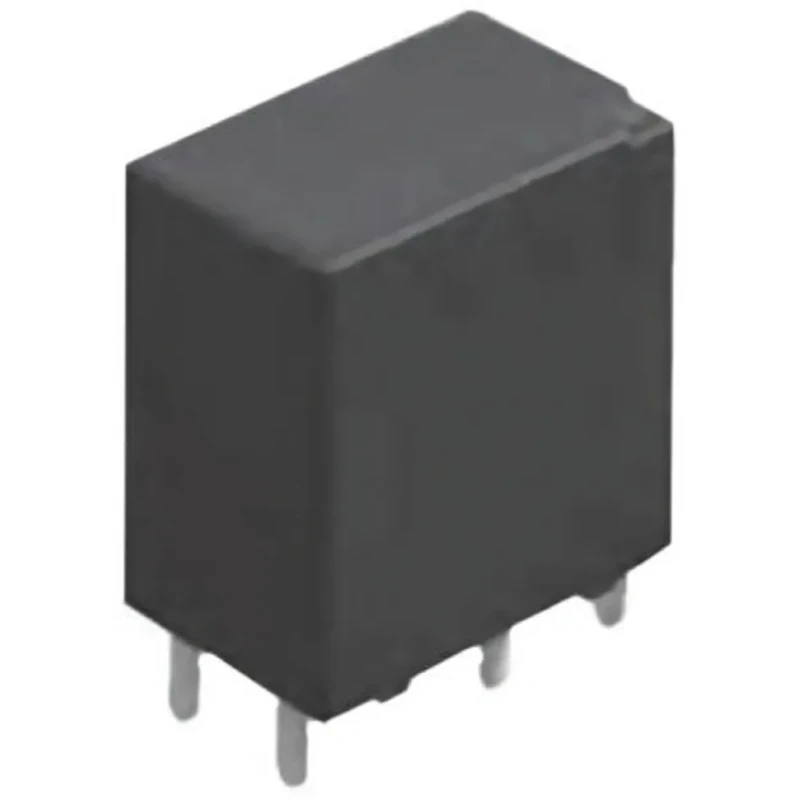

Panasonic PCB Automotive Relay, 12V DC Coil Voltage, 30A Switching Current, SPST ACNH3212
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 18.3mm |
| Length | 17mm |
| Model | ACNH3212 |
| Depth | 10.6mm |
| Mount Type | PCB |
| Contact Material | Silver |
| Series | ACNH |
| Maximum Operating Temperature | 110°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Number of Poles | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-4813Brand: PanasonicManufacturers Part No.: ACNH3212Distrelec Article No.: 30121724 |
| Coil Resistance | 320Ω |
| Coil Power | 450mW |
| Isolation Coil To Contact | 500V |
Key Features
- Compact PCB mount design saves space on circuit boards.
- Suitable for head lamps, fog lamps, fan motors, defoggers, and seat heaters.
- Sealed construction ensures durability in automotive environments.
- Nominal switching capacity of 30A at 14V DC resistive load.
- Continuous current rating of 20A at 14V DC.
- Utilizes silver contact material for reliable conductivity.
- Operates efficiently with nominal coil power of 450mW and coil resistance of 320Ω.
- Wide operating temperature range from -40°C to 110°C.
Product Description
Panasonic ACNH3212 PCB Automotive Relay features a 12V DC coil voltage and a 30A nominal switching current, designed specifically for automotive electrical systems. This relay is a high load, compact PCB mount solution, ideal for replacing micro ISO terminal relays, providing efficient space utilization on circuit boards.
The relay is perfectly suited for various automotive applications including head lamps, fog lamps, fan motors, defoggers, and seat heaters. Its sealed construction enhances reliability under harsh environmental conditions often encountered in automotive settings.
Featuring a nominal switching capacity of 30A at 14V DC for resistive loads and continuous current capacity of 20A, the ACNH3212 provides robust performance. The relay coil consumes a nominal operating power of 450mW with a coil resistance of 320Ω, ensuring efficient operation while maintaining low energy consumption.
Constructed with high-quality silver contact material, the contact configuration is Single Pole Single Throw (SPST), providing dependable switching performance. The relay supports PCB terminal mount type for secure and straightforward installation on printed circuit boards.
It operates reliably in a wide temperature range from -40°C to 110°C, offering versatility across various automotive climate conditions. The isolation voltage between coil and contact is rated at 500V, ensuring electrical safety and preventing interference.
Compact PCB mount design saves space on circuit boards. Suitable for head lamps, fog lamps, fan motors, defoggers, and seat heaters. Sealed construction ensures durability in automotive environments. Nominal switching capacity of 30A at 14V DC resistive load.
Continuous current rating of 20A at 14V DC. Utilizes silver contact material for reliable conductivity. Operates efficiently with nominal coil power of 450mW and coil resistance of 320Ω. Wide operating temperature range from -40°C to 110°C.
PCB terminal type for easy mounting and connection. Isolation voltage of 500V between coil and contact.
This Panasonic automotive relay provides a reliable and durable switching solution engineered for automotive electrical systems. It is ideal for industries involving automotive manufacturing, repair, and aftermarket upgrades.
Explore our extensive selection of Automotive Relays and related products to find the best solutions for your automotive and industrial electrical needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a nominal switching capacity of 30A at 14V DC for resistive loads.
This relay requires a 12V DC coil voltage to operate.
The continuous current rating is 20A at 14V DC.
It features a Single Pole Single Throw (SPST) contact configuration.
The coil resistance is 320Ω.
It operates reliably within a temperature range from -40°C to 110°C.
The contacts are made from silver, ensuring reliable conductivity.
This model is designed for PCB terminal mounting, allowing for secure installation on printed circuit boards.
The isolation voltage between the coil and contact is rated at 500V.
It is suitable for various automotive applications including head lamps, fog lamps, fan motors, defoggers, and seat heaters.
The nominal coil power is 450mW.
The relay has dimensions of 18.3mm in height, 17mm in length, and 10.6mm in depth.
