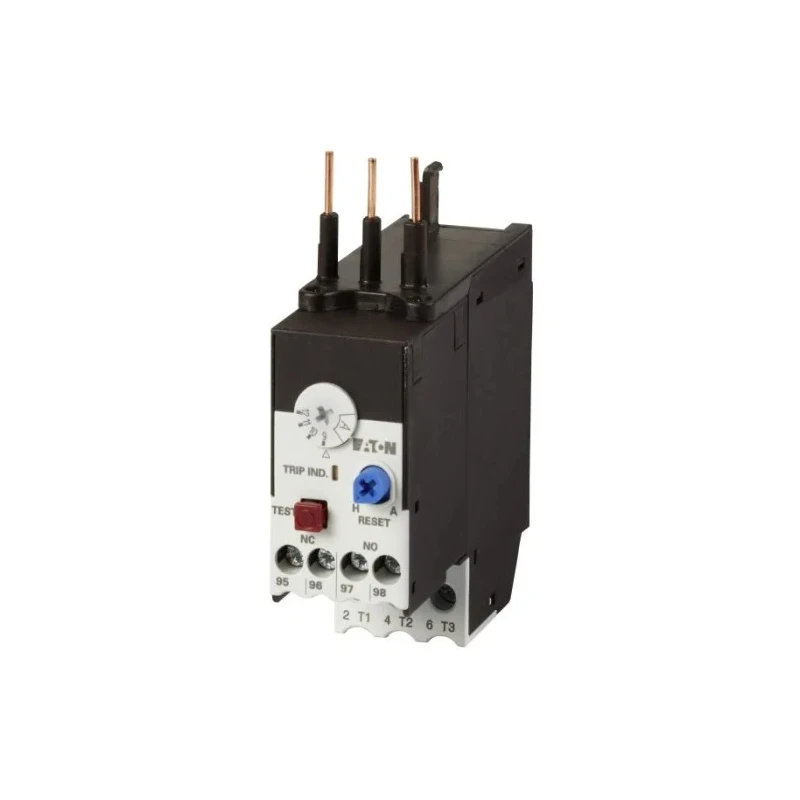

Eaton Overload Relay 1 NO/1 NC, Adjustable Current Range 1 to 1.6 A, 690V, ZBT12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Length | 38.1mm |
| Model | ZBT12 |
| IP Rating | IP20 |
| Width | 38.1mm |
| Mount Type | Direct |
| Series | ZBT12 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Supply Voltage | 690V ac |
| Standards/Approvals | GB14048, IEC/EN 60947, VDE 0660 Teil 102 |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 1, 1.6A |
| Number of Auxiliary Contacts | 1 |
| Control Voltage | 690V |
| Adjustable Current Range | 1 → 1.6 A |
Key Features
- Designed for direct mounting with screw terminals for secure connections.
- Equipped with test/off button and manual/auto reset pushbutton for reliable operation.
- Trip-free release mechanism ensures device trip safety.
- IP20 rating offers protection from fingers and objects greater than 12 millimeters.
- Operates in a temperature range from -25°C to 55°C.
- Complies with GB14048, IEC/EN 60947, and VDE 0660 Teil 102 standards for quality assurance.
- Suitable for industrial and automation control applications requiring thermal overload protection.
Product Description
The Eaton ZBT12 Overload Relay is a robust electrical safety component designed for use in industrial automation and control systems. It supports an adjustable current range from 1 to 1.6 A and operates at a supply and control voltage of 690V AC, providing reliable overload protection for motors and electrical circuits.
This relay is configured with 1 normally open (NO) and 1 normally closed (NC) contact, enabling precise control and signaling in electrical panels. The device features a test/off button, and a manual/auto reset pushbutton, facilitating easy testing and reset of the relay without the need to disassemble the circuit.
The trip-free release mechanism enhances operational safety by ensuring the relay trips promptly under overload conditions. With an IP20 rating, the unit is protected against finger contact and ingress of objects larger than 12 mm, suitable for installation in protected electrical enclosures.
Designed for direct mounting, it uses screw terminals for secure electrical connections. The relay supports a wide operating temperature range from -25°C to 55°C, making it suitable for varied industrial environments. Compliance with GB14048, IEC/EN 60947, and VDE 0660 Teil 102 standards assures adherence to international safety and quality requirements.
Designed for direct mounting with screw terminals for secure connections. Equipped with test/off button and manual/auto reset pushbutton for reliable operation. Trip-free release mechanism ensures device trip safety. IP20 rating offers protection from fingers and objects greater than 12 millimeters.
Operates in a temperature range from -25°C to 55°C. Complies with GB14048, IEC/EN 60947, and VDE 0660 Teil 102 standards for quality assurance. Suitable for industrial and automation control applications requiring thermal overload protection.
This Eaton overload relay is manufactured in China and is ideal for integration into industrial automation systems, electrical panels, and motor protection circuits. It ensures optimal safety and operational reliability, fitting standard protection and control setups.
Browse other Eaton electrical components and Overload Relays on EnvMart to complement your automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton ZBT12 Overload Relay has an adjustable current range from 1 to 1.6 A.
This model operates at a supply voltage of 690V AC.
The relay is configured with 1 normally open (NO) and 1 normally closed (NC) contact.
The Eaton ZBT12 has an IP20 rating, providing protection against finger contact and objects larger than 12 mm.
It operates within a temperature range of -25°C to 55°C.
This overload relay is designed for direct mounting and uses screw terminals for secure connections.
It complies with GB14048, IEC/EN 60947, and VDE 0660 Teil 102 standards.
It is equipped with a test/off button and a manual/auto reset pushbutton for convenient operation.
The dimensions of the relay are 38.1 mm in length and 38.1 mm in width.
This overload relay is suitable for industrial and automation control applications requiring thermal overload protection.
The relay contact current rating is between 1 and 1.6 A.
The Eaton ZBT12 is manufactured in China.
