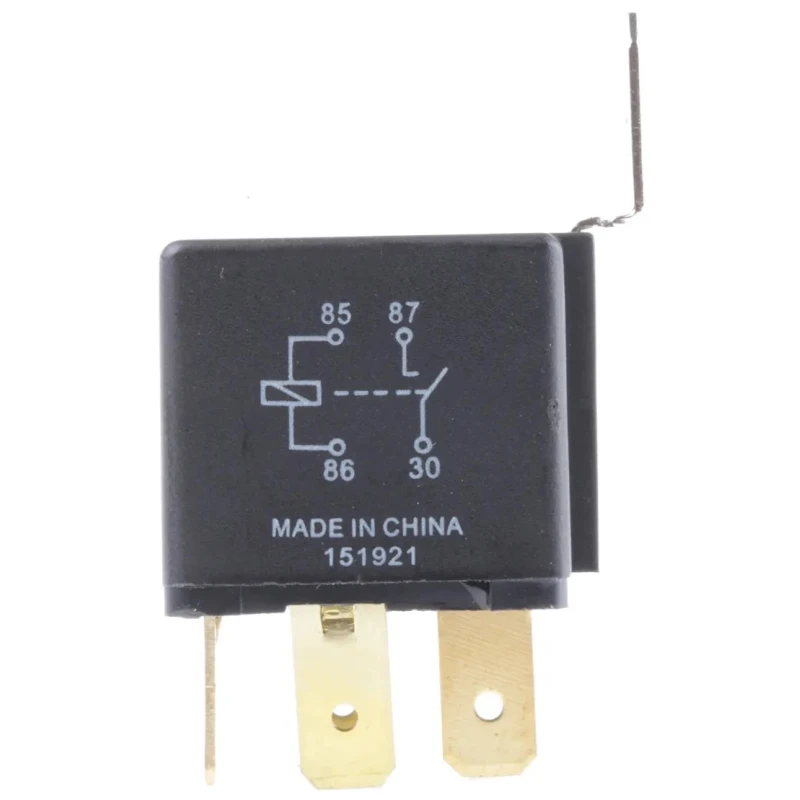

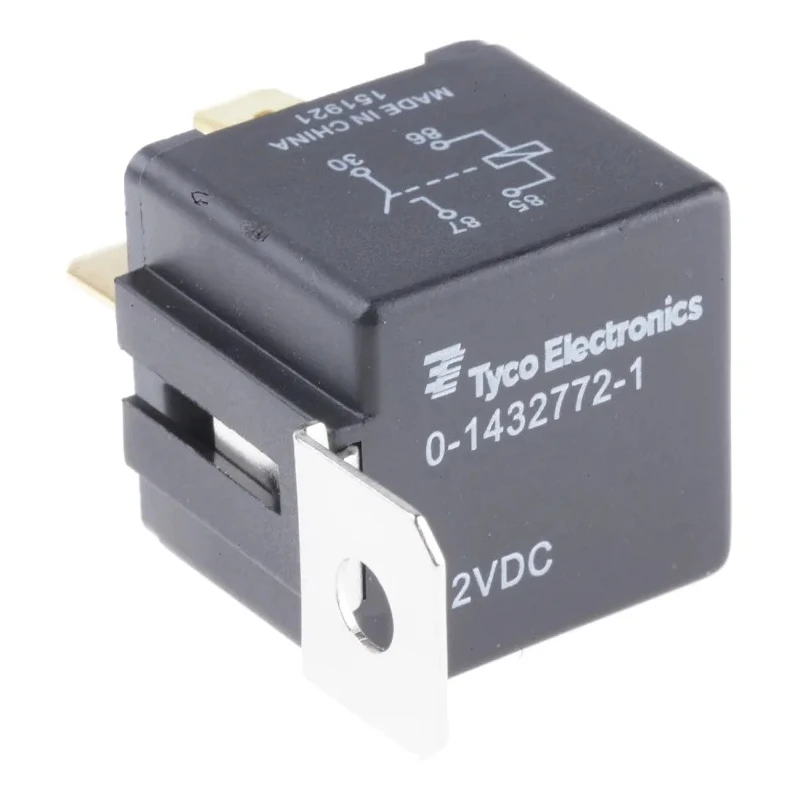

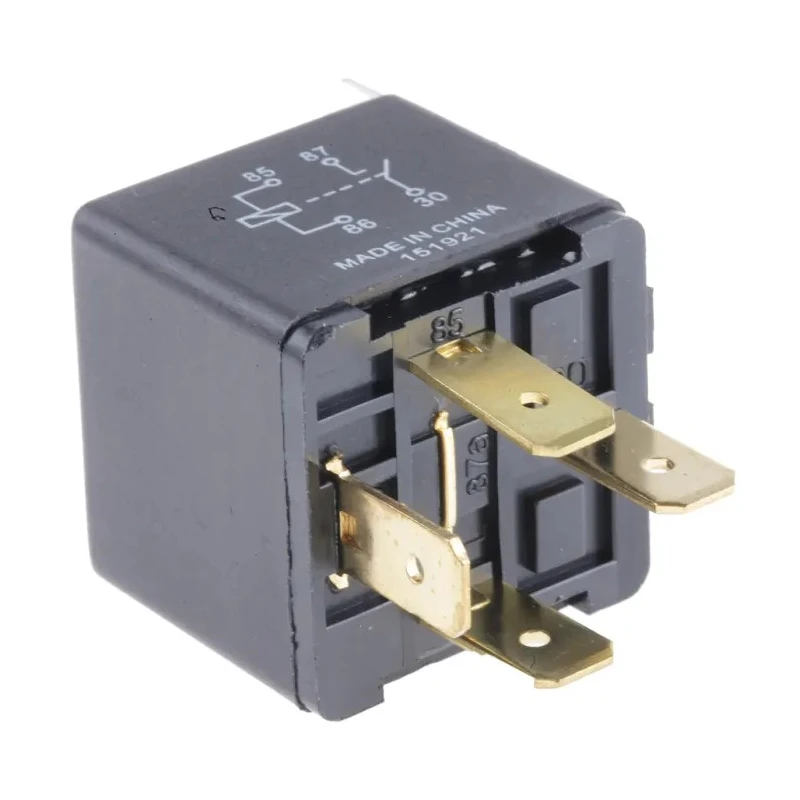

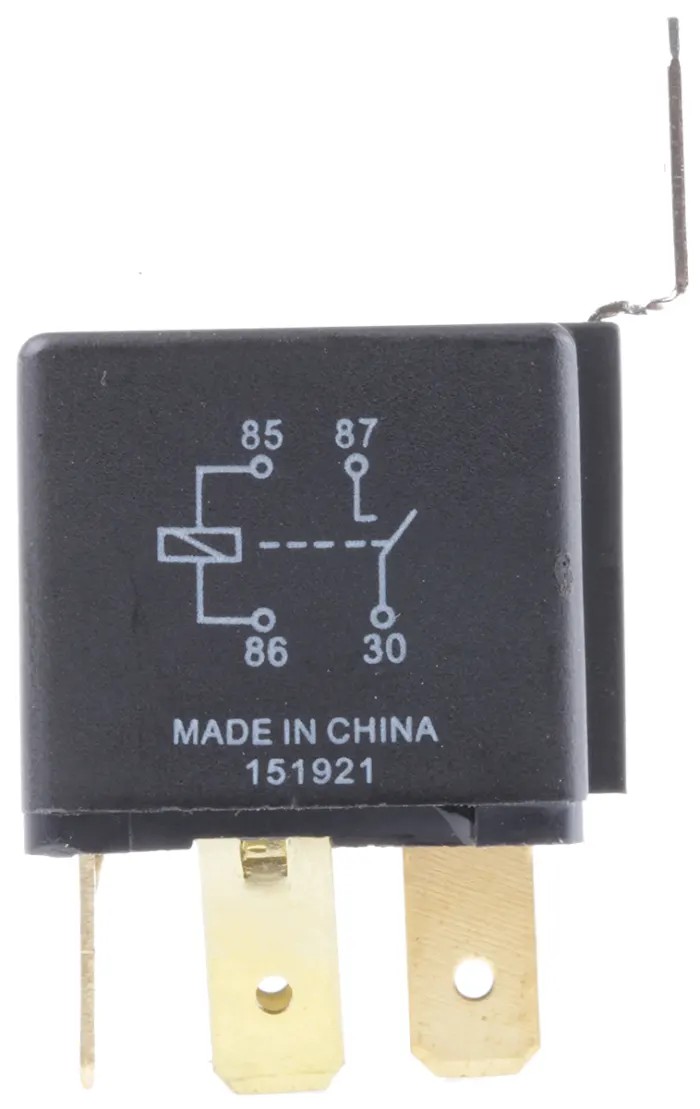

TE Connectivity Automotive Relay 12V Coil Voltage 30A Switching Current SPST 1432772-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 51.9mm |
| Length | 25.9mm |
| Depth | 26.5mm |
| Contact Material | Silver Tin Oxide |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 90Ω |
| Isolation Coil To Contact | 500Vrms |
Key Features
- This relay features a coil resistance of 90 ohms ensuring optimized coil performance.
- Single pole single throw (SPST) contact configuration supports straightforward switching needs.
- Quick connect terminal type enables fast and reliable installation.
- Operates efficiently within -40°C to 125°C temperature range handling harsh environments.
- Compact design with dimensions 25.9mm length, 51.9mm height, and 26.5mm depth for versatile mounting options.
- 500Vrms isolation between coil and contact ensures electrical safety and reliability.
- Contact material is silver tin oxide providing excellent conductivity and longevity.
- Manufactured in China with guaranteed new product condition.
Product Description
TE Connectivity 1432772-1 Automotive Relay is engineered for automotive electrical applications requiring a reliable 12V coil voltage relay capable of breaking currents up to 30A with SPST contact configuration.
This relay is part of the TE Connectivity Mini ISO PI series, offering a non-latching coil designed for high life cycle performance. It is suitable for automotive uses such as headlamps, ignition loads, and other critical automotive circuits requiring consistent switching.
Designed with quick connect (QC) terminals, the relay facilitates rapid installation and maintenance in vehicle harnesses. The relay's compact form factor with a length of 25.9mm, height of 51.9mm, and depth of 26.5mm allows flexible mounting in constrained spaces.
Operating reliably from -40°C to 125°C, the relay accommodates the wide temperature variations common in automotive environments while providing 500Vrms isolation from coil to contacts for safety against electrical interference.
The contact material of silver tin oxide ensures excellent conductivity and resistance to welding or degradation over extensive switching cycles, maintaining high reliability throughout its lifespan.
Coil resistance of 90 ohms guarantees energy-efficient coil operation. Single pole single throw (SPST) configuration simplifies control of automotive circuits. Quick connect terminals optimize installation speed and reliability.
Compact dimensions improve integration flexibility in vehicle design. Wide operational temperature range suits automotive environmental conditions. High isolation voltage enhances electrical safety and durability. Premium silver tin oxide contacts confer long-term conductivity and durability.
This TE Connectivity relay is manufactured in China and supplied as a new, genuine component suitable for automotive electrical system repairs or designs. It is categorized under automotive relays in industrial electrical components for vehicles, matching automotive and electronics industry standards.
Explore our catalog for more TE Connectivity Automotive Relays and related electrical components in the Relays & Contactors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive relay operates with a coil voltage of 12V.
It can handle a maximum switching current of 30A.
This model features a single pole single throw (SPST) contact configuration.
The relay has dimensions of 25.9mm in length, 51.9mm in height, and 26.5mm in depth.
The coil resistance is 90 ohms, ensuring optimized coil performance.
It operates efficiently within a temperature range of -40°C to 125°C.
It features quick connect terminals for fast and reliable installation.
It offers 500Vrms isolation between the coil and the contacts for enhanced electrical safety.
The contact material is silver tin oxide, which provides excellent conductivity and longevity.
This relay is manufactured in China.
It is suitable for automotive applications such as headlamps and ignition loads.
It is designed to operate within a wide temperature range and has high isolation voltage, making it suitable for harsh automotive environments.
