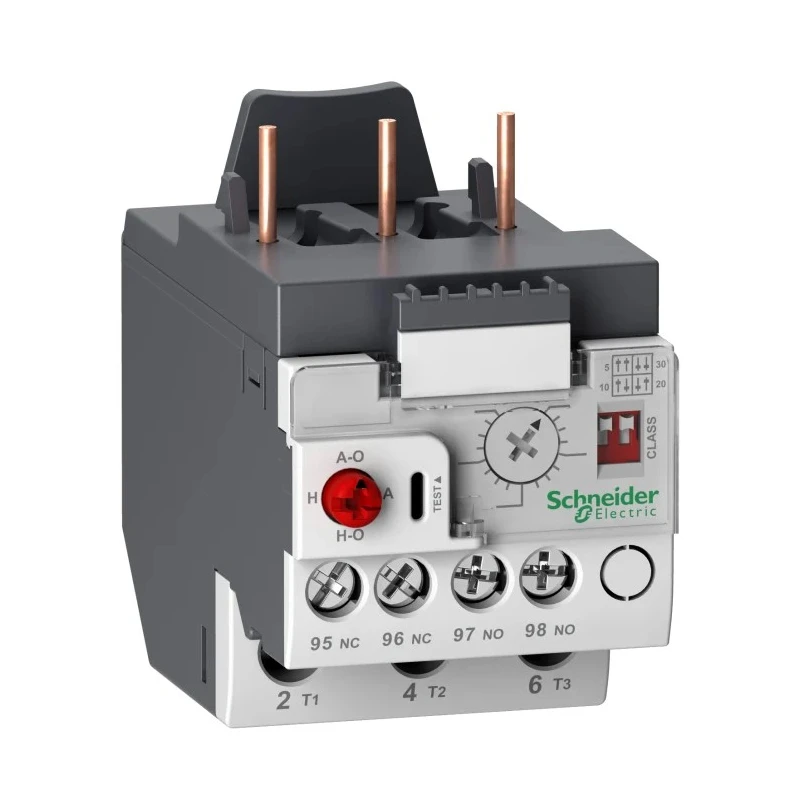

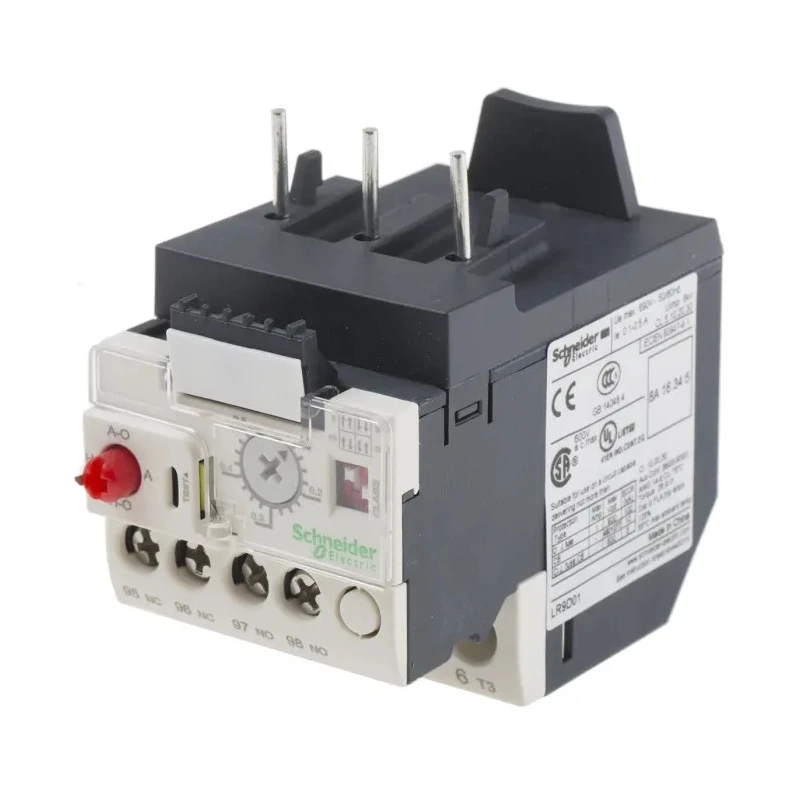

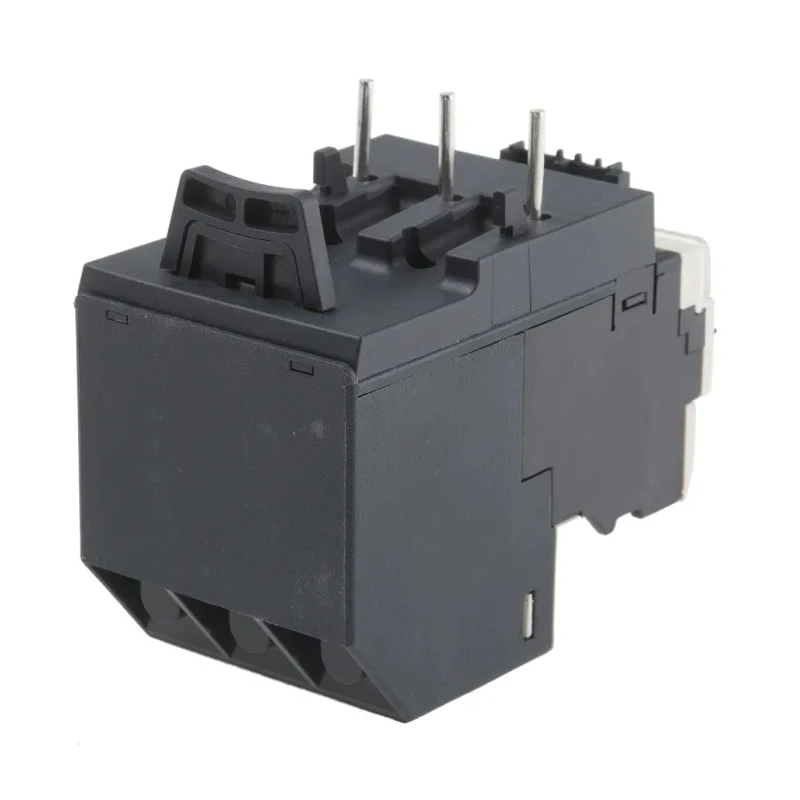

Schneider Electric TeSyS LR Thermal Overload Relay 1 NO/1 NC 0.1-0.5A Adjustable Current Range 3P LR9D01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 45mm |
| Model | LR9D01 |
| Depth | 72.5mm |
| IP Rating | IP20 |
| Width | 79.9mm |
| Mount Type | Under Contactor Mount |
| Series | TeSyS LR |
| Power Rating | 300mW |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Supply Voltage | 690V |
| Contact Voltage | 690V |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 100, 500mA |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3P |
| Control Voltage | 690V |
| Adjustable Current Range | 0.1 → 0.5 A |
Key Features
- The relay has a power rating of 300 mW for efficient protection.
- It supports a pole and throw configuration of 3P suitable for three-phase systems.
- Equipped with screw-type terminals ensuring secure electrical connections.
- Supports both automatic and manual reset methods for versatile control.
- Features IP20 rating on the front panel for basic protection against solid objects.
- Operating temperature ranges from -25°C to 70°C for diverse environments.
- Rated supply and control voltage of 690 V matching industrial power standards.
- Complies with multiple international standards including UL, CSA, and IEC certifications.
Product Description
Schneider Electric LR9D01 TeSyS LR Thermal Overload Relay is a professional grade protective device designed for direct mounting under contactors in industrial electrical systems. This compact relay features an adjustable current range from 0.1 to 0.5 A and a power rating of 300 mW, making it ideal for efficient overload protection in three-phase applications.
The relay is equipped with 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts, providing reliable status indication and control features. Screw terminals ensure dependable and secure wiring connections, while the IP20 rating on the front panel protects the device from ingress of solid objects during operation.
The operating temperature range from -25°C to 70°C allows the LR9D01 to function reliably in varied industrial environments such as HVAC, pumping systems, material handling, packaging, and manufacturing. Compact dimensions (79.9 mm width, 45 mm length, 72.5 mm depth) conserve panel space and facilitate streamlined installation.
The device includes manual and automatic reset methods with a reset button and trip indicator to enhance operational control. Selectable trip classes (5, 10, 20, and 30) enable tailored thermal protection settings according to load requirements.
Rated for 690 V supply and control voltages, this overload relay complies with international standards such as CSA C22.2 No 60947-5-1, UL 60947-5-1, and IEC 60947 series, ensuring highest quality and safety.
The relay offers reliable overload protection with adjustable current settings, enhancing motor and equipment safety. Its compact size and simple mounting method suit a wide range of industrial control panels. Suitable for professional applications including automation, manufacturing, and material handling systems.
Ensures compliance with global safety standards and industrial regulations. Easy to integrate with Schneider Electric TeSys N contactors for compact NEMA starter configurations.
Discover more products like this in our Electronics & Electricals category, under Relays & Contactors, Overload Relay. Enhance your industrial control systems with Schneider Electric quality and innovation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LR9D01 thermal overload relay has an adjustable current range from 0.1 to 0.5 A.
This model has a power rating of 300 mW, designed for efficient overload protection.
The dimensions of the LR9D01 relay are 79.9 mm in width, 45 mm in length, and 72.5 mm in depth.
It is equipped with screw-type terminals, ensuring secure electrical connections.
The operating temperature range for the LR9D01 is from -25°C to 70°C.
The relay has an IP20 rating on the front panel, providing basic protection against solid objects.
The LR9D01 features 2 auxiliary contacts, consisting of 1 normally open (NO) and 1 normally closed (NC).
This model supports both automatic and manual reset methods for versatile control.
The relay supports a pole and throw configuration of 3P, suitable for three-phase systems.
It is rated for a supply and control voltage of 690 V, complying with industrial power standards.
The LR9D01 complies with multiple international standards, including UL, CSA, and IEC certifications.
This relay is suitable for various industrial applications, including HVAC, pumping systems, material handling, packaging, and manufacturing.
