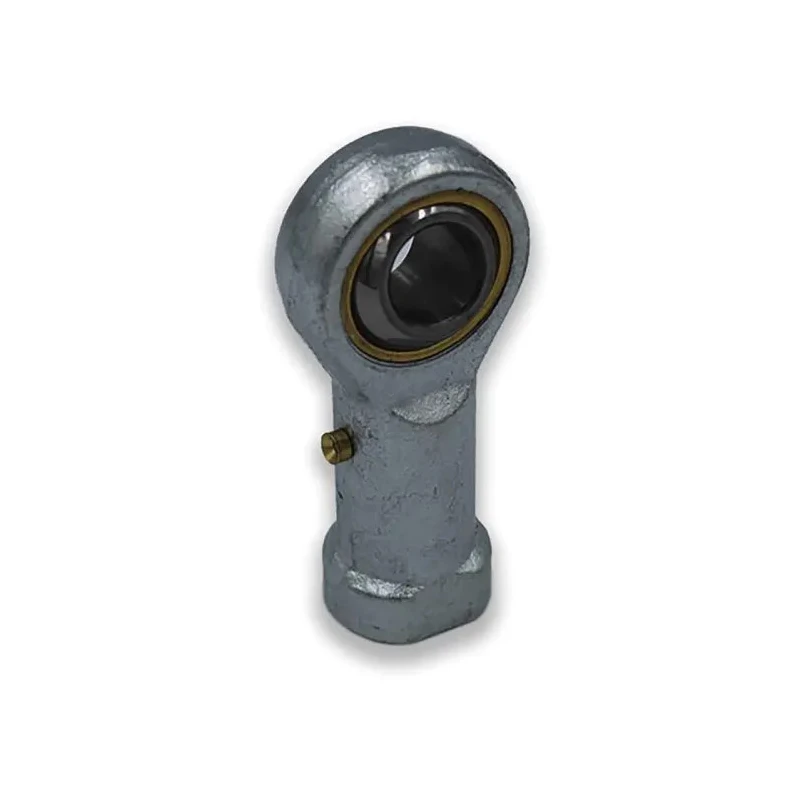

LDK M20 x 1.5 Female Carbon Steel Rod End, 20mm Bore Metric PHS 20

LDK PHS 20 is a female carbon steel rod end bearing with a 20mm bore diameter and M20 x 1.5 metric thread size offering precise and durable connection solutions in mechanical and fluid power systems.

The body is manufactured from carbon steel with clear zinc plating to protect against corrosion and wear, while the ball component is precision ground and polished AISI 52100 bearing steel that is heat treated to achieve a hardness rating of HRC 58-64, ensuring excellent load handling and longevity.

This rod end supports dynamic load ratings up to 23 kN and static load ratings up to 46.5 kN, making it suitable for demanding industrial applications including rotary bearing and housing unit assemblies.

Its sliding contact surfaces consist of steel and brass materials, combined to reduce friction and improve operational efficiency. The overall outside diameter is 46 mm with an overall width of 100 mm, allowing for easy integration into existing mechanical assemblies requiring female metric thread connections.

Commonly used in industrial machinery, fluid power equipment, and tooling industries, this rod end bearing facilitates rotational movement while maintaining structural integrity under load.

Constructed from clear zinc plated carbon steel body ensuring corrosion resistance. Ball made of AISI 52100 bearing steel with heat treatment for hardness and precision. Features a female M20 x 1.5 metric thread connection for compatibility.

Dynamic load rating of 23 kN supports high performance under load. Static load rating of 46.5 kN for robust structural applications. Outside diameter measures 46 mm with an overall width of 100 mm for fitting specifications.

Sliding contact surfaces combine steel and brass materials for reduced friction and durability. Suitable for industrial mechanical, fluid power, and tooling applications demanding reliable rotary bearing units.

This LDK rod end bearing is designed to meet industrial standards and provides reliable operation in various mechanical assemblies and environments. It is a new product of Chinese origin, crafted to support long-term mechanical integrity and performance.
