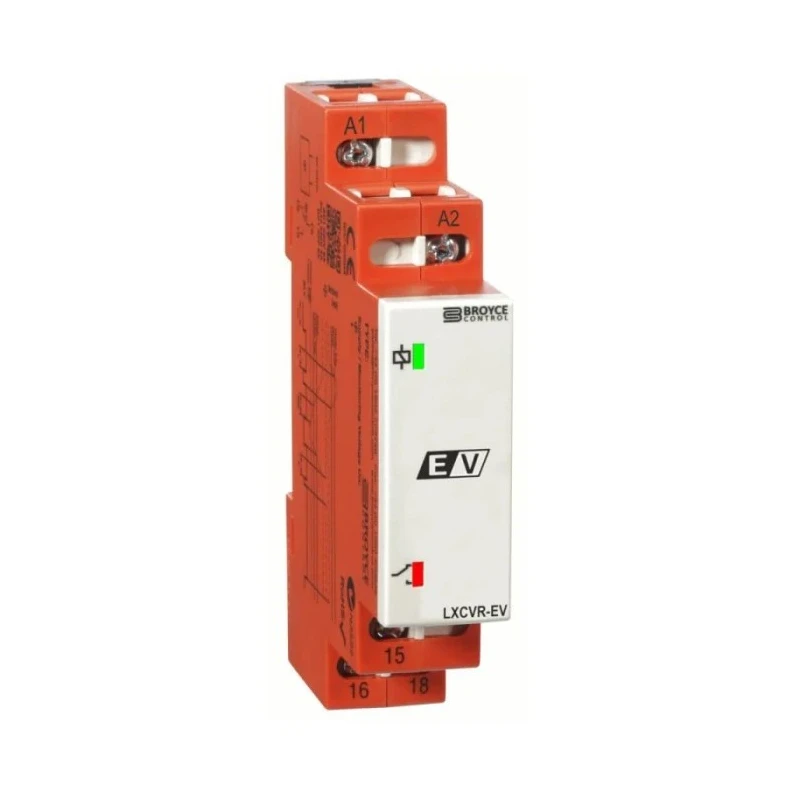

Broyce Control Monitoring Relay 1 Phase 230 V AC SPDT Contact 8A DIN Rail Mount LXCVR-EV 230VAC

Broyce Control LXCVR-EV 230VAC monitoring relay is a specialized electrical component designed for precise monitoring of single phase 230 V AC circuits, predominantly used in electric vehicle charging systems and industrial automation setups. It provides reliable protection by monitoring the supply voltage and operating a relay output to disconnect power if voltage limits are exceeded, ensuring safety and device longevity.

This relay features a single pole double throw (SPDT) contact configuration rated for 8 amperes, compatible with common industrial control devices. The built-in fixed time delay of approximately four seconds enables the relay to avoid nuisance tripping due to transient voltage variations, improving operational stability. The relay operates based on true RMS voltage measurement with a hysteresis of roughly 2%, allowing accurate voltage monitoring under fluctuating load conditions.

The unit's compact form factor, housing width 17.5mm and height 89mm, allows easy DIN rail mounting in control panels, making it adaptable for various installations. Screw type terminals ensure secure electrical connections. It is designed to function reliably within a temperature range from -20°C to 60°C, suitable for diverse industrial environments.

Certified to CE standards and RoHS compliant, this product conforms to IEC requirements typically expected in quality industrial monitoring devices. The clear green LED indicator displays power supply status while a red LED indicates relay activation and timing states, aiding in quick diagnostics and maintenance.

Typical applications include electric vehicle (EV) charging stations, industrial motor controllers, automated machinery safety systems, and other electrical systems requiring voltage monitoring and protective disconnection features. This relay enhances overall operational safety and efficiency for electrical systems across manufacturing, automotive, and infrastructure sectors.

Monitors single phase supply voltage to ensure safe operation. Features a fixed 4 second time delay for under or over voltage trip conditions. True RMS voltage monitoring with approximately 2% hysteresis for stable switching.

Includes green LED for supply status and red LED for relay/timing state indication. Compact DIN rail mount housing with 17.5mm width for easy installation. Designed for operating temperatures between -20°C and 60°C. Equipped with screw terminal connections for secure wiring.

Meets CE and RoHS compliance standards and conforms to IEC specifications. Contact rating of 8A on SPDT relay output supports a variety of control circuits. Explore more quality Monitoring Relays and control devices in the Electronics & Electricals category at EnvMart.
