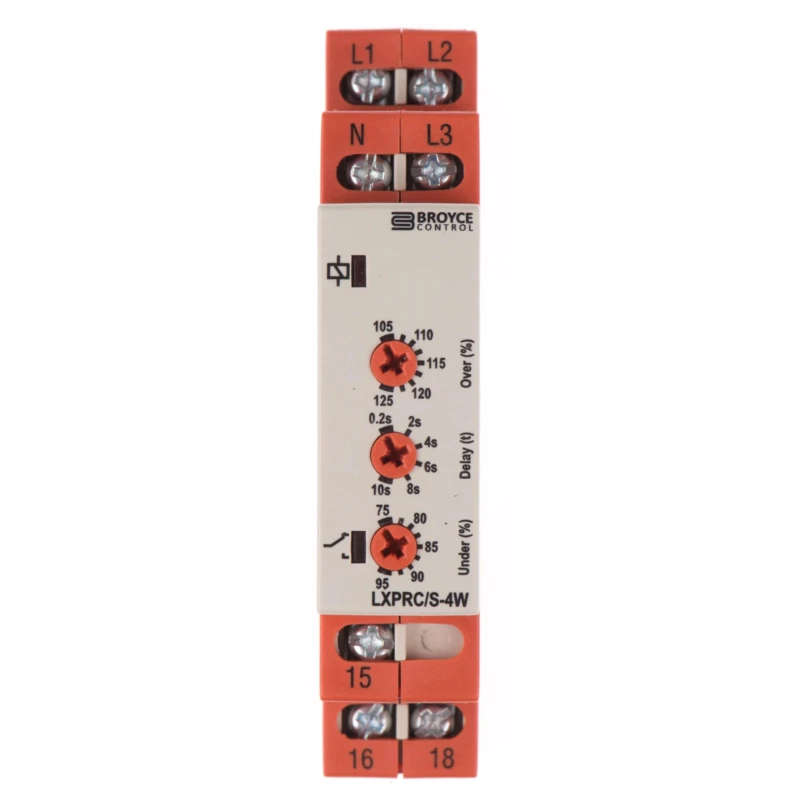

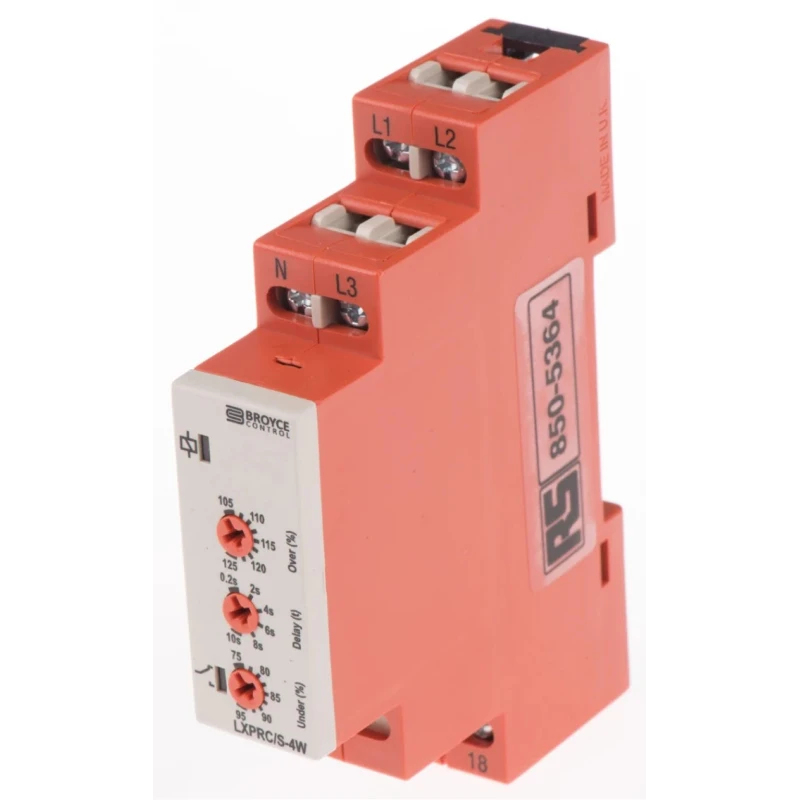

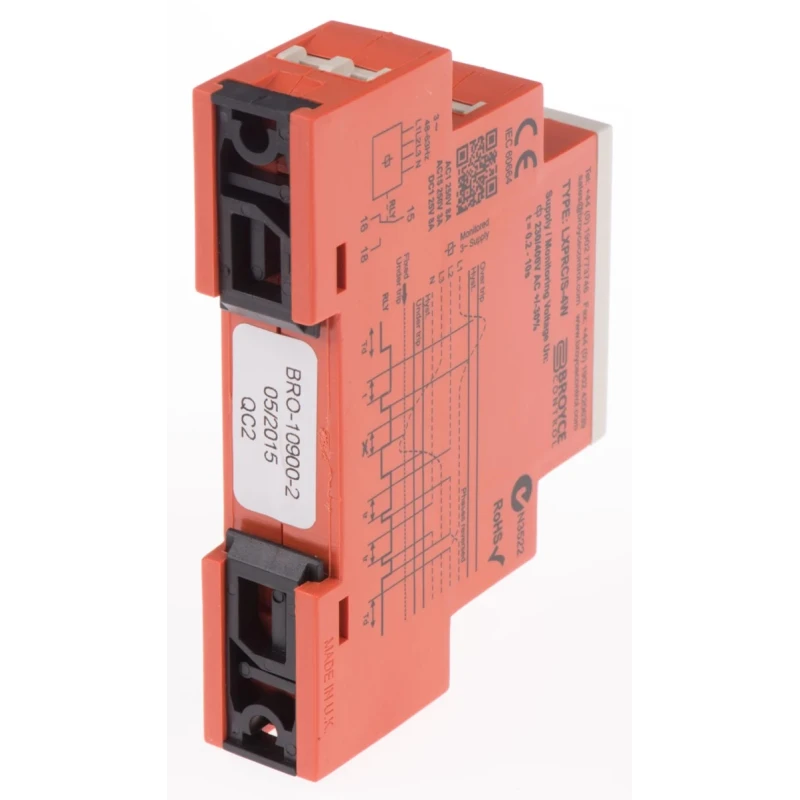

Broyce Control Monitoring Relay 3 Phase SPDT DIN Rail 120V AC 240V AC 25V AC LXPRC/S-4W 230V (400V)

Broyce Control LXPRC/S-4W 230V (400V) monitoring relay is a microprocessor-controlled device engineered for precise phase-to-phase voltage measurement in three-phase electrical installations. It supports single-pole double-throw (SPDT) contacts with an 8 amp contact current and is mounted on a 17.5 mm DIN rail, ensuring easy integration into control panels.

This relay operates at a dual supply AC voltage of 120 and 240 volts along with a 25 V AC supply voltage, making it versatile for a variety of industrial and commercial power monitoring needs. The green LED indicates supply status, whereas the red LED shows relay operational status, facilitating quick visual diagnostics.

The unit complies with crucial safety and electromagnetic compatibility standards such as EN 61000-6-4, CE marking, UL certification, IEC standards, and RoHS directives, making it suitable for use in rigorous industrial environments.

Designed with a high IP20 ingress protection rating and capable of operating safely within ambient temperatures from +60°C down to 60°C, it assures robustness and durability in harsh electrical environments.

The compact form factor measures 89 mm in height, 66.5 mm in length, and 17.5 mm in width, making it suitable for constrained installation spaces while providing reliable monitoring functionality.

Operates at supply AC voltage of 120 and 240 volts and DC supply voltage of 25 volts AC. Single-pole double-throw (SPDT) relay output with 8 amp contact current. Green LED for supply status and red LED for relay status indications.

17.5 mm DIN rail mounting with screw terminal connections. Compliant with EN 61000-6-4, CE, UL, IEC standards, and RoHS directive. IP20 rated enclosure for protection against solid objects and limited access. Operating temperature range of +60°C to 60°C for stable performance.

Compact dimensions suitable for industrial, laboratory, and commercial electrical setups.

Ideal for applications in electrical automation, control panels, and condition monitoring systems in industrial and electrical engineering sectors. This Monitoring Relay ensures precise voltage monitoring, enhancing operational safety and equipment protection.
