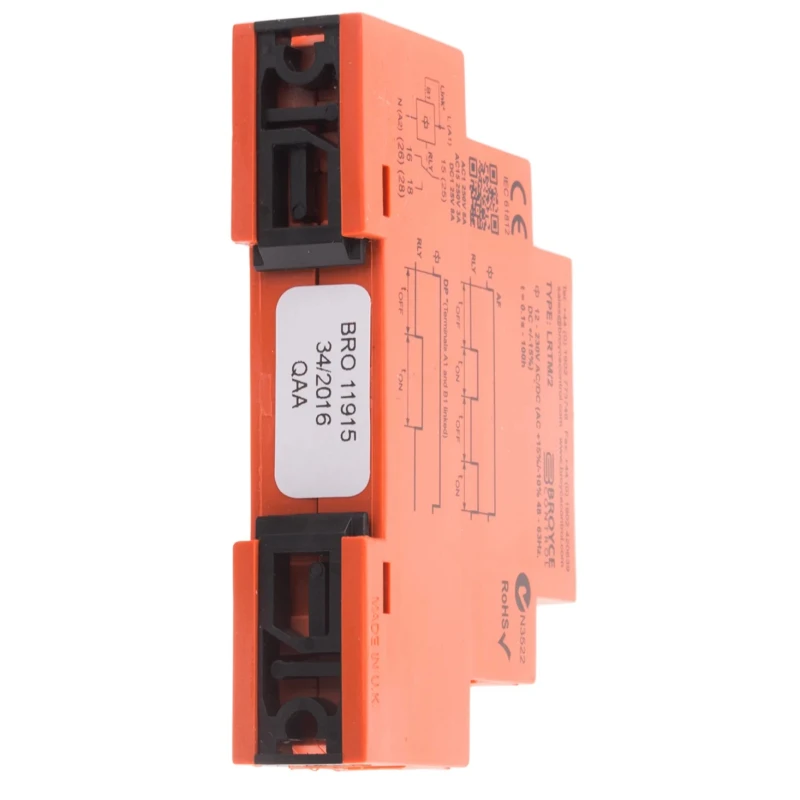

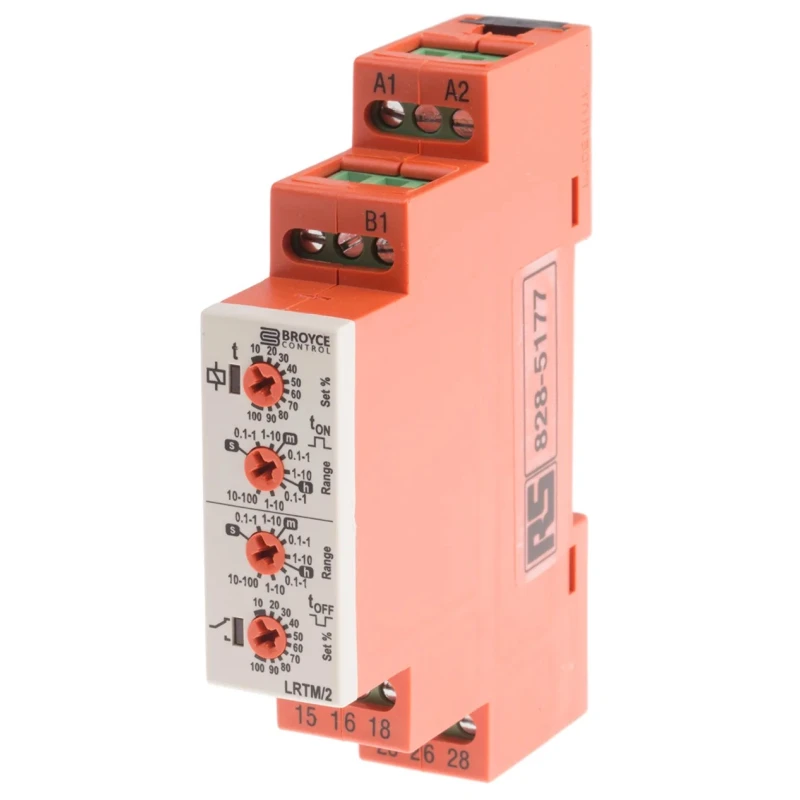

Broyce Control LRTM Series DIN Rail Timer Relay 2-Contact DPDT 230 V AC/DC 0.1 s to 100 h Multifunction LRTM/2 12-230V AC/DC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Broyce Control |
| Height | 66.5mm |
| Function | Offset Double Ring End |
| Length | 89mm |
| Model | LRTM/2 12-230V AC/DC |
| Mode | Multifunction |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | LRTM |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.1 s to 100 h |
| Terminal type | Screw |
| Standards/Approvals | UL, IEC, CE |
| Number of Contacts | 2 |
| Number of Timer Functions | 2 |
| Contact Current | 8A |
| Supply DC Voltage | 230 V dc |
| Timing Adjustment | Screwdriver Slot |
| Supply AC Voltage | 12, 230V ac |
Key Features
- Features 7 selectable time ranges for precise control within 0.1 s to 100 h.
- Equipped with a DPDT relay output rated at 8 A for robust switching.
- Supports a wide supply voltage range from 12 V AC/DC up to 230 V AC/DC.
- Compact 17.5 mm housing designed for DIN rail mounting in control panels.

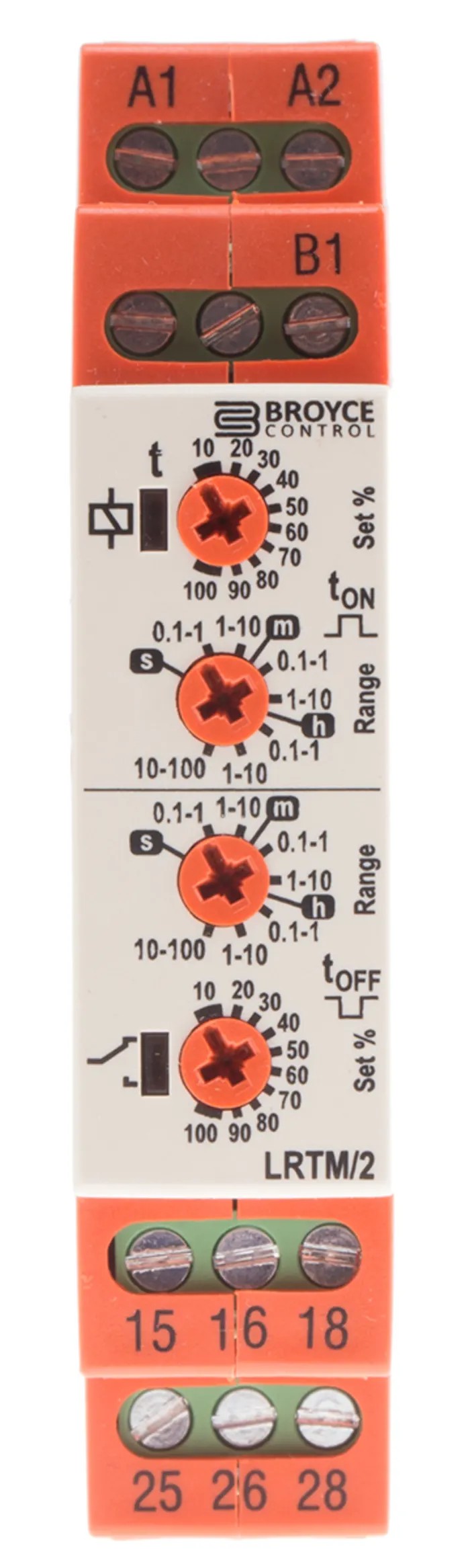

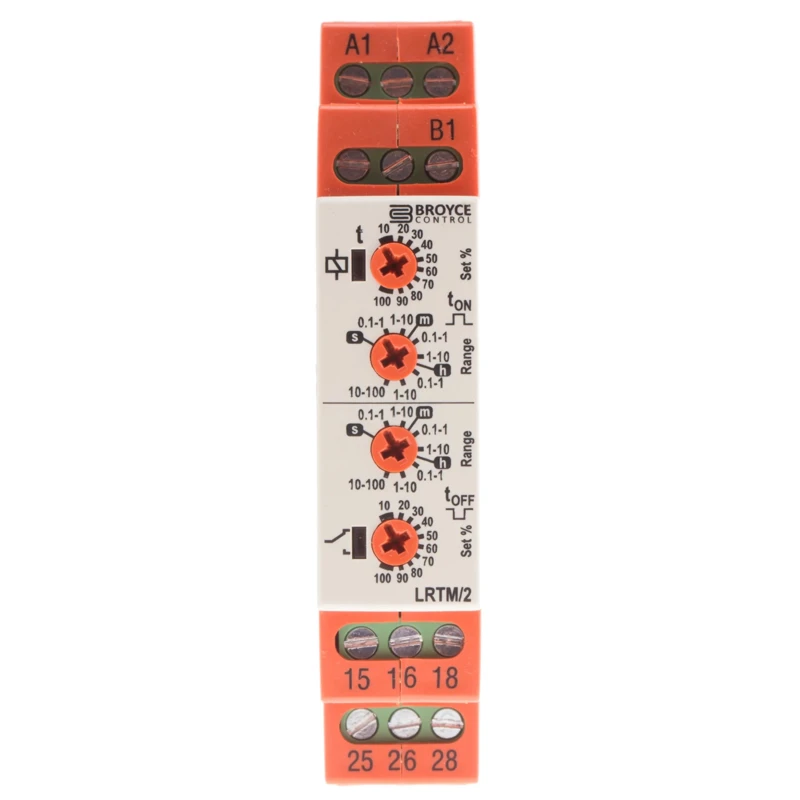

- Easy programming via two rotary switches and screwdriver slot timing adjustment.
- Includes LED indicators for power, timing, and relay status for quick diagnostics.
- Suitable for process control in chemical, textile, mining, irrigation, and food industries.
- Protected with UL, IEC, and CE certifications ensuring compliance with industry standards.
Product Description
Broyce Control LRTM/2 12-230V AC/DC DIN Rail Timer Relay is a solid-state multifunctional timer relay designed for precise timing control in industrial environments. This device supports a time range from 0.1 seconds to 100 hours, making it adaptable for applications requiring short to extensive delay periods. It features a 2-contact DPDT relay output rated for 8 amps, suitable for switching a variety of electrical loads.
The relay is powered from a flexible voltage range of 12 V AC/DC to 230 V AC/DC, facilitating broad compatibility across control systems. Its compact 17.5 mm width and DIN rail mounting system allow efficient panel installation. Timing adjustments are made simple with dual rotary selectors and a screwdriver slot, providing fine-tuning of ON and OFF durations independently.
Safety and compliance are ensured with UL, IEC, and CE certifications, along with IP20 rated terminal protection. LED indicators provide real-time status feedback for supply power, timing activity, and relay operation, enhancing troubleshooting efficiency.
This timer relay is ideal for process control applications in industries such as textiles, chemical processing, mining, irrigation, raw material handling, and food and beverage manufacturing. Its high precision and multifunction capabilities make it a dependable choice for automation and control tasks.
Seven time ranges selectable between 0.1 seconds and 100 hours for flexible timing options. DPDT relay output rated at 8A to handle substantial electrical currents safely. Wide supply voltage range from 12 V AC/DC to 230 V AC/DC to suit diverse power environments.
Compact and robust design featuring DIN rail mounting for streamlined installation. Separate ON and OFF timing adjustments allow tailored cycle programming. LED indication for supply status, timing process, and relay activity enhances monitoring.
Meets international standards including UL, IEC, and CE for safety and reliability. Applications include textile manufacturing, chemical industry, mining, irrigation systems, and food processing plants. Explore a full range of Timer Relays and control components on EnvMart, your trusted platform for industrial electrical equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a selectable time range from 0.1 seconds to 100 hours, allowing for flexible timing options in various applications.
It has a DPDT (Double Pole Double Throw) contact configuration, which allows for versatile switching capabilities.
The relay output is rated for a maximum contact current of 8 amps, suitable for handling substantial electrical loads.
It supports a wide supply voltage range from 12 V AC/DC to 230 V AC/DC, making it compatible with various power environments.
The dimensions are 66.5 mm in height, 89 mm in length, and 17.5 mm in width, designed for compact installation.
Timing adjustments are made using two rotary switches and a screwdriver slot, allowing for precise control of ON and OFF durations.
It is certified with UL, IEC, and CE standards, ensuring compliance with industry safety and reliability requirements.
The minimum operating temperature is -20°C, while the maximum operating temperature is 60°C, making it suitable for a range of environments.
This model is designed for DIN rail mounting, facilitating efficient installation in control panels.
It is suitable for process control applications in industries such as textiles, chemical processing, mining, irrigation, and food manufacturing.
This timer relay supports two timer functions, allowing for versatile timing control in various applications.
