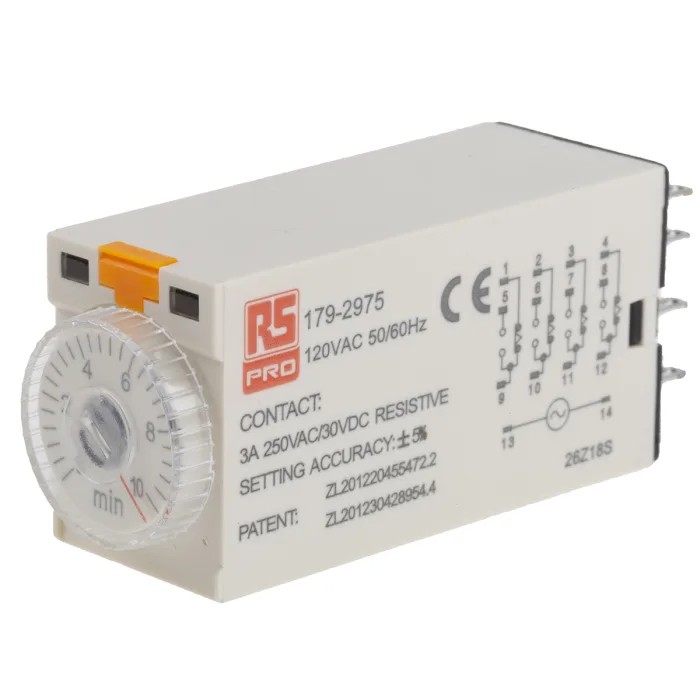

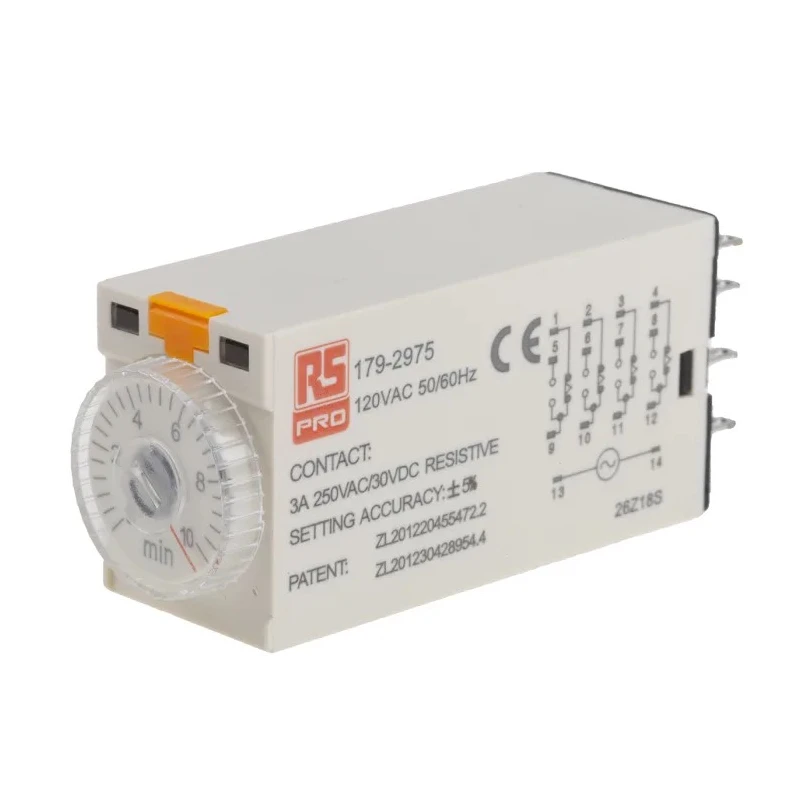

RS PRO Timer Relay, 4-Contact 110V AC, 0.5 to 10 min On Delay, 4PDT Switch Configuration 4-Contact

RS PRO 4-Contact Timer Relay model 4-Contact is a high-performance timer relay operating at 110V AC with a timing range of 0.5 to 10 minutes and a single timing function set to On Delay. This 4PDT switch configured relay offers reliable switching capabilities up to 250V and supports contact currents of 3A, making it suitable for a wide range of electrical automation and control applications.

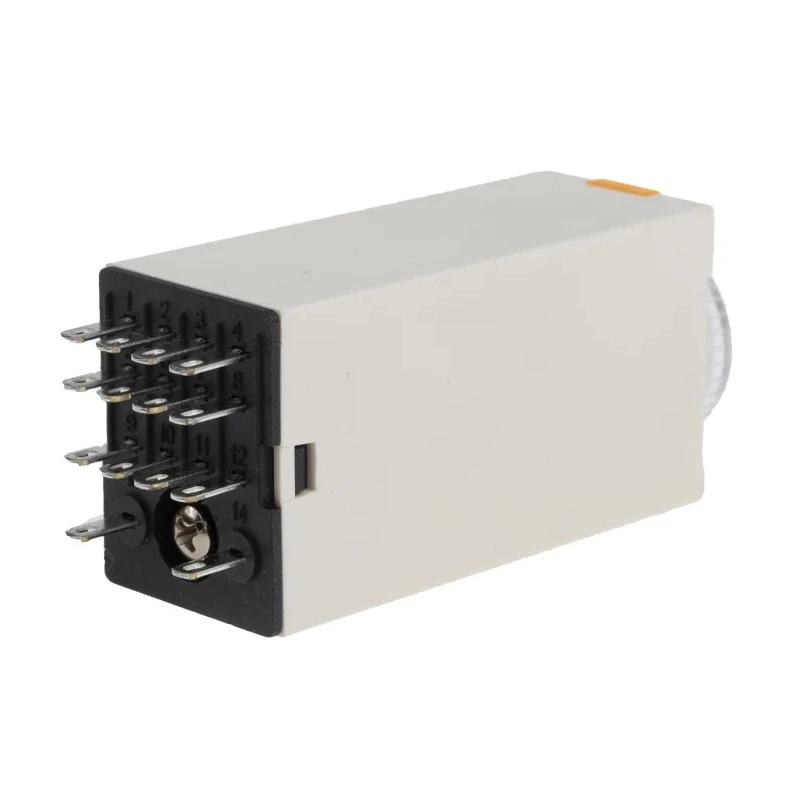

Designed for industrial and commercial environments, this timer relay features a 14-pin plug-in terminal type for straightforward installation and replacement. Its compact size - 53mm in length, 21.5mm in width, and 2.8mm in height - allows integration into tight spaces within control panels and automation systems.

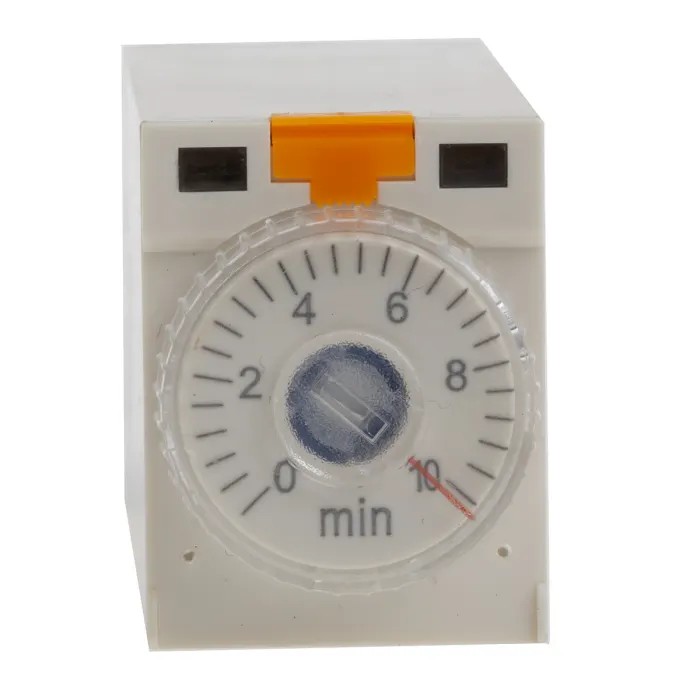

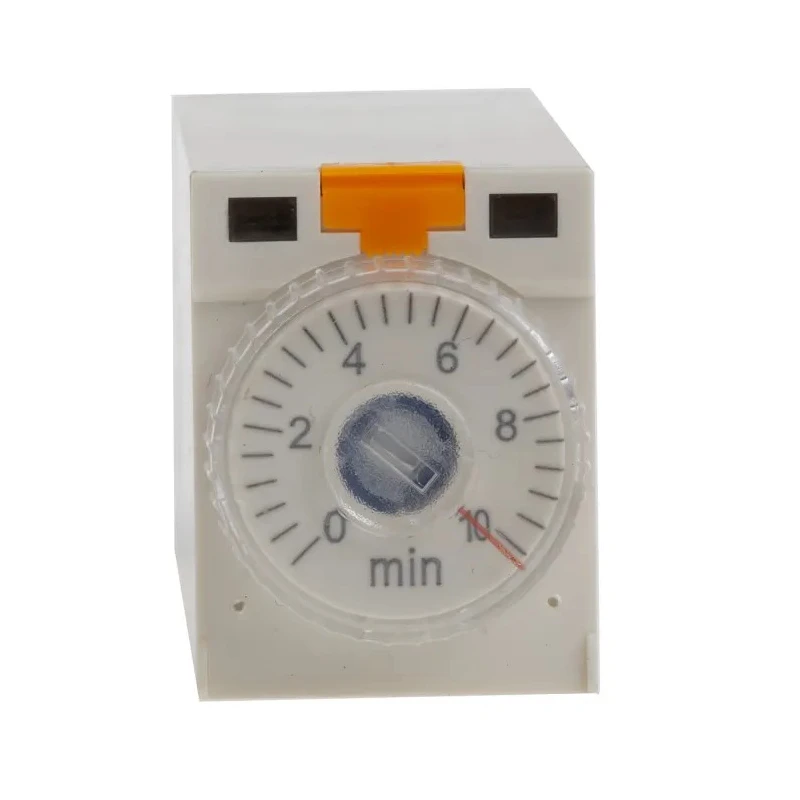

The dial-based analogue timing adjustment provides easy and precise control over timing settings from 0.5 to 10 minutes. Engineered to function reliably across operating temperatures from -10°C to 55°C, it ensures consistent performance under various environmental conditions.

This product complies with RoHS standards, underscoring RS PRO’s commitment to environmental compliance and quality assurance.

Compatible sockets for this 14-pin timer relay include models 121-7802 or 121-7803, which are supplied with a metal clip for secure connection. The relay is built in China, reflecting global manufacturing standards and quality control.

Operates within a temperature range of -10°C to 55°C. Equipped with a 14-pin terminal for easy plug-in connection. Supports a switching voltage up to 250V and contact current of 3A. Features an analogue dial for smooth timing adjustment from 0.5 to 10 minutes.

Compact dimensions: length 53mm, width 21.5mm, height 2.8mm suitable for space-efficient installations. Suitable for industrial, electrical automation, and control panel use. On delay timing mode ensures accurate delayed switching.

RoHS compliant, ensuring environmentally friendly manufacturing standards.

RS PRO Timer Relays are valuable components in industrial automation, HVAC systems, manufacturing control circuits, and laboratory equipment. Their precise timing functions help optimize process control, safety interlocks, and equipment sequencing.
