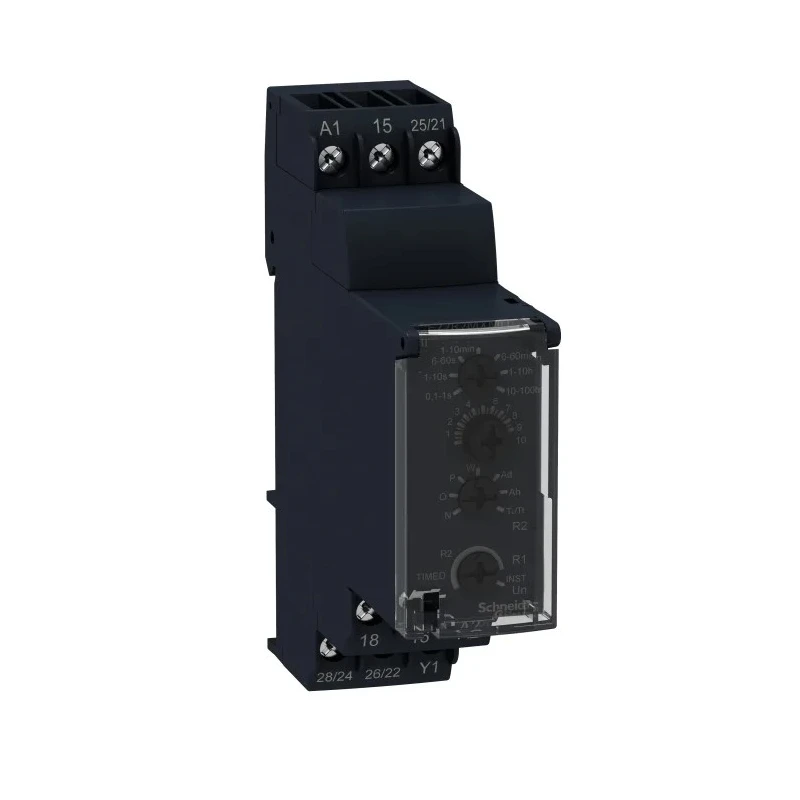

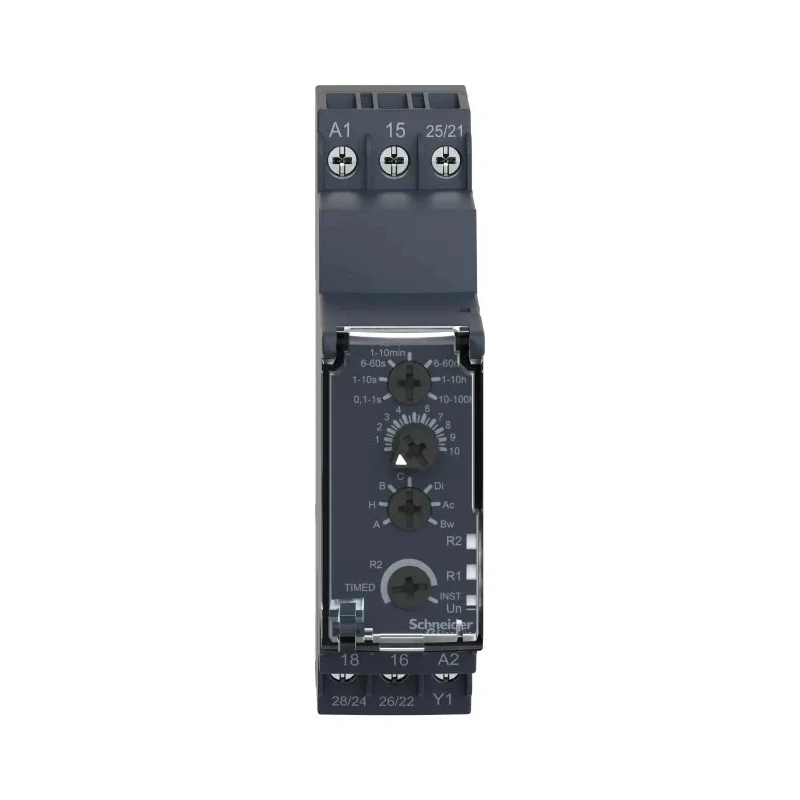

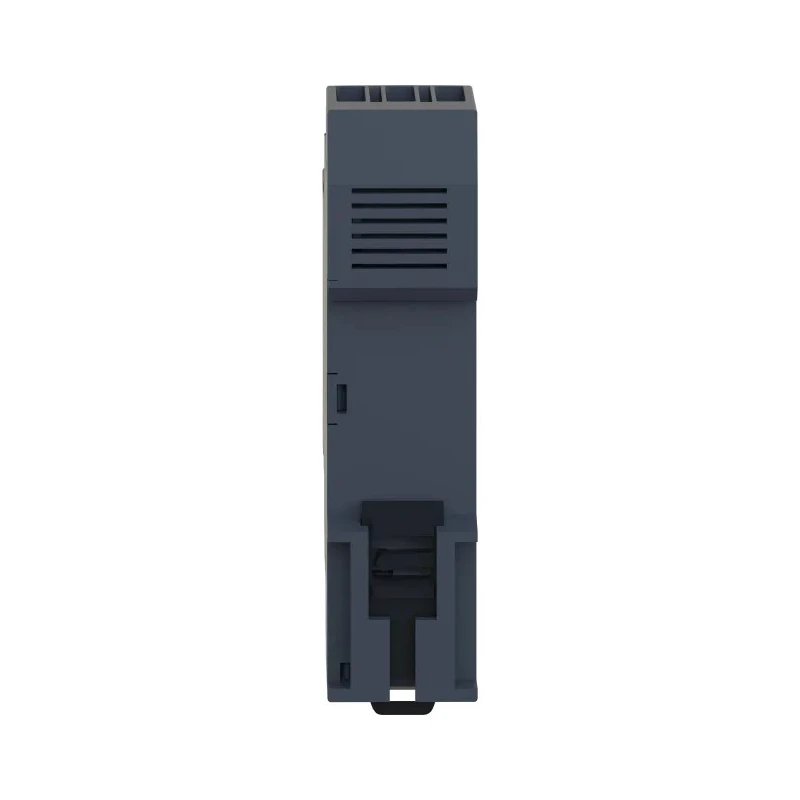

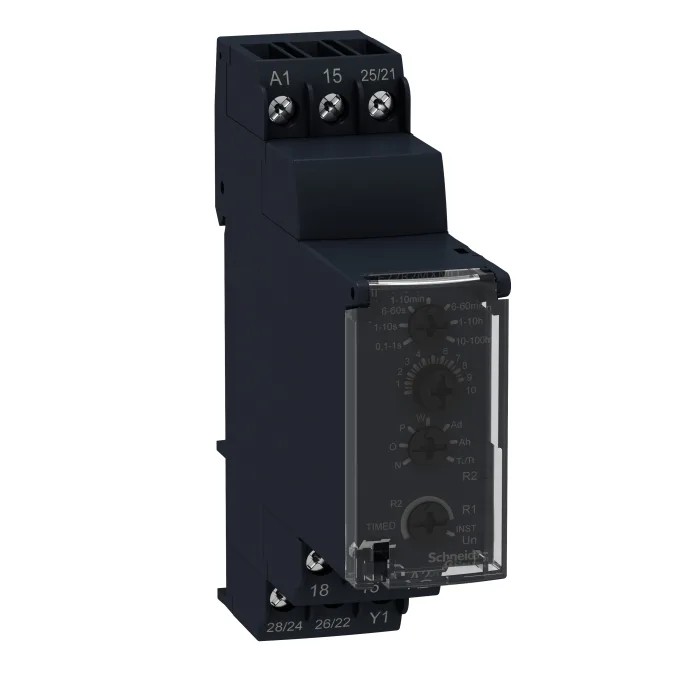

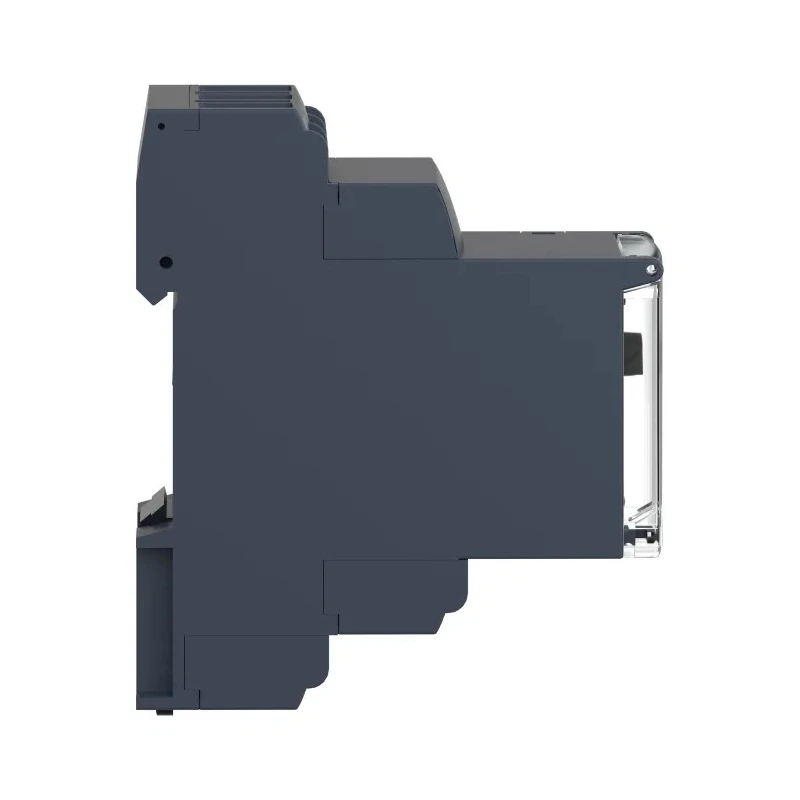

Schneider Electric Harmony Time Series DIN Rail Multifunction Timer Relay, 4-Contact DPDT, 24 V dc 24V ac 240 V RE22R2MMU
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Height | 79.5mm |
| Function | AC |
| Length | 22.9mm |
| Model | RE22R2MMU |
| IP Rating | IP20, IP40, IP50 |
| Mode | Multifunction |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | Harmony Time |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.1 s to 100 h |
| Terminal type | Screw |
| Number of Contacts | 4 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 250V |
| Contact Current | 8A |
| Supply DC Voltage | 24 V dc |
| Timing Adjustment | Knob |
| Supply AC Voltage | 24, 240V ac |
Key Features
- Multifunction timer relay with DPDT contact configuration for versatile switching options.
- Wide timing range from 0.1 seconds up to 100 hours for flexible application.
- Suitable for DIN rail mounting with compact dimensions of 22.5mm width and 79.5mm height.
- Operates reliably within temperature range of -20°C to 60°C.
- Maximum contact current rating of 8 A for industrial automation use.
- Screw terminal type ensures secure and reliable wiring connections.
- IP20, IP40, and IP50 ratings provide protection against ingress for various environments.
- Integrated status LEDs provide operational feedback for easy monitoring.
Product Description
Schneider Electric RE22R2MMU Harmony Time Series DIN Rail Timer Relay is a multifunction device designed for a wide range of industrial and electrical automation applications. It features a flexible timing range from 0.1 seconds to 100 hours and supports supply voltages between 24 V dc and 240 V ac making it ideal for diverse control tasks.
This timer relay supports a 4-contact DPDT configuration providing multiple switching options suitable for complex control circuits. Its compact design, with dimensions of 22.5mm width, 22.9mm length, and 79.5mm height, facilitates easy installation on standard DIN rails, saving space in electrical panels.
Designed for durability and reliability, it operates within a temperature range from -20°C to 60°C and withstands harsh conditions with IP ratings of IP20, IP40, and IP50. The device features screw terminals that allow secure connections compatible with cables up to 2.5 mm² without cable ends.
Its multifunction capability supports both on-delay and off-delay timing functions, as well as additional timing modes essential for HVAC systems, lighting control, motor start delays, and safety interlocks. The integrated status LEDs provide clear, real-time operational feedback enhancing ease of maintenance and monitoring.
The relay is compliant with a comprehensive set of international standards including IEC 60068-2 series tests, EN 61000 electromagnetic compatibility standards, IEC 61812-1, IEC 60664-1, and EN 55022, ensuring top-quality performance and safety requirements are met.
Multifunction timer relay for versatile timing operations. Wide operational timing range of 0.1 s to 100 h. Compact DIN rail mount design suitable for tight panel spaces. 4-contact DPDT configuration for flexible circuit control.
Robust operating temperature range from -20°C to 60°C. Maximum contact current of 8 A for industrial loads. Secure screw terminal connections compatible with up to 2.5 mm² cables. Multiple IP ratings (IP20, IP40, IP50) for environmental protection.
Complies with IEC and EN international standards for reliability.
This timer relay is widely utilized in industrial automation, manufacturing processes, HVAC systems, building lighting controls, and motor control applications. Its flexible timing functions and robust design make it a dependable choice for precise control and enhanced safety across various industrial and commercial sectors.
Explore the Schneider Electric Harmony Time Series and other premium industrial automation products on EnvMart for reliable, high-performance control solutions.
Explore more products in our Timer Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timing range of this multifunction timer relay is from 0.1 seconds to 100 hours, allowing for flexible application in various control tasks.
This model features a 4-contact DPDT (Double Pole Double Throw) configuration, providing versatile switching options for complex control circuits.
The dimensions of this timer relay are 22.5mm in width, 22.9mm in length, and 79.5mm in height, making it suitable for DIN rail mounting in tight spaces.
The maximum contact current rating for this unit is 8 A, suitable for industrial automation applications.
It supports supply voltages of 24 V dc and 24 V ac to 240 V ac, making it versatile for different electrical systems.
This model has IP ratings of IP20, IP40, and IP50, providing varying levels of protection against ingress in different environments.
It operates reliably within a temperature range of -20°C to 60°C, suitable for various industrial conditions.
Wiring is secured using screw terminals, which can accommodate cables up to 2.5 mm² without cable ends, ensuring reliable connections.
This timer relay supports multiple functions, including on-delay and off-delay timing modes, making it suitable for various control applications.
It complies with several international standards, including IEC 60068-2, EN 61000, IEC 61812-1, IEC 60664-1, and EN 55022, ensuring safety and performance.
The timer relay is designed for DIN rail mounting, facilitating easy installation in electrical panels.
It features integrated status LEDs that provide operational feedback for easy monitoring and maintenance.
