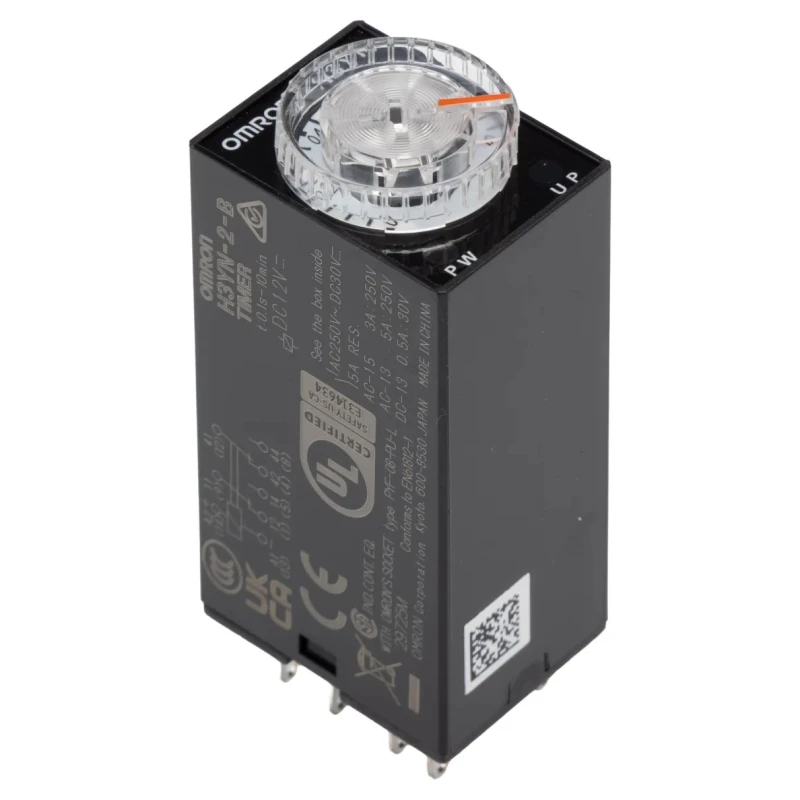

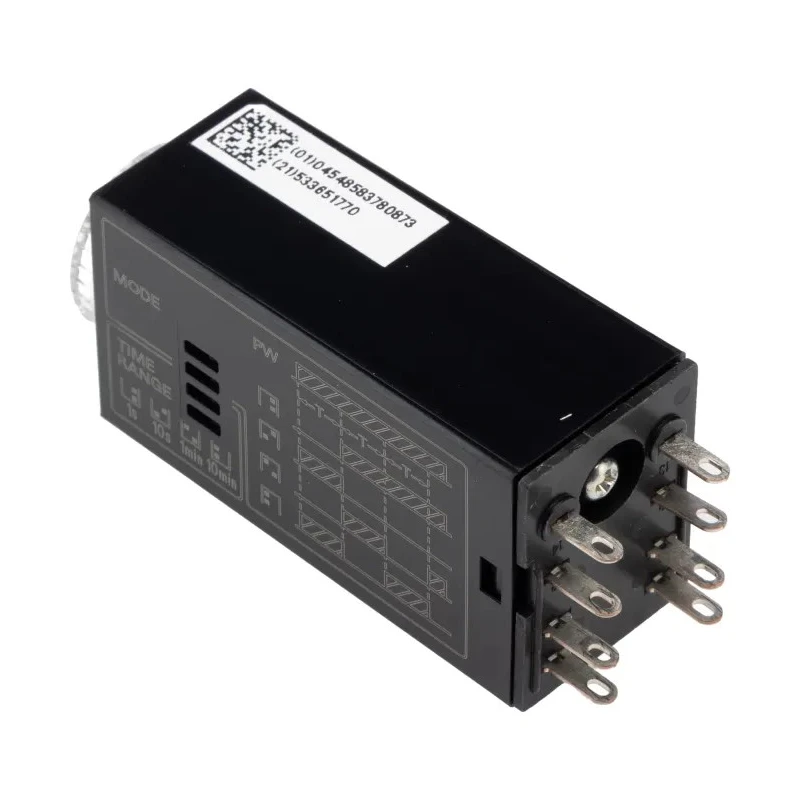

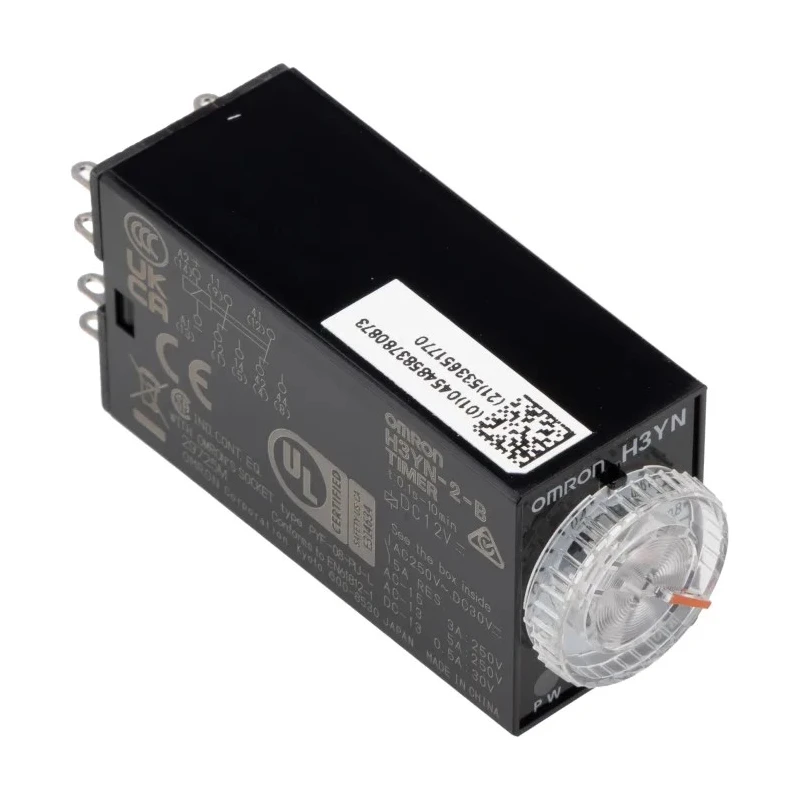

Omron Multifunction Panel Solid State Timer, 4-Contact, 125 V dc, 12 V ac, Time Range 0.1 s to 10 min, DPDT Contact H3YN

Omron H3YN-2-B DC12 multifunction panel solid state timer is a miniature timer designed for precision timing applications in industrial automation, electrical control panels, and signal conditioning systems. It supports a wide supply voltage range of 125 V DC and 12 V AC, enabling flexible deployment in various circuits requiring time-delayed operations.

This timer offers multifunctional timing capabilities with an adjustable time range from 0.1 seconds up to 10 minutes, suitable for processes that require precise control delay or cycle timing. It features a double-pole double-throw (DPDT) contact configuration providing 4 contacts to switch multiple circuits reliably.

The device is panel mount type, designed with a compact form factor measuring 21.5 mm in length, 56.6 mm in width, and 28 mm in height. It features push-in terminals that simplify installation and maintenance. Rated IP40, it provides adequate protection against solid particles larger than 1 mm, making it suitable for indoor industrial environments.

The timer operates effectively in a temperature range of -10°C to 55°C and can handle contact currents up to 5 amperes, making it ideal for controlling loads within this rating. Timing adjustment is easily managed through a dial control, allowing quick and accurate setting changes on-site.

This product meets stringent global standards including CE, IEC 60664-1, CCC, Lloyds, UL 508, EN 61812-1, and CSA C22.2 No. 14, ensuring reliable and safe operation in various industrial scenarios. Its black design and plug-in terminal layout are compatible with Omron MY power relays, enhancing integration possibilities.

Supports a supply DC voltage of 125 V and AC voltage of 12 V for versatile power options. Equipped with 4 contacts for reliable switching operations. Time adjustment via dial ensures easy and accurate setting. Designed for panel mounting with a compact size of 21.5 mm length, 56.6 mm width, and 28 mm height.

IP40 rated for protection against solid objects larger than 1 mm. Operates reliably within temperature range from -10°C to 55°C. Contact current rating up to 5 A suitable for various control circuits. Push-in terminal type enables quick installation and wiring.

Conforms to multiple industrial standards including CE, UL 508, IEC 60664-1, CCC, and CSA C22.2 No. 14. Originates from China, ensuring international quality compliance.

Ideal for industrial automation, manufacturing, electrical control panels, HVAC control systems, and other commercial applications requiring precise time delay and switching functions. The Omron H3YN series is recognized for durability, multifunction capability, and ease of integration.
