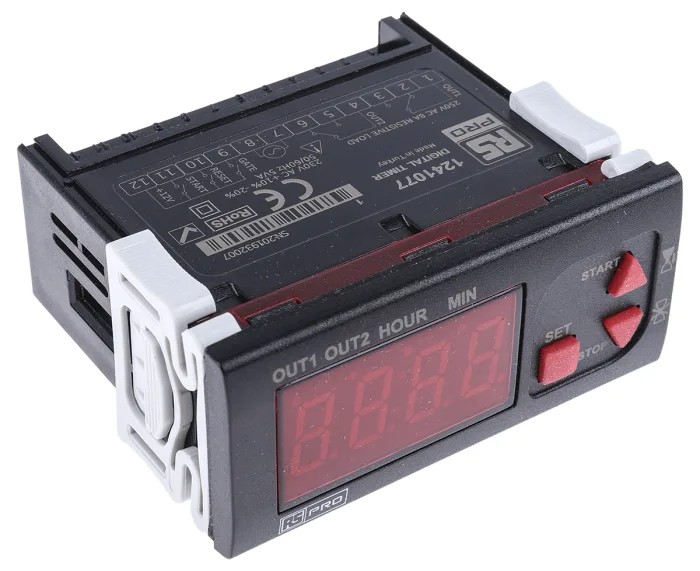

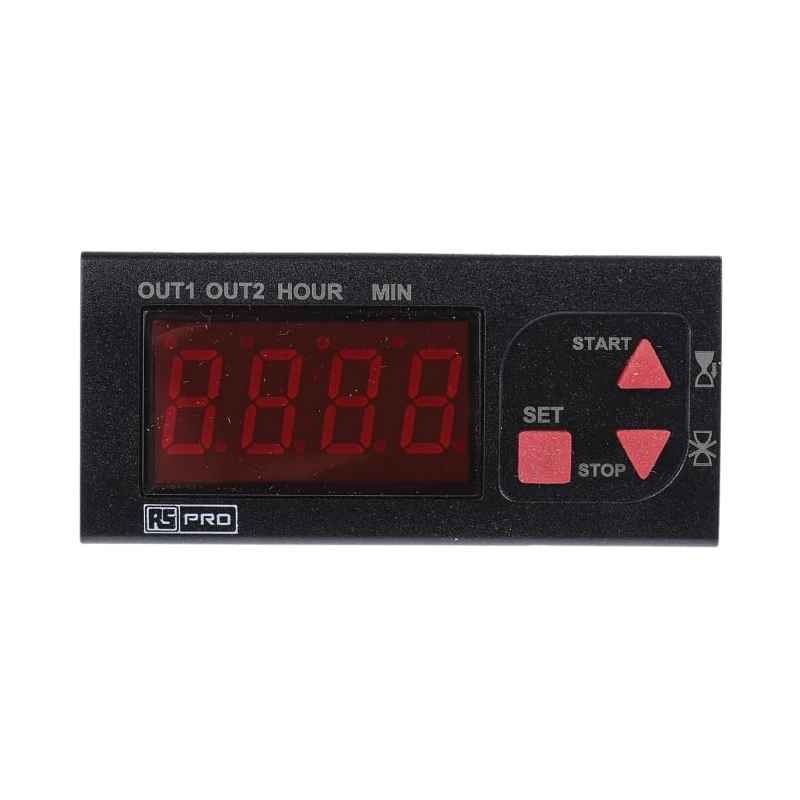

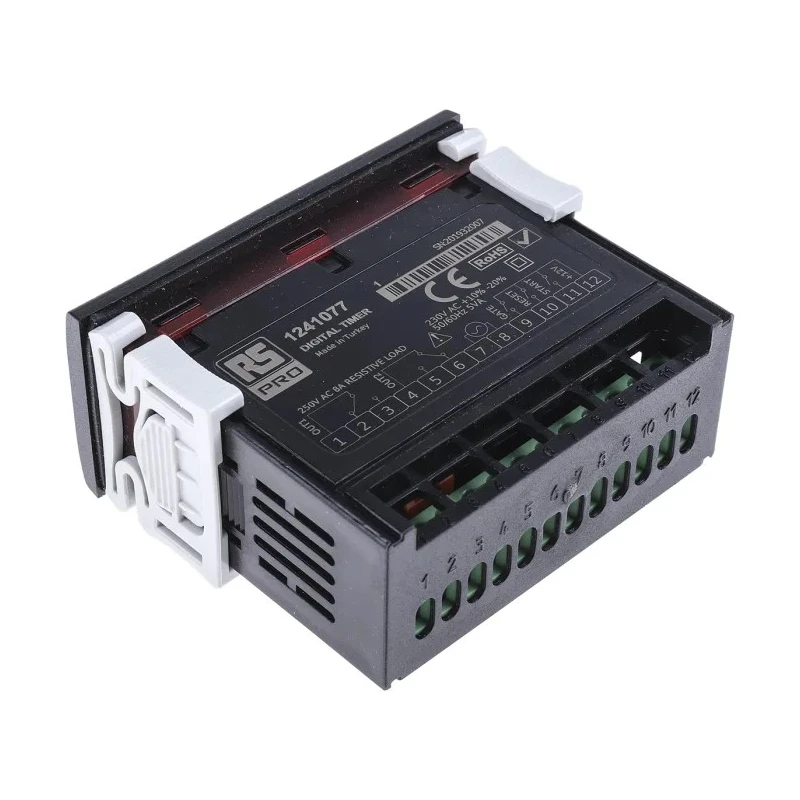

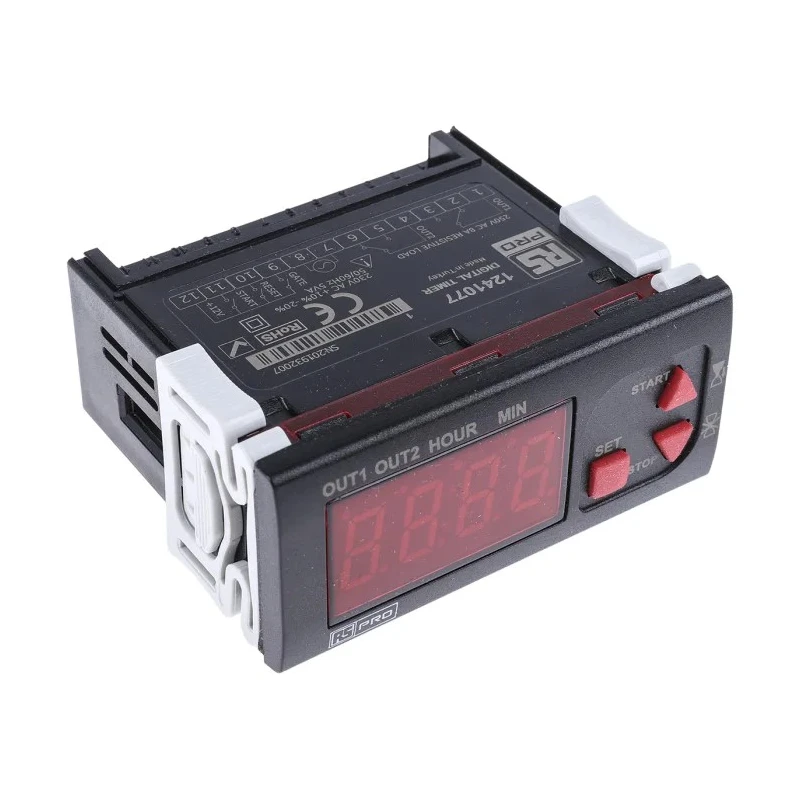

RS Pro Panel Timer Relay 2-Contact, 24 V dc 230V ac, 0 to 01 min to 99 to 59 h Multifunction 124-1077
Specifications
| Country of Origin | Turkey |
|---|---|
| Brand | RS Pro |
| Height | 5mm |
| Function | Timer |
| Length | 35mm |
| Model | 124-1077 |
| IP Rating | IP65, IP20 |
| Mode | Multifunction |
| Width | 77mm |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Time Range | 0 to 01 min to 99 to 59 h |
| Terminal type | Screw |
| Number of Contacts | 2 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 250V ac |
| Contact Current | 8A |
| Supply DC Voltage | 24 V dc |
| Supply AC Voltage | 230V ac |
| Standards/ApprovalsIEC 60227, IEC 60245, EN 61326-1 | 2013, EN60529, CE, EN 61010-1:2010 |
Key Features
- Compact 35 x 77 mm size suitable for panel mounting.
- Features 9 timer modes with multifunction operation.
- Easy to install with screw terminal type and front panel controls.
- Timer supports timing in seconds, minutes, and hours with visible LED display.
- Operational temperature range from 0°C to 50°C ensuring reliable performance.
- Contacts rated at 8A with switching voltage up to 250V AC.
- Equipped with IP65 and IP20 ingress protection ratings.
- Includes 8 different warning tones and time remaining display.
Product Description
RS Pro 124-1077 Panel Timer Relay is a multifunction digital timer relay designed for precise control in industrial and automation systems. Operating at 24 V dc and 230 V ac supply voltages, this relay offers flexible timing ranges from 0:01 minute up to 99:59 hours, enabling a wide array of timing operations suitable for various electrical and control applications.
The compact form factor of 35 mm length by 77 mm width and 5 mm height allows easy flush-panel mounting in control cabinets with panel mount type design. Screw terminals provide secure electrical connections. User-friendly controls on the front panel allow convenient start, stop, and reset operations alongside external digital inputs for start, reset, and hold functions.
The timer relay supports 9 distinct timer modes and multifunction operations, all displayed on a clear, bright LED panel indicating time remaining for user convenience. Contact rating is robust at 8 amperes, with switching voltage capability up to 250V AC, ensuring compatibility with typical industrial control circuits.
Built for durability, the device operates reliably within temperatures ranging from 0°C to 50°C and boasts IP65 and IP20 ingress protection ratings, making it suitable for challenging environments requiring dust and splash resistance.
Compliant with multiple international standards including IEC 60227, IEC 60245, EN 61326-1:2013, EN60529, CE, and EN 61010-1:2010, this RS Pro timer relay guarantees quality and safety for professional use.
Compact 35 x 77 mm panel mount size. Multifunction timer relay with 9 timer modes. Supports timing scales from seconds to hours. Contact rating 8A, switching voltage up to 250V AC. Front panel controls with start/stop/reset features.
IP65 and IP20 ratings for dust and water protection. Operating temperature 0°C to 50°C. Bright LED display showing time remaining. Multiple warning tones for operational alerts. Compliant with international IEC and CE standards.
Ideal for industrial, automation, electrical panels, manufacturing control, and HVAC system applications. The RS Pro 124-1077 timer relay ensures precise timing management and reliable performance for diverse time delay requirements. Explore more Timer Relays and automation components in EnvMart's Electrical & Automation categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This timer relay supports a timing range from 0:01 minute to 99:59 hours, allowing for flexible timing operations in various applications.
The dimensions of this model are 35 mm in length, 77 mm in width, and 5 mm in height, making it suitable for panel mounting.
It has a contact rating of 8A and can handle a switching voltage of up to 250V AC, ensuring compatibility with typical industrial control circuits.
This unit operates on a supply voltage of 24 V DC and 230 V AC, providing versatility for different electrical systems.
The RS Pro 124-1077 features 9 distinct timer modes, allowing for multifunction operations tailored to various timing needs.
It has IP65 and IP20 ingress protection ratings, providing resistance against dust and splashes, suitable for challenging environments.
The operational temperature range for this timer relay is from 0°C to 50°C, ensuring reliable performance in various conditions.
This relay is equipped with screw terminals, providing secure electrical connections for installation.
It complies with multiple international standards including IEC 60227, IEC 60245, EN 61326-1:2013, EN60529, CE, and EN 61010-1:2010, ensuring quality and safety for professional use.
The front panel features user-friendly controls for start, stop, and reset operations, along with external digital inputs for additional functions.
The RS Pro 124-1077 timer relay is manufactured in Turkey.
This model is ideal for applications in industrial automation, electrical panels, manufacturing control, and HVAC systems, providing precise timing management.
