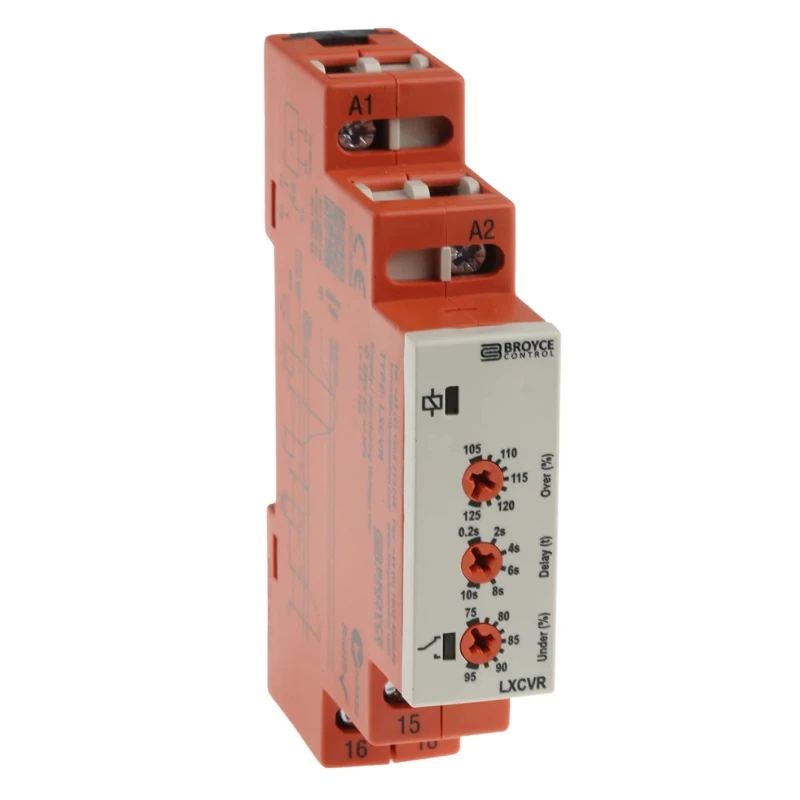

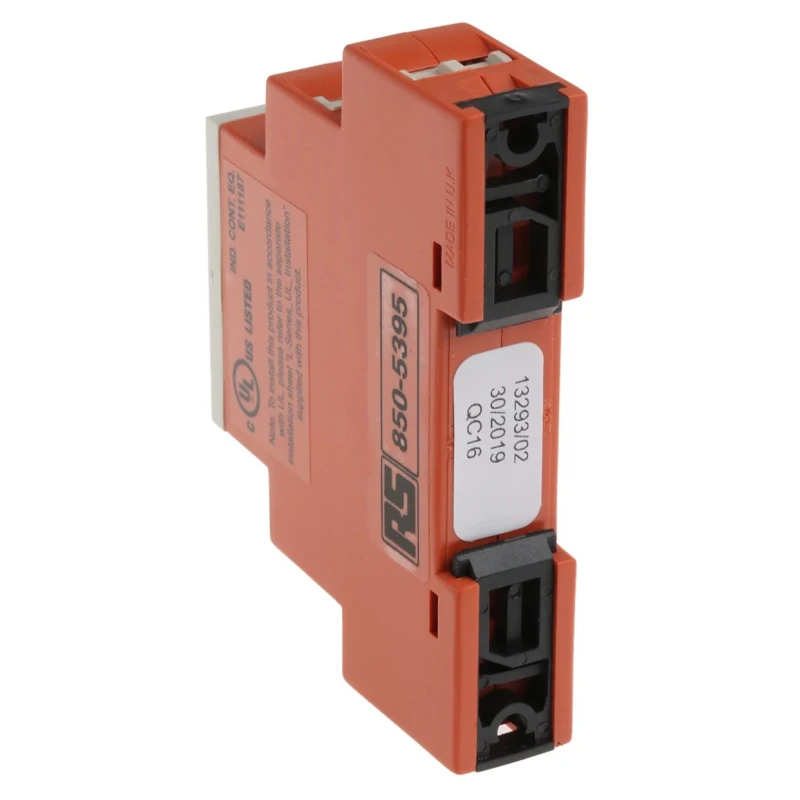

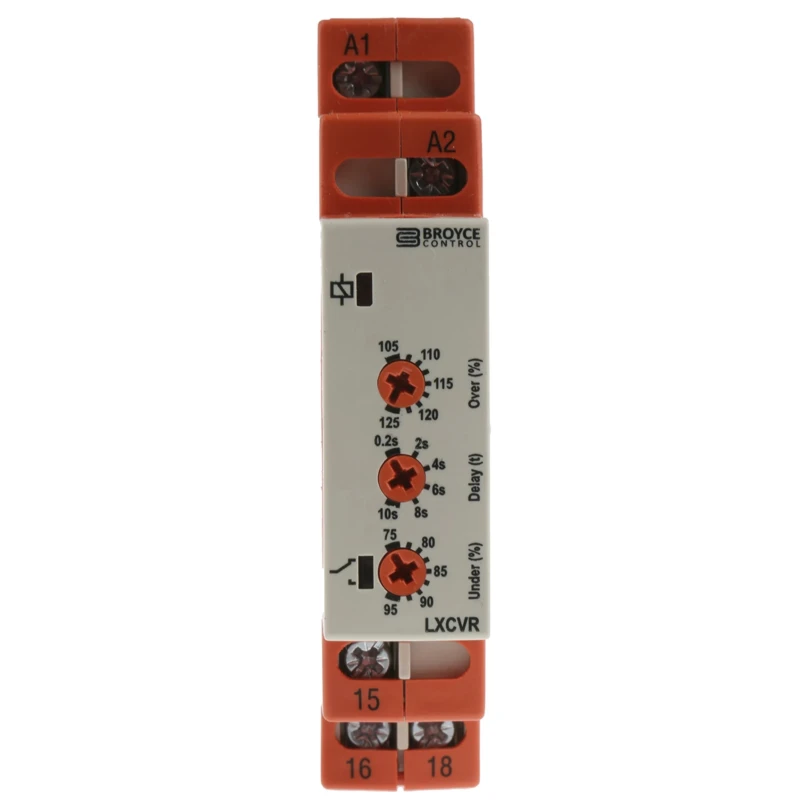

Broyce Control Monitoring Relay 1 Phase SPDT DIN Rail Mount 230V AC LXCVR 230V
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Broyce Control |
| Height | 89mm |
| Length | 66.5mm |
| Model | LXCVR 230V |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | L |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Switching Voltage | 250V ac |
| Contact Current | 8A |
| Supply DC Voltage | 25 V ac |
| Supply AC Voltage | 230V ac |
Key Features
- The relay features a single-pole double-throw (SPDT) contact configuration rated at 8A current.
- It operates with a supply AC voltage of 230V and DC voltage of 25V AC.
- The device has an IP20 rating suitable for general electrical environments.
- Operating temperature range is from +60°C to 60°C.
- Mount type is DIN rail with screw terminal connections.
- Power consumption is low at 8VA for efficient operation.
- Compliance with EN 61000-6-4, IEC, CE, RoHS, and UL standards ensures reliability and safety.
- Green LED indicates supply status and red LED shows relay status for clear diagnostics.
Product Description
Broyce Control LXCVR 230V is a monitoring relay designed for industrial and commercial applications requiring precise control of electrical systems. This relay adapts to single-phase electrical circuits with a 230V AC supply voltage and features an SPDT contact configuration rated for 8 amperes. It is equipped with screw terminals for secure wiring and optimizes space with a standard 17.5mm DIN rail housing.
The relay operates within an ambient temperature range of +60°C to 60°C, making it suitable for various environmental conditions in automation, manufacturing, and electrical control panels. Its microprocessor-based functionality allows for advanced monitoring and control with reliable switching at a switching voltage of up to 250V AC.
The device includes green and red LED indicators for visual supply and relay status, facilitating quick diagnostics in maintenance and operational environments. Power consumption is efficient at 8VA, supporting energy-conscious designs.
Certified to meet EN 61000-6-4, IEC, CE, RoHS, and UL standards, the relay ensures compliance with global safety and electromagnetic compatibility requirements. Its robust construction with an IP20 ingress protection rating suits indoor electrical enclosures and control gear installations.
Manufactured in the United Kingdom, the LXCVR 230V is part of the reliable L series of control relays that incorporate the latest technology with adjustable user features for versatile control solutions. The compact dimensions of 89mm height, 66.5mm length, and 17.5mm width enable efficient use of panel space.
The relay features a single-pole double-throw (SPDT) contact configuration rated 8A current. Microprocessor-based for enhanced control and reliability. Green LED for supply indication and red LED for relay status. Standard DIN rail mounting with screw terminal connections.
Complies with EN 61000-6-4, IEC, CE, RoHS, and UL standards. Compact dimensions: 89mm height, 66.5mm length, 17.5mm width. Power consumption is 8VA for efficient operation. Suitable for industrial, automation, manufacturing, and electrical control applications.
Explore the entire range of Monitoring Relays and control devices on EnvMart for quality and performance in electrical automation systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a single-pole double-throw (SPDT) contact configuration rated for 8A current.
The relay operates with a supply AC voltage of 230V and a supply DC voltage of 25V AC.
The maximum switching voltage is 250V AC.
The dimensions are 89mm in height, 66.5mm in length, and 17.5mm in width.
This model is designed for DIN rail mounting with screw terminal connections.
The power consumption is low at 8VA, which supports efficient operation.
It operates within a temperature range of +60°C to 60°C.
The IP20 rating indicates suitability for general electrical environments, specifically for indoor electrical enclosures.
It complies with EN 61000-6-4, IEC, CE, RoHS, and UL standards for safety and electromagnetic compatibility.
It includes a green LED for supply status indication and a red LED for relay status indication.
This model uses screw terminals for secure wiring connections.
It is suitable for industrial, automation, manufacturing, and electrical control applications.
