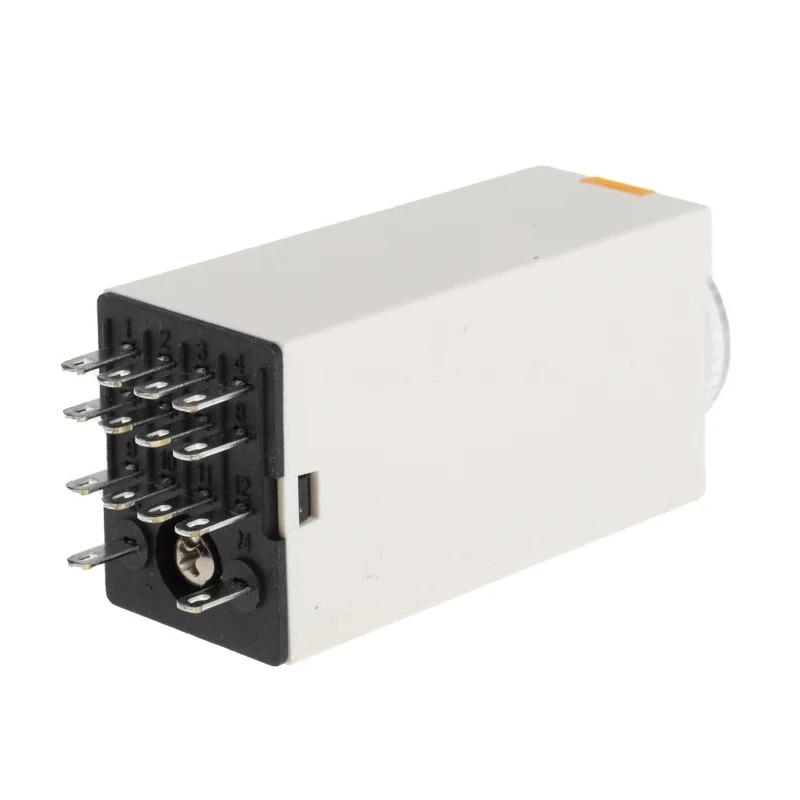

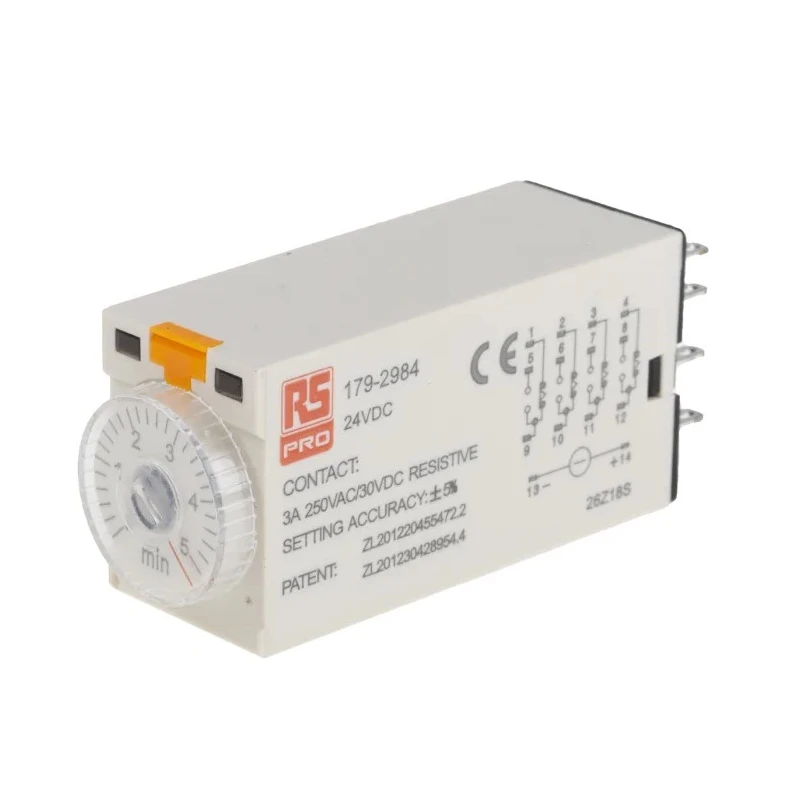

RS PRO Plug-In Timer Relay, Series , 4-Contact, 24 V dc, 0.2 s to 5 min Time Range, 1-Function ON Delay, 4PDT 179-2984
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 179-2984 |
| Suitable sockets for the 8-pin and 14-pin timer relays from this series are | 121-7802 or 121-7803 (Note: The sockets are supplied with a metal clip.) |
Key Features
- This timer relay provides a time range from 0.2 seconds up to 5 minutes.
- Equipped with 4 contacts in a 4PDT switch configuration.
- Features a 14-pin plug-in mount for straightforward installation.
- Designed for ON delay timer function with an analogue dial for adjustment.
- Compatible with relay sockets 121-7802 or 121-7803 supplied with metal clip.
- Maximum operating temperature of 55 °C and minimum operating temperature of -10 °C.
- RoHS compliant for environmental safety.
Product Description

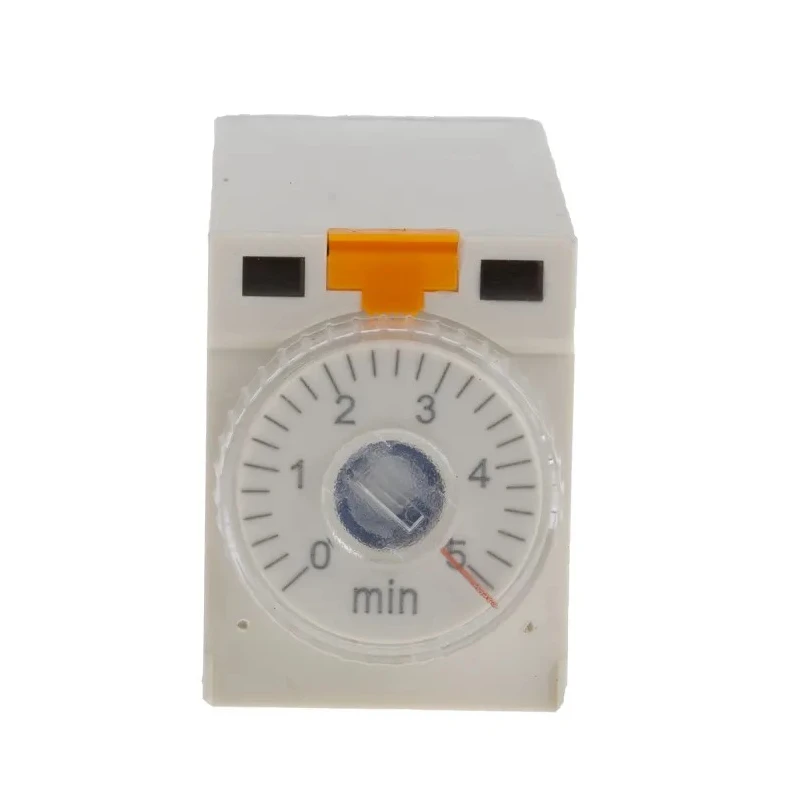

RS PRO 179-2984 Plug-In Timer Relay is engineered for precise time delay control in industrial and electrical automation applications. Featuring a 24 V dc supply voltage and four contacts arranged in a 4PDT switch configuration, this timer relay is designed for ON delay operation with a time range adjustable from 0.2 seconds to 5 minutes. The timing is conveniently set via an analogue dial adjustment.
The relay's compact dimensions of 53 mm length, 21.5 mm width, and 21.5 mm height support easy integration into control panels. Its 14-pin plug-in mounting promotes fast, modular installation, compatible with relay sockets such as model numbers 121-7802 or 121-7803, supplied with metal clips for secure fitting.
Rated for a contact current of 3 A at switching voltages of 24 V dc, the timer relay offers reliable switching performance suitable for various control and signaling systems. It operates effectively within an ambient temperature range from -10°C to 55°C and meets environmental compliance with RoHS standards.
This timer relay series is widely utilized in industrial automation, manufacturing process control, HVAC systems, and other electronic timing requirements where accurate delay control is critical. Its robust design and flexible timing adjustment make it ideal for integration in relay logic circuits and programmable control setups.
This timer relay provides a time range from 0.2 seconds up to 5 minutes. Equipped with 4 contacts in a 4PDT switch configuration. Features a 14-pin plug-in mount for straightforward installation. Designed for ON delay timer function with an analogue dial for adjustment.
Compatible with relay sockets 121-7802 or 121-7803 supplied with metal clip. Maximum operating temperature of 55 °C and minimum operating temperature of -10 °C. RoHS compliant for environmental safety. Explore more Timer Relays and reliable electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This timer relay provides a time range from 0.2 seconds up to 5 minutes.
It is equipped with 4 contacts in a 4PDT switch configuration.
The supply voltage for this timer relay is 24 V dc.
This model is designed for an ON delay timer function.
It is compatible with relay sockets 121-7802 or 121-7803, which are supplied with a metal clip.
The relay has compact dimensions of 53 mm in length, 21.5 mm in width, and 21.5 mm in height.
The maximum operating temperature is 55 °C, while the minimum operating temperature is -10 °C.
The timer relay is rated for a contact current of 3 A at switching voltages of 24 V dc.
Timing is conveniently set via an analogue dial adjustment.
This timer relay is widely utilized in industrial automation, manufacturing process control, and HVAC systems.
It meets RoHS compliance for environmental safety.
It features a 14-pin plug-in mount for straightforward installation.
