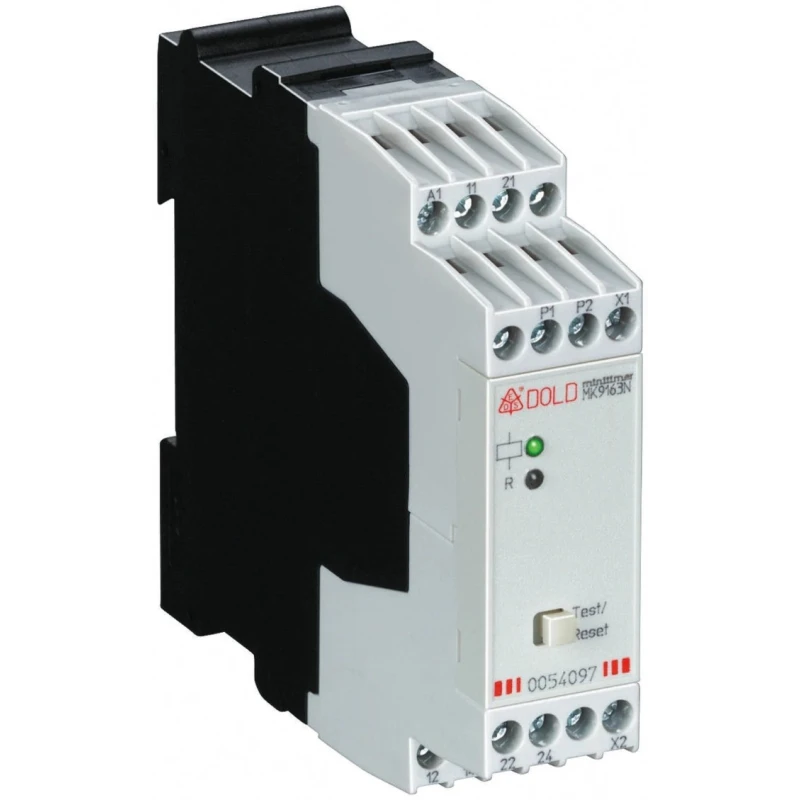

Dold Monitoring Relay DPDT DIN Rail 230V AC Thermistor Motor Protection Relay MK9163N.12/110 ATEX AC50/60Hz 230V
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Dold |
| Height | 90mm |
| Length | 102mm |
| Model | MK9163N.12/110 ATEX AC50/60Hz 230V |
| IP Rating | IP40, IP20 |
| Mount Type | DIN Rail |
| Series | MK 9163N ATEX |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Standards/Approvals | CE, CCC |
| Dold Monitoring Relay, DPDT, DIN Rail 230V acBrand | Dold |
Key Features
- Designed for detection of temperature limit exceedance and sensor circuit faults.
- Equipped with DPDT contact configuration and DIN rail mounting for easy installation.
- Includes LED indicators for auxiliary voltage and contact position status.
- Features error memory and reset functions for enhanced reliability.
- Complies with EN 60947-8 and EN 60079-14 standards, suitable for industrial environments.
- Operates between +60°C minimum and 60°C maximum temperature ratings.
- Compact 22.5 mm width with output relay following closed circuit current principle.
- Manufactured in Germany and includes CE and CCC approvals.
Product Description
The Dold MK9163N.12/110 ATEX AC50/60Hz 230V monitoring relay is a thermistor motor protection relay designed for industrial and automation use, providing reliable temperature and sensor circuit fault monitoring.
This relay supports 1 input for 1 to 6 thermistors and operates on the closed circuit current principle where the output relay remains inactive during fault conditions, enhancing safety and diagnostic capability. It is configured with double pole double throw (DPDT) changeover contacts for versatile control applications.
DIN rail mounting and screw terminals allow for secure and convenient installation in electrical control panels. The product features LED indicators for both auxiliary voltage and contact position, allowing quick visual status assessment.
The relay includes an error memory and reset function ensuring faults are recorded and addressed timely. With an overall width of only 22.5 mm, it fits into compact control systems.
Certified with CE and CCC approvals and designed according to standards EN 60947-8 and EN 60079-14, the MK9163N series includes an ATEX approval variant suitable for hazardous area applications. It protects against temperature limit breaches, wire breaks, and short circuits in sensor circuits.
The relay operates reliably within a temperature range of +60°C minimum and 60°C maximum and is manufactured in Germany under stringent quality controls. Designed for detection of temperature limit exceedance and sensor circuit faults.
Equipped with DPDT contact configuration and DIN rail mounting for easy installation. Includes LED indicators for auxiliary voltage and contact position status. Features error memory and reset functions for enhanced reliability.
Complies with EN 60947-8 and EN 60079-14 standards, suitable for industrial environments. Operates between +60°C minimum and 60°C maximum temperature ratings. Compact 22.5 mm width with output relay following closed circuit current principle.
Manufactured in Germany and includes CE and CCC approvals.
This Dold monitoring relay is ideal for industrial, electrical automation, manufacturing, and HVAC control systems requiring precise temperature and motor protection monitoring. For additional models and Dold Monitoring Relay solutions, explore the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of +60°C minimum to 60°C maximum.
It is designed for DIN rail mounting, allowing for secure and convenient installation in electrical control panels.
The relay features a double pole double throw (DPDT) contact configuration, suitable for versatile control applications.
It complies with EN 60947-8 and EN 60079-14 standards, and includes CE and CCC approvals.
This unit has a compact width of 22.5 mm, with a height of 90 mm and a length of 102 mm.
It supports monitoring for 1 input with 1 to 6 thermistors.
It includes an error memory and reset function, allowing for timely recording and addressing of faults.
The relay is equipped with screw terminals for secure connections.
It has an IP rating of IP40 and IP20, indicating its level of protection against dust and water.
This monitoring relay is manufactured in Germany, ensuring adherence to stringent quality controls.
The output relay operates on a closed circuit current principle, remaining inactive during fault conditions to enhance safety.
It is suitable for industrial, electrical automation, manufacturing, and HVAC control systems requiring temperature and motor protection monitoring.
