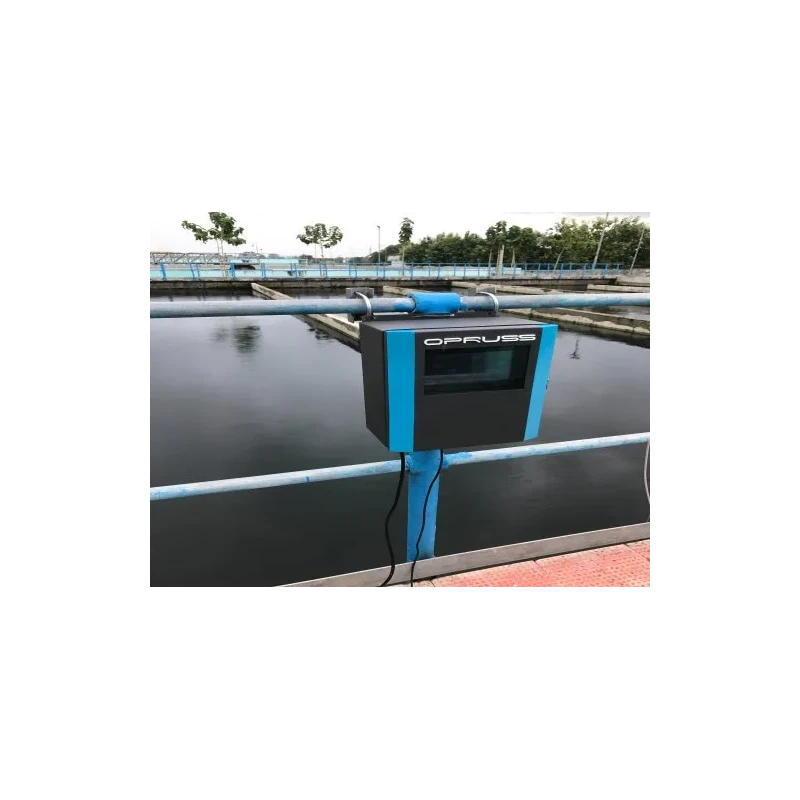

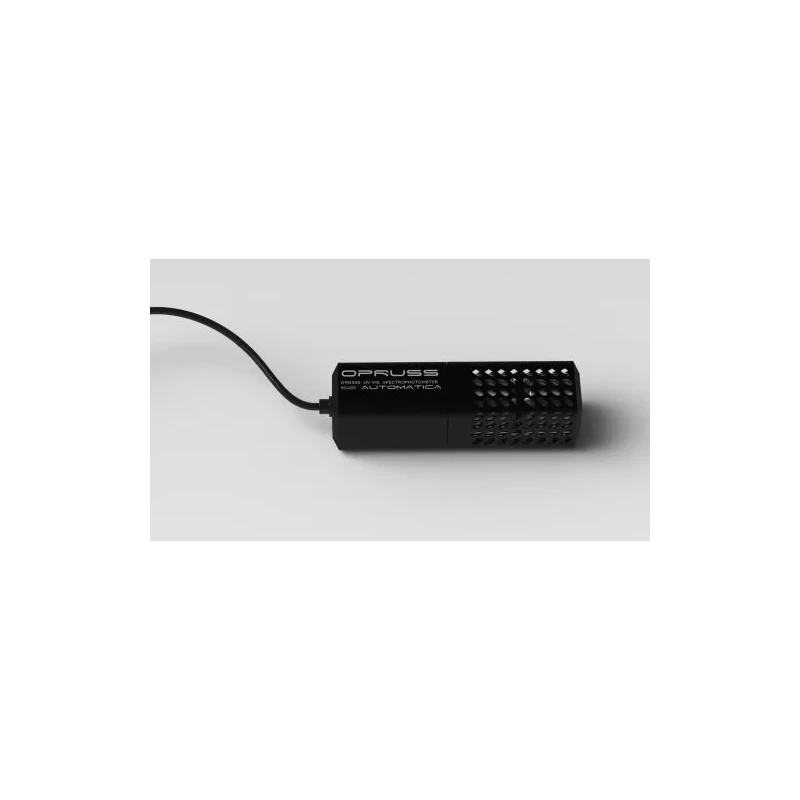

COD Online Monitoring Machine
Specifications
| Measurement Range | 200nm to 750nm Wavelength of light |
|---|---|
| Applications | STP ETP CETP CSTP |
| Operating Voltage (V) | AC 230V |
| Connectivity | Online |
| Features | Water matrix adaptation for 12 water matrices |
| Automation Type | Automatic |
| Measuring Principle | UV + VIS Spectrophotometer (Dual Beam Absorption Spectrophotometry) 200-350nm for Ultraviolet spec |
Key Features
- High performance
Product Description
COD Online Monitoring Machine Continuous Monitoring System is a tool that continuously measures and records actual data and information from an emissions source. The measured data is often used in real-time to operate the source and also demonstrate compliance with applicable regulationMeasurement MethodsUV + VIS Spectrophotometer (Dual Beam Absorption Spectrophotometry) 200-750nm for Ultraviolet spectrum scanning 320-750nm for Visible spectrum scanning*Measurement RangeCOD - 0-300mg/L expandable range ( Upto 1200 mg/L)Measurement Accuracy 5%Measurement Repeat - ability 5%Measurement IntervalT90 in One Second, Data output within 1 minuteResolution0.01mg/LCalibrationMulti point based automatic calibration. Standard calibration as per factory setting. Local calibration for adaptive environments. For COD compensation with respect to organics and inorganic proportionsWeight1.8 kgOperating & Storage Temperature5-45CPower230VAC10%, 50Hz, 60WOutputRS485Protection ClassIP68Cleaning MethodAdvanced conductive surface cleaningMOCOPM300 Titanium Quartz POM SS316L
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement range for COD is 0-300 mg/L, with an expandable range up to 1200 mg/L.
It operates at an AC voltage of 230V.
It uses a UV + VIS Spectrophotometer with dual beam absorption spectrophotometry for wavelengths from 200 to 750 nm.
The measurement accuracy is ±5%.
It supports online connectivity for continuous monitoring.
It has a measurement interval of T90 in one second, with data output within one minute.
The recommended cleaning method is advanced conductive surface cleaning.
The weight of this model is 1.8 kg.
It can operate and be stored in temperatures ranging from 5 to 45 degrees Celsius.
It is made from materials including Titanium, Quartz, POM, and SS316L.
It is suitable for applications in STP, ETP, CETP, and CSTP.
It features multi-point based automatic calibration, with standard calibration as per factory settings and local calibration for adaptive environments.
