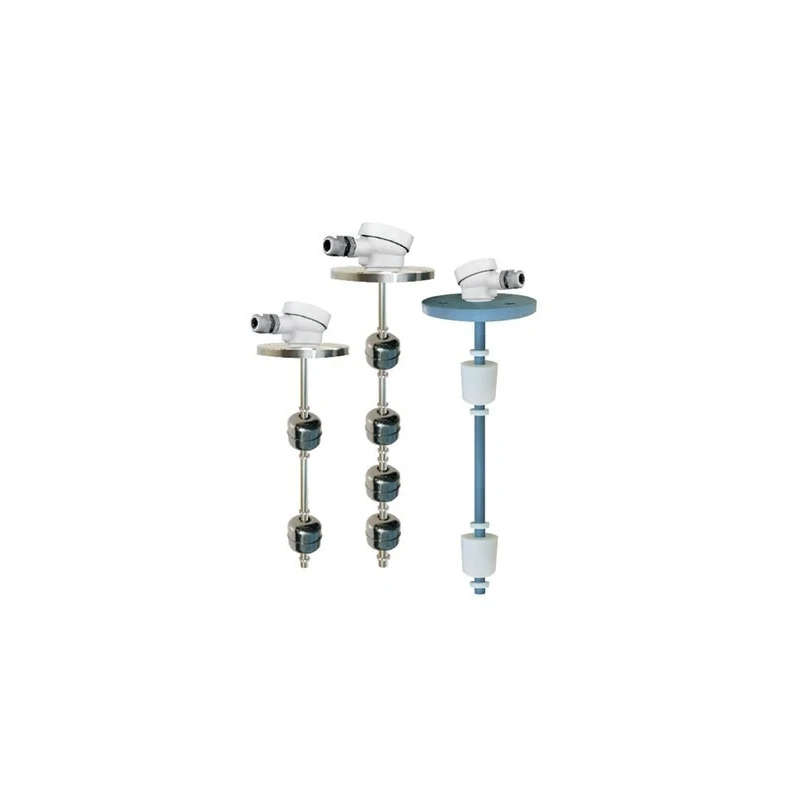

Magnetic Float Level Switch
Specifications
| Brand | LFIA |
|---|---|
| Power Supply | 24V DC |
| Applications | Diesel|Clean Water|Condensate Water |
| Operating Temperature | 0 deg. C - 100 deg. C (45 deg. C for PP) |
| MOC | SS 304 / SS 316 / PP |
| Connection | Flange / Threaded |
| Model | LFS3 |
| Operating Pressure | 4 kg / cm2 |
| Housing | Aluminium |
| Mounting Options | Top Mount |
| Process Temperature Max | 120 deg. C |
| Pipe Length | Upto 3000 mm |
| Switch Contact Rating | 0.5 Amp each |
Key Features
- Multiple point level switches in single level switch
- Employing to power actuate the reed switch requires no power
- These float level switches are more cost effective than other level switches in terms of multiple points
Product Description
Magnetic Float Level Switch units are housed tightly in SS or PP, and the permanent magnet is sealed into the middle of the specified float ball. They float up and down at the specified position by graduating rings.When the float internal magnet approaches the reed switch, it will actuate the reed switch contact point to create an open or closed circuit. Sensors are available in SS/PP moc & made in different lengths for single or multiple levels sensing of liquids. SS is used in food-grade and high-temperature applications.
- The housing protection is at least 1P65
- The reed switch and lead wire are isolated with liquids absolutely.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model requires a power supply of 24V DC.
The operating temperature range is from 0 deg. C to 100 deg. C, with a maximum of 45 deg. C for the PP material option.
It is available in SS 304, SS 316, and PP materials of construction.
The maximum operating pressure for this level switch is 4 kg/cm².
This model is suitable for applications involving diesel, clean water, and condensate water.
It offers top mount as the available mounting option.
The maximum pipe length for this model is up to 3000 mm.
The switch contact rating is 0.5 Amp each.
The housing is made of aluminium.
The maximum process temperature it can handle is 120 deg. C.
The switch operates by having a float with a permanent magnet that actuates a reed switch contact point to create an open or closed circuit as the float moves with the liquid level.
It can be connected using flange or threaded connections.
