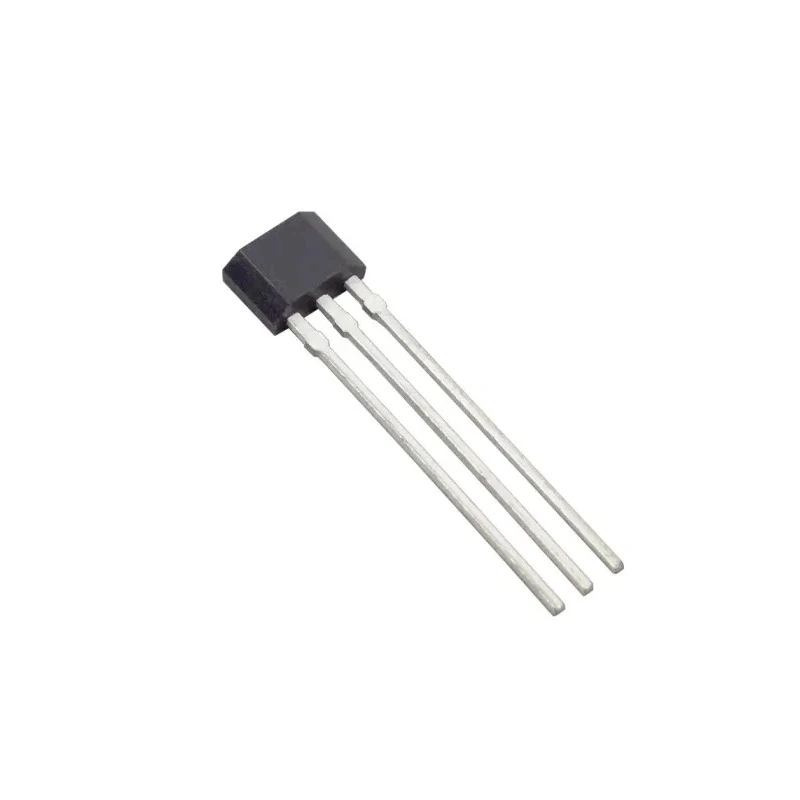

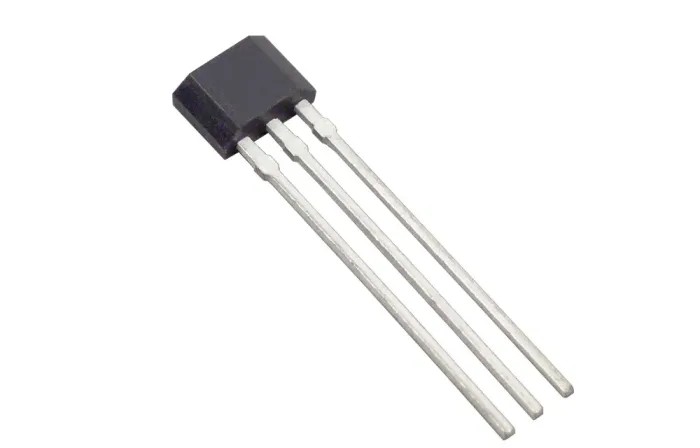

Melexis 1 Axis Through Hole Hall Effect Sensor 3.5V to 24V, 3-Pin MLX90217LUA-CAA-000-BU

Melexis MLX90217LUA-CAA-000-BU is a 1 Axis Through Hole Hall Effect Sensor designed for industrial and automotive applications requiring precise rotary position and speed sensing. It supports a wide operating voltage range from 3.5 V to 24 V, delivered in a compact 3-pin UA through hole mount package suitable for PCB assembly in various machinery.

This sensor features a self-adjusting magnetic range making it highly adaptable for automotive camshaft sensing and other speed sensing applications. Its robust design includes an open collector output with built-in short circuit protection, ensuring reliability and safety during operation even in harsh conditions.

The device operates over an extensive temperature range from -40°C to 150°C, facilitating its usage in demanding environments. The built-in on-chip 10-bit analog to digital converter enhances signal processing efficiency, providing precise digital output. The sensor’s orientation insensitivity and zero speed detection make it ideal for dynamic mechanical systems.

With a minimal supply current of 3mA, it offers energy-efficient performance without compromising accuracy or response speed. The device complies with RoHS and EN 60749-20 standards, aligning with environmental and electronic safety requirements.

Manufactured in Taiwan, Province Of China, the sensor reflects high manufacturing standards and quality control. It is widely used in industrial automation, automotive electronics, lab equipment, manufacturing machinery, and HVAC systems for motion and position sensing.

Provides digital output suitable for rotary position and speed sensing applications. Features self-adjusting magnetic range for precise measurement accuracy. Open collector output with short circuit protection enhances device safety.

Wide operating temperature range from -40°C to 150°C supports harsh environments. Compact 4.3mm width through hole mount package for easy PCB integration. Includes on-chip 10-bit A/D converter for efficient signal processing.

Insensitive to orientation with zero speed detection capability. Low supply current of 3mA ensures energy-efficient operation. Compliance with RoHS and EN 60749-20 standards guarantees environmental and safety compliance.

Manufactured in Taiwan, Province Of China, ensuring quality manufacturing standards. Explore more sensors and components at EnvMart for industrial, automotive, and laboratory electronics needs.
