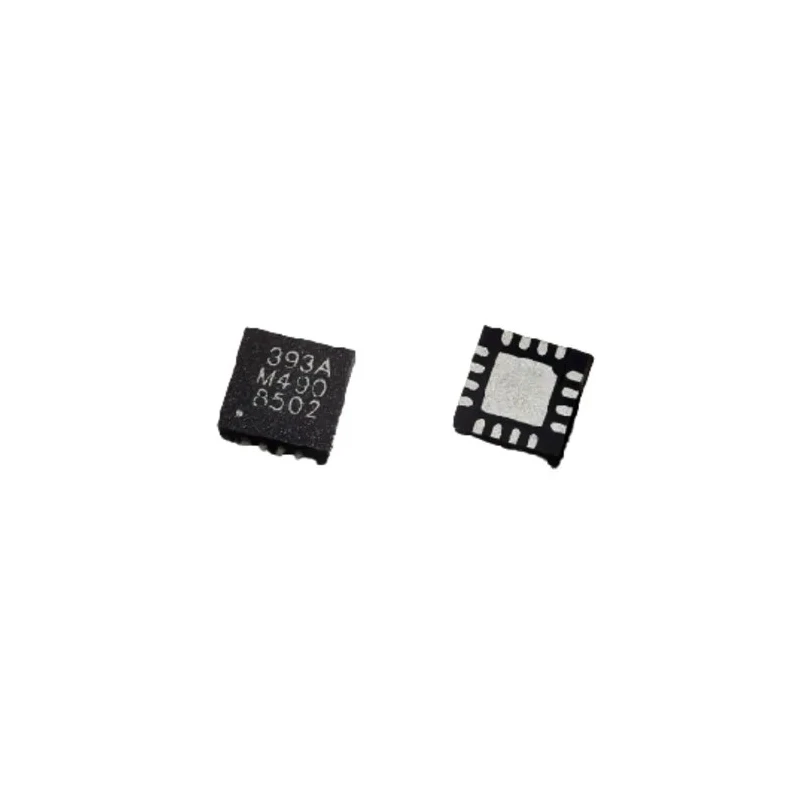

Melexis 3 Axis Surface Hall Effect Sensor 2.2 V to 3.6 V I2C/SPI Interface QFN 16-Pin MLX90393SLW-ABA-011-RE
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Melexis |
| Height | 800μm |
| Length | 2.9mm |
| Model | MLX90393SLW-ABA-011-RE |
| Technology | Hall Effect |
| Sensor Type | Hall Effect Sensors |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | MLX90393 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -20°C |
| Number of axis | 3 |
| Interface Type | I2C/SPI |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.2V |
Key Features
- Operates over a voltage range from 2.2 V to 3.6 V for micro power applications.
- Supports selectable SPI and I2C communication protocols.
- Compact QFN package size of 2.9 mm x 2.9 mm x 0.8 mm height.
- Features programmable duty cycles from 0.1% to 100% for configurable power consumption.
- Includes on-board temperature sensor and filter settings for robust operation.
- Wide dynamic range with on-the-fly programmable gain adjustment.
- Equipped with external and internal acquisition triggering modes and interrupt pin.
- Compliance with automotive standard AEC-Q100 and RoHS certified.
Product Description
Melexis MLX90393SLW-ABA-011-RE is a 3-axis surface mount Hall Effect sensor IC optimized for micro power applications, operating between 2.2 V and 3.6 V supply voltages. Packaged in a compact 16-pin QFN (Quad Flat No-lead) form factor measuring 2.9 mm by 2.9 mm by 0.8 mm height, this sensor offers high flexibility for integration into miniature assemblies.
The device supports selectable SPI and I2C interface protocols, enabling easy connectivity with various microcontrollers. Its programmable duty cycle ranges from 0.1% to 100%, providing configurable power consumption suited to application requirements. The sensor boasts a wide dynamic range with on-the-fly programmable gain and integrated filtering capabilities to improve measurement robustness against environmental noise.
Additional features include external and internal acquisition triggering, an external interrupt pin based on field changes, and an onboard temperature sensor that supports temperature compensation and monitoring. These characteristics ensure accurate and reliable magnetic field sensing across a broad temperature range from -20°C to 85°C.
Certified to the automotive AEC-Q100 reliability standard and compliant with RoHS directives, the MLX90393SLW-ABA-011-RE sensor is ideal for applications in automotive, industrial, and consumer electronics requiring precise magnetic sensing in compact form factors.
The sensor originates from Malaysia and is supplied in a 16-pin QFN package that facilitates surface mounting on printed circuit boards. Operates at low voltages from 2.2 V to 3.6 V supporting micro power designs. Programmable duty cycle with configurable power consumption.
Selectable I2C or SPI interface for versatile communication. Compact 2.9 mm square QFN 16-pin package suitable for miniature assemblies. On-board temperature sensor enables compensation and stable readings. Wide dynamic range with programmable gain and filtering.
External/internal triggering modes and interrupt pin for event detection. Meets automotive AEC-Q100 and RoHS standards ensuring quality and compliance. Operating temperature range from -20°C to 85°C suits harsh environments.
Explore the extensive range of Melexis sensor ICs and related electronics components on EnvMart to enhance your industrial or automotive designs with advanced magnetic sensing solutions.
Explore more products in our Hall Effect Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MLX90393SLW-ABA-011-RE operates over a voltage range from 2.2 V to 3.6 V, making it suitable for micro power applications.
This sensor supports selectable SPI and I2C communication protocols, allowing for versatile connectivity with various microcontrollers.
The QFN package of this sensor measures 2.9 mm x 2.9 mm with a height of 0.8 mm, making it compact for integration into small assemblies.
The operating temperature range for the MLX90393SLW-ABA-011-RE is from -20°C to 85°C, suitable for various environmental conditions.
Yes, it includes an onboard temperature sensor for temperature compensation and monitoring, as well as external and internal acquisition triggering modes.
This model is a 3-axis Hall Effect sensor, allowing it to measure magnetic fields in three dimensions.
The maximum supply voltage for the MLX90393SLW-ABA-011-RE is 3.6 V.
This sensor complies with the automotive standard AEC-Q100, ensuring it meets reliability requirements for automotive applications.
The minimum operating voltage for this Hall Effect sensor is 2.2 V.
The height of the MLX90393SLW-ABA-011-RE is 0.8 mm, which contributes to its compact design.
The MLX90393SLW-ABA-011-RE is RoHS certified, ensuring compliance with environmental standards.
This model uses surface mounting, which is suitable for integration into printed circuit boards.
