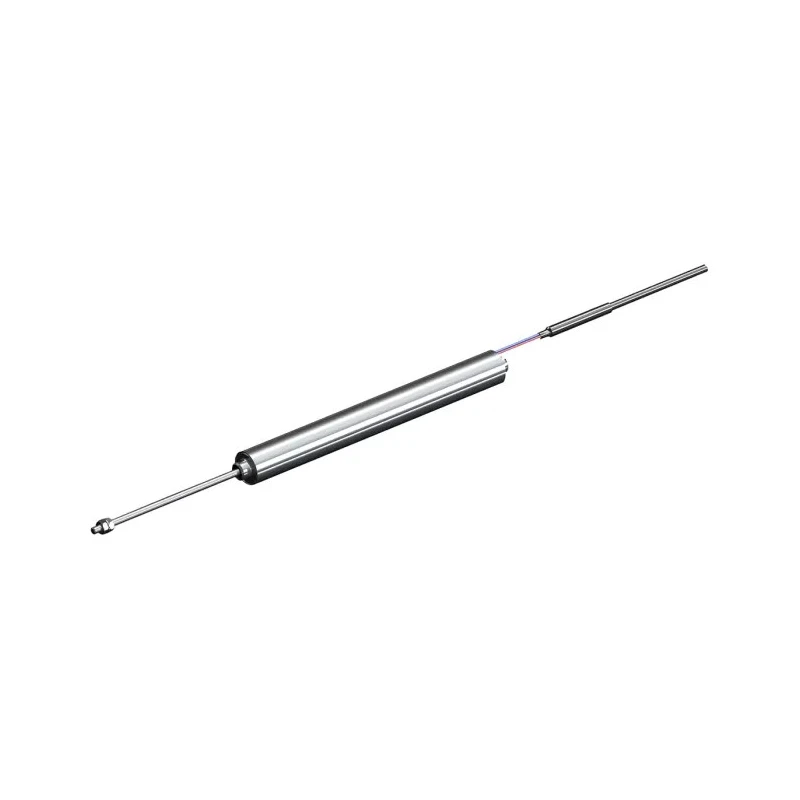

Solartron Metrology Optimum Series Linear Variable Differential Transformer LVDT Sensor 9.52mm Diameter 46.5mm Height 926228
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Solartron Metrology |
| Model | 926228 |
| IP Rating | IP43 |
| Series | Optimum |
| Maximum Operating Temperature | 150°C |
| Overall height | 46.5mm |
| Overall Depth | 9.52mm |
| 775-3877 | universal joints kit |
| 775-3871 | ball tip and adapter |
| 775-3880 | return spring |
| 775-3883 | return spring |
| 775-3887 | return spring |
| 775-3896 | return spring |
| Solartron Metrology Optimum Series LVDTBrand | Solartron Metrology |
Key Features
- The sensor body diameter is 9.52 mm, ideal for compact installations.
- Durable stainless steel case provides robustness and longevity.
- IP43 ingress protection ensures resistance to dust and moderate moisture.
- Capable of operating at temperatures up to 150°C safely.
- Offers infinite resolution, high accuracy, and excellent linearity without wear issues.
- Suitable for process control and research applications requiring reliable motion control sensing.
- Includes nickel iron movable core and three coils for energisation and pickup.
- Requires sine wave drive and phase-sensitive detector for output demodulation.
Product Description
Solartron Metrology 926228 is an Optimum Series Linear Variable Differential Transformer (LVDT) sensor engineered for high precision displacement measurement in industrial and research process control environments. With a compact 9.52 mm body diameter and an overall height of 46.5 mm, this sensor fits into confined spaces where accurate position sensing is critical.
Constructed with a stainless steel case, the sensor provides mechanical strength and corrosion resistance. Its IP43 rating offers protection against dust ingress and moisture, suitable for various industrial applications.
The device operates at temperatures up to 150°C, ensuring reliability in harsh thermal conditions. The LVDT uses a movable nickel iron core and a tri-coil configuration - including one energising coil and two pickup coils. This design allows for infinite resolution and outstanding linearity without introducing friction or wear-related errors common in potentiometer-based systems.
Ideal for motion control sensor applications, the sensor outputs an amplitude and phase signal proportional to the core’s position, which must be demodulated using a phase-sensitive detector driven by a sine wave. This enables accurate, real-time position feedback in a variety of automated and process control systems.
Accessory options are available to enhance sensor installation and performance, including universal joint kits (775-3877), ball tip adapters (775-3871), and several return springs (775-3880, 775-3883, 775-3887, 775-3896).
The sensor’s compact form factor allows deployment in limited space scenarios without sacrificing measurement range. Stainless steel casing provides excellent durability and environmental protection. High maximum operating temperature ensures suitability for demanding industrial environments.
Offers frictionless operation with no wear issues and infinite resolution for precise measurements. Widely used in industrial automation, laboratory instrumentation, manufacturing process control, and HVAC systems. The product’s United Kingdom origin guarantees manufacturing quality and standards adherence.
Supports a wide range of displacement measurements with optional accessories enhancing installation flexibility.
This Solartron Metrology Optimum Series LVDT Sensor is a reliable choice for engineers and technicians seeking precise displacement measurement solutions. Explore related products in the Motion Control Sensors category for complementary devices. EnvMart provides a comprehensive source to discover Solartron Metrology sensors and automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor has a diameter of 9.52 mm and an overall height of 46.5 mm, making it suitable for compact installations.
This LVDT sensor can operate at temperatures up to 150°C, ensuring reliability in high-temperature environments.
It has an IP43 rating, providing protection against dust ingress and moderate moisture, suitable for various industrial applications.
The sensor outputs an amplitude and phase signal that is proportional to the position of the movable core, which requires demodulation using a phase-sensitive detector.
The sensor features a durable stainless steel case, which provides mechanical strength and corrosion resistance.
Accessory options include a universal joints kit (775-3877), ball tip adapters (775-3871), and several return springs (775-3880, 775-3883, 775-3887, 775-3896).
It operates using a movable nickel iron core and a tri-coil configuration, allowing for infinite resolution and outstanding linearity without wear issues.
This model is widely used in industrial automation, laboratory instrumentation, manufacturing process control, and HVAC systems.
Infinite resolution allows for precise measurements without introducing friction or wear-related errors, which is common in potentiometer-based systems.
The sensor is manufactured in the United Kingdom, ensuring adherence to quality and standards.
It requires a sine wave drive for operation, along with a phase-sensitive detector for output demodulation.
The compact form factor allows for deployment in limited space scenarios without sacrificing measurement range, making it versatile for various installations.
