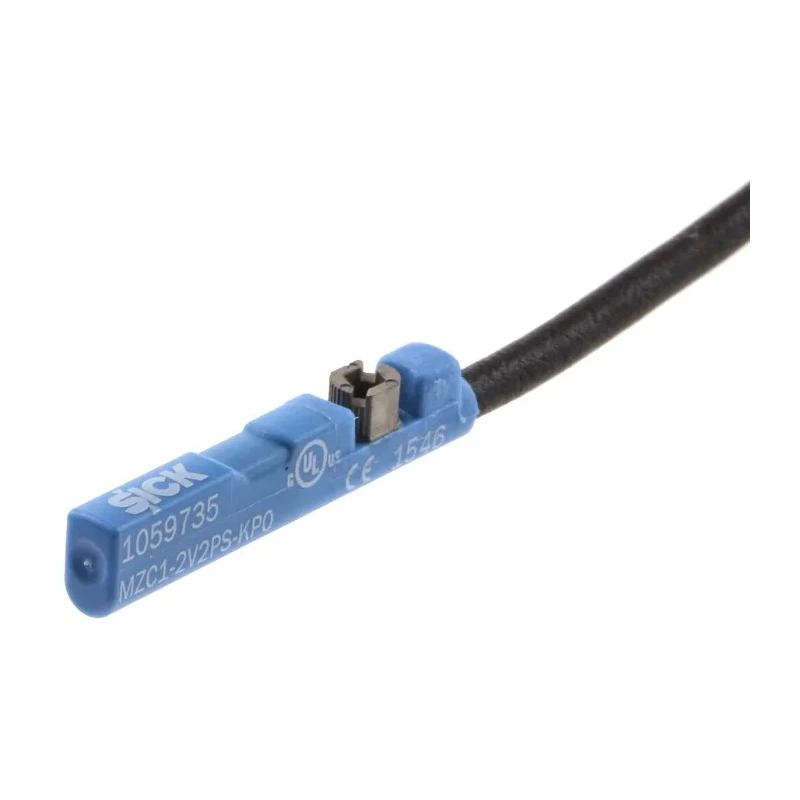

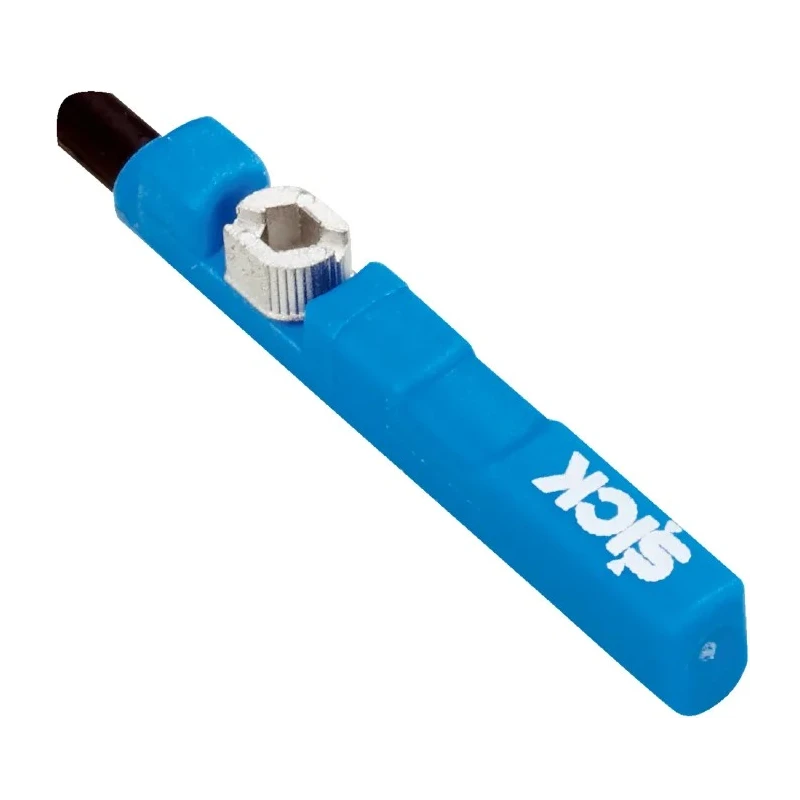

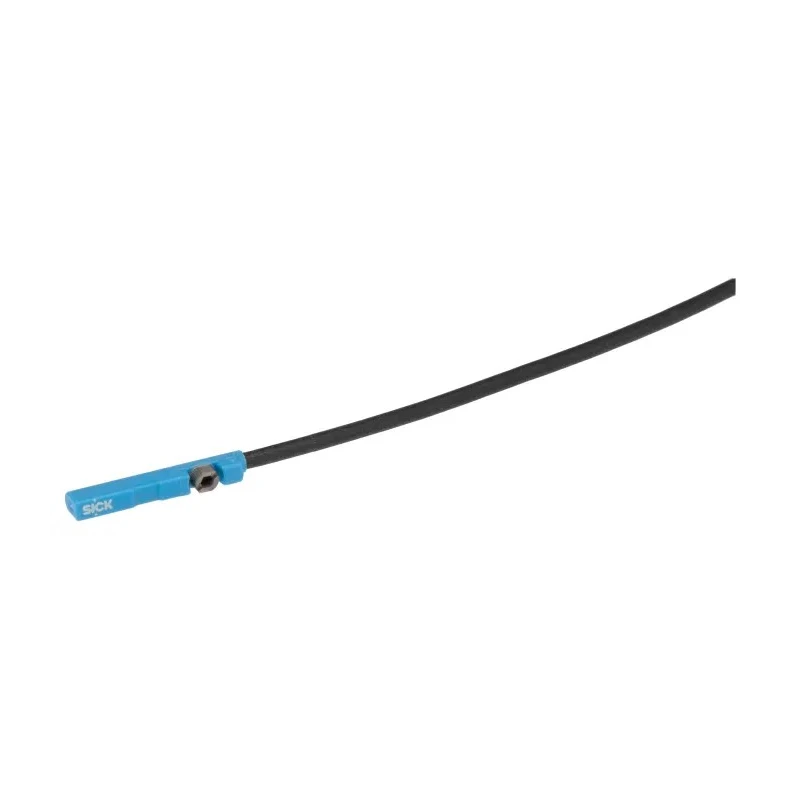

SICK Magnetic Pick Up Plastic Housing Barrel Style 30V AC/DC with Cable Terminal MZC1-2V2PS-KP0 / 1059735

SICK MZC1-2V2PS-KP0 / 1059735 Magnetic Pick Up Plastic Housing Barrel Style sensor operates on a 30V AC/DC supply and is engineered for industrial automation applications requiring precise piston position detection.

The sensor has a barrel body style with plastic housing providing IP68 protection, making it suitable for use in wet or submerged environments. Its three-wire DC supply with PNP switching and 1000Hz switching frequency enables fast and reliable cycle detection in dynamic pneumatic systems.

Designed for durability, the sensor withstands mechanical shocks up to 30g and vibrations in the 10 - 55 Hz range with 1mm amplitude. It features built-in protections including reverse polarity, short circuit, and power-up pulse suppression to enhance electrical fault resilience during commissioning and operation.

This magnetic pick-up sensor is ideal for position sensing on C-slot pneumatic cylinders, including integration with SMC CDQ2 and ECDQ2 rails. It is frequently used with profile or tie-rod cylinders to provide piston location feedback in industrial, manufacturing, and automation settings.

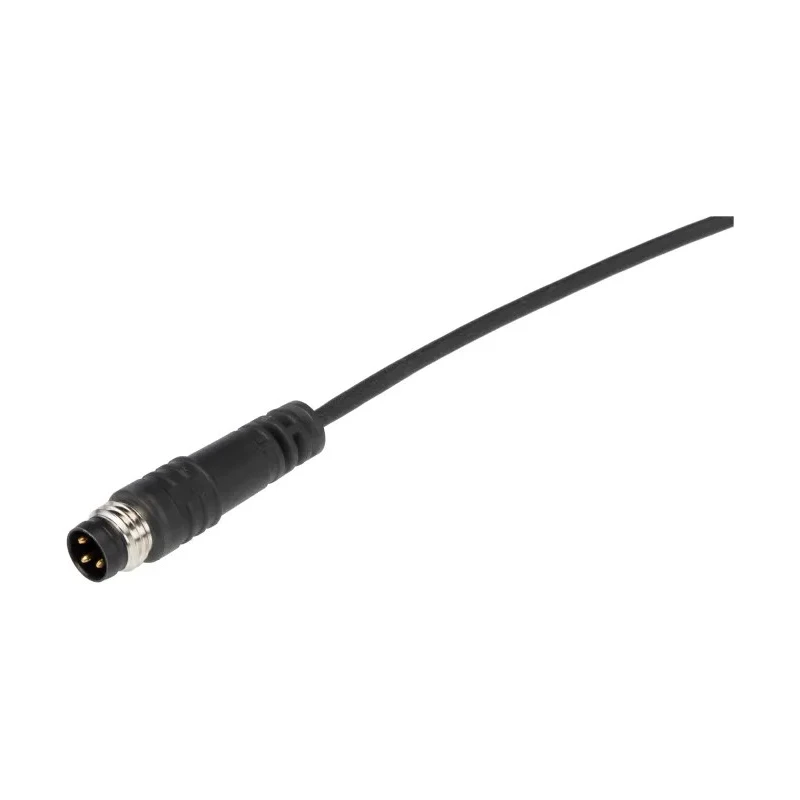

The sensor’s axial cable outlet with an M8, 3-pin connector on a 0.3m PUR cable ensures easy and secure electrical connections. Its operating temperature range from -30°C up to +80°C accommodates diverse industrial environments.

Operates with 10V - 30V DC supply supporting typical industrial voltages. Features PNP switching and switching frequency of 1000Hz for fast cycle detection. IP68 rated plastic housing suitable for use in wet or submerged conditions.

Wide operating temperature range from -30°C to +80°C. Typical response sensitivity of 2.2mT provides reliable magnetic actuation. Robust cable terminal with axial cable exit and 0.3m PUR cable with M8, 3-pin connector. Withstands mechanical shocks up to 30g and vibrations from 10 - 55 Hz at 1mm amplitude.

Built-in reverse polarity, short circuit, and power-up pulse suppression protections. Designed for position sensing on C-slot pneumatic cylinders and piston location feedback. Ideal for use in machines requiring waterproof sensors at elevated temperatures.

This sensor is well suited for industrial automation, manufacturing systems, pneumatic machinery, and electrical panels demanding compact, cable-connected, and waterproof sensors. Explore more sensors and motion control components in the Electronics & Electricals category on EnvMart for reliable industrial automation solutions.
