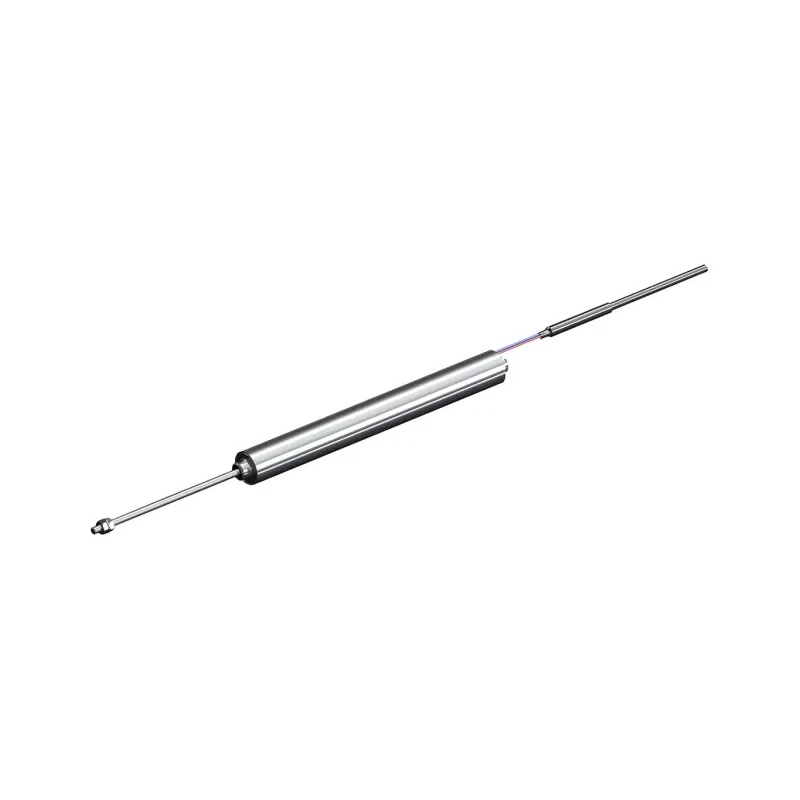

Solartron Metrology Optimum Series LVDT Sensor 9.52mm Diameter, IP43, Max Operating Temp 150°C 926226

Solartron Metrology 926226 Optimum Series LVDT sensor with 9.52mm diameter, IP43 ingress protection, and maximum operating temperature of 150°C is specially engineered for industrial process control and advanced research applications. Its compact stainless steel casing allows installation in space-constrained environments.

The Linear Variable Differential Transformer (LVDT) technology uses a movable nickel iron core and three coils to provide highly accurate and wear-free position sensing. The sensor requires a sine wave excitation and phase-sensitive detection to output signals directly proportional to core position, offering infinite resolution and exceptional linearity without introducing friction into the measured system.

This model supports a large radial bore clearance ideal for diverse mounting conditions. It has an overall height and width of 20.6mm with an overall depth of 9.52mm, making it suitable for precise measurement within tight spatial limitations.

The stainless steel body enhances durability and ensures long-term performance even under harsh operating conditions. Its IP43 rating protects against ingress of solid objects greater than 1mm and spraying water, making it reliable in industrial environments.

A variety of compatible accessories are offered including universal joints kit (775-3877), ball tip and adapter (775-3871), and several return springs (775-3880, 775-3883, 775-3887, 775-3896) to customize installation and application needs.

Manufactured in the United Kingdom, this sensor meets stringent quality standards and is designed for applications in automation, manufacturing, process control, and laboratory instrumentation.

High performance linear variable differential transformer sensor with stainless steel case. Compact size with 9.52mm body diameter suitable for limited spaces. Offers maximum operating temperature of 150°C for demanding environments.

Features large radial bore clearance for flexible mounting. IP43 ingress protection ensures resistance against dust and water spray. Provides accurate position measurement with no wear or friction issues. Available range of accessories including universal joints and return springs.

Manufactured in United Kingdom ensuring quality and reliability.

This sensor is ideal for use in industrial automation, process control systems, research laboratories, and manufacturing equipment. Browse the Electronics & Electricals category on EnvMart for more sensors and control gear.
